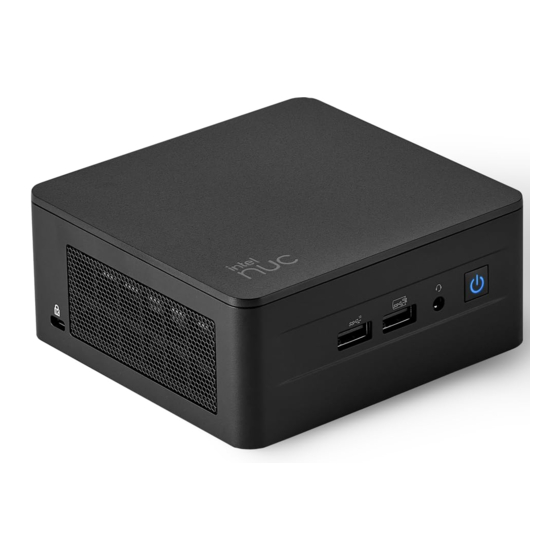

- Page 1 Intel® NUC 13 Pro Kit NUC13ANHv7 Intel® NUC 13 Pro Kit NUC13ANHi7 Intel® NUC 13 Pro Kit NUC13ANHv5 Intel® NUC 13 Pro Kit NUC13ANHi5 Intel® NUC 13 Pro Kit NUC13ANHi3 User Guide March 2023 NUC13ANH User Guide – March 2023...
- Page 2 You may not use or facilitate the use of this document in connection with any infringement or other legal analysis concerning Intel products described herein. You agree to grant Intel a non-exclusive, royalty-free license to any patent claim thereafter drafted which includes subject matter disclosed herein.
-
Page 3: Table Of Contents
Contents Introduction ............................... 5 Before You Begin ............................5 Installation Precautions ..........................6 Observe Safety and Regulatory Requirements ................. 6 Open the Chassis ............................7 Install and Remove System Memory ....................8 Install SO-DIMMs............................8 Remove SO-DIMMs ............................9 Install an M.2 SSD ............................. 10 Install a 2.5-inch SSD or Hard Drive .................... - Page 4 Revision History Date Revision Description March 2023 Initial release. NUC13ANH User Guide – March 2023...
-
Page 5: Introduction
Introduction This User Guide provides step-by-step installation instructions for these products: • Intel® NUC 13 Pro Kit NUC13ANHv7 • Intel® NUC 13 Pro Kit NUC13ANHi7 • Intel® NUC 13 Pro Kit NUC13ANHv5 • Intel® NUC 13 Pro Kit NUC13ANHi5 •... -
Page 6: Installation Precautions
Installation Precautions When you install and test the Intel NUC, observe all warnings and cautions in the installation instructions. To avoid injury, be careful of: • Sharp pins on connectors • Sharp pins on circuit boards • Rough edges and sharp corners on the chassis •... -
Page 7: Open The Chassis
Open the Chassis Unscrew the four corner screws on the bottom of the chassis and lift the cover. NUC13ANH User Guide – March 2023... -
Page 8: Install And Remove System Memory
Install and Remove System Memory Intel® NUC 13 Pro Kit NUC13ANH has two 260-pin DDR4 SO-DIMM memory slots Memory requirements: • 1.2V low voltage memory • 2400/2666/3200 MHz SO-DIMMs • Non-ECC • Up to 64GB of system memory supported with 2 SO-DIMMs using 32GB memory modules Find compatible system memory modules at the Intel®... -
Page 9: Remove So-Dimms
SO-DIMM until the retaining clips snap into place. Make sure the clips are firmly in place. Remove SO-DIMMs To remove a SO-DIMM, follow these steps: 1. Observe the precautions in "Before You Begin" in Section 1.1. 2. Turn off all peripheral devices connected to the computer. Turn off the computer. -
Page 10: Install An M.2 Ssd
Intel® NUC 13 Pro Kit NUC13ANH contains • one 80mm connector supporting NVMe and • one 42mm connector supporting SATA SSD Find compatible M.2 SSDs at the Intel® Product Compatibility Tool: • Intel® NUC 13 Pro Kit NUC13ANHv7 • Intel® NUC 13 Pro Kit NUC13ANHi7 •... - Page 11 If you’re installing a 42mm M.2 SSD: 1. Remove the small silver screw from the metal standoff on the motherboard (A). 2. Move the standoff (B) from the 80mm position to the 42mm position (C). 3. Align the small notch at the bottom edge of the M.2 card with the key in the connector.
-
Page 12: Install A 2.5-Inch Ssd Or Hard Drive
Install a 2.5-inch SSD or Hard Drive Intel® NUC 13 Pro Kit NUC13ANH supports an additional 2.5” SATA Solid State Drive (SSD) or Hard Disk Drive (HDD). Find compatible 2.5-inch SSDs at the Intel® Product Compatibility Tool: • Intel® NUC 13 Pro Kit NUC13ANHv7 •... -
Page 13: Close The Chassis
Close the Chassis After all components have been installed, close the Intel NUC chassis. Intel recommends this be done by hand with a screwdriver to avoid over-tightening and possibly damaging the screws. NUC13ANH User Guide – March 2023... -
Page 14: Use The Vesa Bracket (Optional)
1. Using the four small black screws that were included in the box, attach the VESA bracket to the back of the monitor or TV. 2. Attach the two slightly larger black screws to the bottom chassis cover of the Intel NUC. NUC13ANH User Guide – March 2023... - Page 15 3. Slide the Intel NUC onto the VESA mount bracket. NUC13ANH User Guide – March 2023...
-
Page 16: Connect Power
Connect Power Each Intel NUC model includes either a region-specific AC power cord or no AC power cord (only the power adapter). Product codes Power cord type RNUC13ANHV70000 No power cord included. An AC power cord RNUC13ANHI70000 needs to be purchased separately. Power cords... -
Page 17: Install An Operating System
Install an Operating System Supported Operating Systems for a list of Intel-validated operating systems. Refer to Operating System Installation for system requirements and installation steps. NUC13ANH User Guide – March 2023... -
Page 18: Install The Latest Device Drivers And Software
Here are the options for keeping device drivers current: • Allow the to detect out-of- Intel® Driver & Support Assistant (Intel® DSA) date drivers • Manually download drivers, BIOS, and software from Download Center: Intel® NUC 13 Pro Kit NUC13ANHv7 Intel®...
