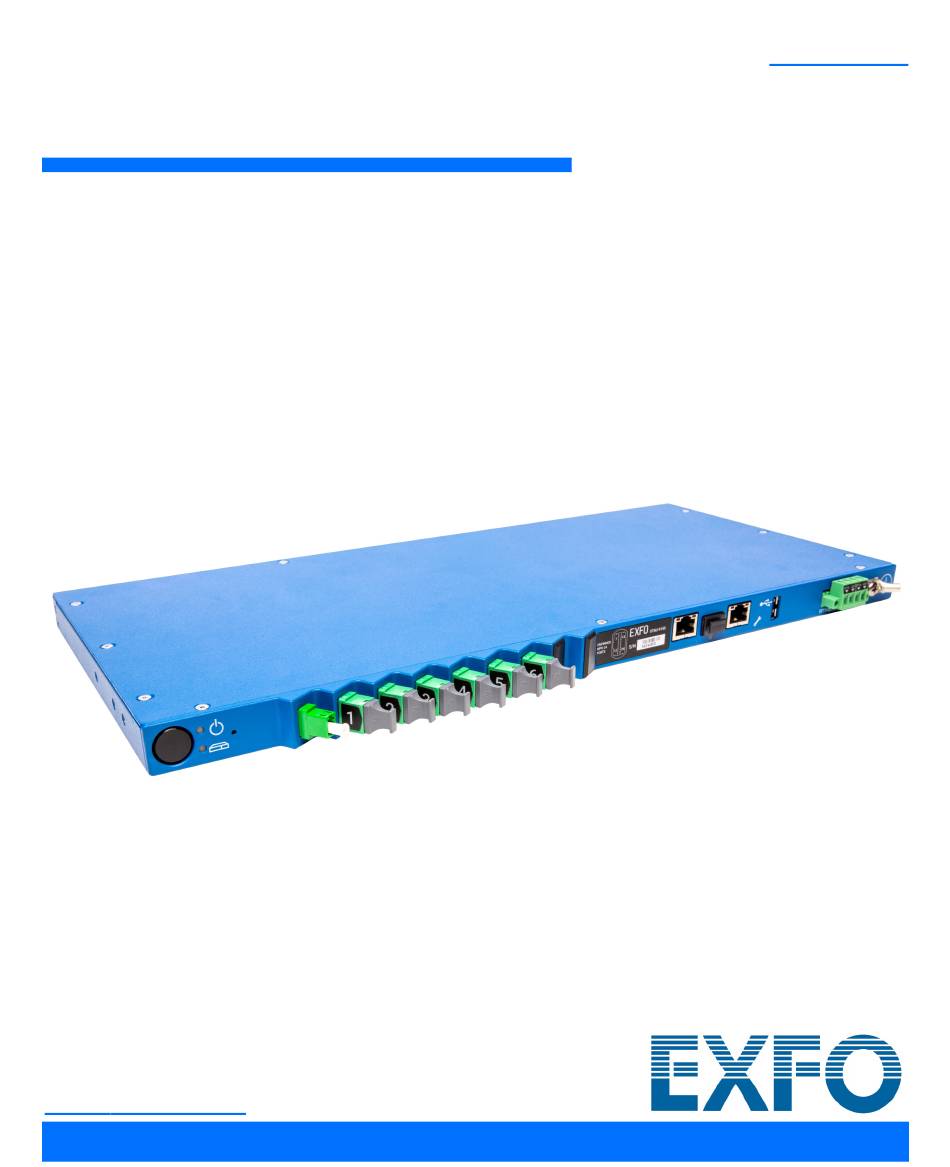

  • Page 1 User Guide OTAU-9150 www.EXFO.com...
  • Page 2 EXFO Inc. (EXFO). Information provided by EXFO is believed to be accurate and reliable. However, no responsibility is assumed by EXFO for its use nor for any infringements of patents or other rights of third parties that may result from its use.

  • Page 3: Table Of Contents

    Contents Contents Regulatory Information ......................v 1 Introducing the OTAU-9150 ................. 1 Main Features .........................1 Available Configurations ......................2 LED Indicators Description ......................4 Product Registration .......................6 Technical Specifications ......................6 Conventions ..........................7 2 Safety Information ..................9 Other Safety Symbols on Your Unit ..................11 Electrical Safety Information ....................12...
  • Page 4 Retrieving Logs ........................65 Contacting the Technical Support Group ................67 Transportation ........................67 6 Warranty ......................69 General Information ......................69 Gray Market and Gray Market Products ................70 Liability ..........................71 Exclusions ..........................71 Certification ..........................71 Service and Repairs .......................72 EXFO Service Centers Worldwide ..................73 Index .........................75 OTAU-9150...

  • Page 5: Regulatory Information

    USA Electromagnetic Interference Regulatory Statement Electronic test and measurement equipment is exempt from FCC part 15, subpart B compliance in the United States of America. However, EXFO Inc. makes reasonable efforts to ensure compliance to the applicable standards. The limits set by these standards are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 6 Utilisé également pour indiquer les limites d'émission correspondantes qui s'appliquent à un tel matériel. Class B equipment: Equipment that cannot be classified as Class A  shall comply with the Class B limits specified in the applicable ICES standard. OTAU-9150...
  • Page 7 à des fins d’examen ou d’analyse ou pour le transfert d’énergie électromagnétique. Supplier’s Declaration of Conformity (SDoC) The SDoC for your product is as follows: CAN ICES-001 (A) / NMB-001 (A) OTAU-9150...
  • Page 8 Your product is suitable for use in industrial electromagnetic environments. Simplified EU and UK Declaration of Conformity The full text of the declaration of conformity is available at the following Internet address: www.exfo.com/en/resources/legal-documentation. EU Economic Operator EXFO Solutions SAS 2, rue Jacqueline Auriol,...

  • Page 9: Introducing The Otau-9150

    Introducing the OTAU-9150 The OTAU-9150 is a remote optical switch that you can use in conjunction with Nova Fiber Monitoring System (FMS). When you work with FMS, you can program tests or perform them on demand. FMS is the central management software for all EXFO's fiber monitoring probes such as the OTH-7000, FG-750, and RTU-2.

  • Page 10: Available Configurations

    Introducing the OTAU-9150 Available Configurations Available Configurations Several configurations are available for the OTAU-9150. All configurations come with a LAN/WAN port and an SFP port for an optional SFP module. Configuration Features OTAU-9150-1-04-B-104 Duplex remote OTAU  Four (4) LC-APC output ports ...
  • Page 11 Introducing the OTAU-9150 Available Configurations Front panel (16-port model shown) On/Off button LEDs SFP port and status LED Ethernet (RJ-45) management port for local access (to connect a portable computer to the unit) Ethernet (RJ-45) port (for LAN/WAN connection) USB host port...

  • Page 12: Led Indicators Description

    The temperature of the room where the unit is located could be slightly too high or there could be a hardware malfunction. Ensure that the temperature falls within the specified operating temperature range (see Electrical Safety Information on page 12). If the problem persists, contact EXFO. OTAU-9150...
  • Page 13 Ensure that the temperature falls within the (continued) specified operating temperature range (see Electrical Safety Information on page 12). If the problem persists, contact EXFO. Unit is off. Green A communication link has been established through the SFP transceiver module.

  • Page 14: Product Registration

    Introducing the OTAU-9150 Product Registration Product Registration You can register your new EXFO products online and benefit from every possible opportunity to optimize their performance. By doing so, you will always be notified of the latest software updates, key product enhancements and up-to-date support information related to your products.

  • Page 15: Conventions

    Introducing the OTAU-9150 Conventions Conventions Before using the product described in this guide, you should understand the following conventions: ARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Do not proceed unless you understand and meet the required conditions.

  • Page 17: Safety Information

    ARNING Use only accessories designed for your unit and approved by EXFO. For a complete list of accessories available for your unit, refer to its technical specifications or contact EXFO.
  • Page 18 Make sure to read them carefully when they apply to your situation. ARNING Use only the pluggable transceivers specified for your product and approved by EXFO. Refer to the technical specifications of your product for the list of approved transceivers and ordering codes. OTAU-9150...

  • Page 19: Other Safety Symbols On Your Unit

    Direct current Alternating current The unit is equipped with an earth (ground) terminal. The unit is equipped with a protective conductor terminal. The unit is equipped with a frame or chassis terminal. On (Power) Off (Power) On/off (Power) Fuse OTAU-9150...

  • Page 20: Electrical Safety Information

    (AC or DC circuits). The power cord of the AC/DC power adapter can be considered the disconnect device to the main power. If you intend to connect your OTAU-9150 to AC power, use only  the listed and certified AC/DC power adapter provided by EXFO with your unit.
  • Page 21 Measured in 0 °C to 31 °C (32 °F to 87.8 °F) range, decreasing linearly to 50 % at 40 °C (104 °F). Not exceeding ± 10 % of the nominal voltage. Range: –38.5 - –70 V. AUTION The use of voltages higher than those indicated on the label affixed to your unit may damage the unit. OTAU-9150...

  • Page 23: Getting Started With Your Unit

    The location is isolated from strong electromagnetic fields produced by  electrical devices. The power cable and power supply are compatible with your power  service. The power source is properly grounded and falls within the internal  power supply rating. OTAU-9150...

  • Page 24: Installing Your Unit In A Rack

    Failure to provide adequate clearance from hot surfaces may result in an excessive internal temperature, thus reducing the reliability of your OTAU-9150 unit. Note: There is no need to leave an empty slot between units when you stack them one on top of the other inside a rack.
  • Page 25 MPORTANT The OTAU-9150 is only half a unit high. To maximize the utilization of rack space in 19-inch racks, EXFO recommends to alternate the position of the brackets for each unit. The brackets should be placed with their rack screw holes at the bottom for the first unit, at the top for the second, at the bottom for the next unit, and so on (see illustrations hereafter).
  • Page 26 You can even invert position of the mounting bracket if necessary. Brackets in standard position - 19-inch racks Rack screw holes at the bottom Rack screw holes Rack screw holes at the top Brackets in standard position - ETSI racks OTAU-9150...
  • Page 27 Getting Started with Your Unit Installing Your Unit in a Rack Brackets in inverted position - 19-inch racks Rack screw holes at the bottom Rack screw holes Rack screw holes at the top Brackets in inverted position - ETSI racks OTAU-9150...
  • Page 28 To ground your unit properly, you must ensure that there is a metal-to-metal contact between the rack and the mounting hardware. For this reason, EXFO recommends to use thread-forming screws, star (tooth) lock washers, or similar hardware that remove any paint or non-conductive coatings.

  • Page 29: Grounding Your Unit

    4. Ground the other end of the wire as per your local regulation. Your unit is now grounded properly. Note: For particular installation needs, you can attach your own grounding lug and wire to the back panel of the unit (to the corresponding holes) instead. OTAU-9150...

  • Page 30: Working With An Sfp Transceiver Module

    Nova Fiber application (see Working With Your Unit for the First Time on page 33). To insert an SFP transceiver module into your unit: 1. Ensure that your unit is off. 2. Slide the transceiver module into the corresponding port. OTAU-9150...

  • Page 31: Connecting Your Unit To A Power Source

    To avoid fire hazards and ensure your safety, when you intend  to connect your unit to DC power, always select a wire gauge according to the OTAU-9150 unit’s ratings, cable length, and local electrical code. AUTION For optimum performance and safety, you must either crimp a terminal (ferrule) onto the stranded conductors, or tin them before installing them in the terminal block.
  • Page 32 3. Unscrew the two screws holding the terminal block in place. Screws 4. When the terminal block is loose, gently pull it toward you to remove it, exposing the electrical connectors. 5. Crimp each power lead (maximum 14 AWG) with a terminal (ferrule) or tin each of them. OTAU-9150...
  • Page 33 6. Unscrew the four screws (shown in gray) located at the top of the terminal block. 7. Pair the power leads with the appropriate power terminal for each of the feed, respecting the polarity as indicated on the terminal block. Second feed First feed OTAU-9150...
  • Page 34 10. Slide the terminal block all the way into the bay until it stops. 11. Screw the two screws to secure the terminal block in place. 12. Turn on the disconnect device that is connected to the unit. The unit will start automatically. OTAU-9150...
  • Page 35 3. If necessary, remove the block terminal (shown in gray below) as follows: 3a. Unscrew the two screws holding the terminal block in place. Screws 3b. When the terminal block is loose, gently pull it toward you to remove it, exposing the electrical connectors. OTAU-9150...
  • Page 36 7. Ensure that the removable power cord is connected to the other end of the AC/DC power adapter, and then connect the adapter to the power outlet. 8. If necessary, turn on the disconnect device. The unit will start automatically. OTAU-9150...

  • Page 37: Turning On Your Unit

    Turning on Your Unit Turning on Your Unit Before you turn on the unit for the very first time, EXFO recommends that you read the safety and installation instructions, including how to connect the unit to AC or DC power.

  • Page 38: Turning Off Your Unit

    AUTION To avoid damaging your unit when you need to disconnect it from its external power source, first turn the unit off. To turn off the unit completely from the unit itself: Press the on/off button. OTAU-9150...
  • Page 39 The application will lock your account after a certain number of unsuccessful connection attempts. Before entering your connection information again, you will have to wait a few minutes. The waiting time starts increasing after the fifth unsuccessful connection attempt up to a maximum of fifteen minutes. OTAU-9150...
  • Page 40 Getting Started with Your Unit Turning off Your Unit 5. From the list, select Administration. 6. Click the Restart device or the Turn off device button, depending on the operation that you want to perform. OTAU-9150...

  • Page 41: Working With Your Unit For The First Time

    Working With Your Unit for the First Time Working With Your Unit for the First Time By starting to use your unit, you implicitly agree to the EXFO and third-party EULAs related to your unit and instruments. You will need a computer (laptop) and a network cable to connect to your OTAU-9150 unit.
  • Page 42 5. From your computer, open a Web browser and type 169.254.10.10 in the address bar to access the Nova Fiber application. Note: It may take a few seconds before you can see the Nova Fiber application if your computer needs to reconfigure its network to a link-local address first. OTAU-9150...
  • Page 43 The password must have a minimum of eight characters and include characters from at least three of the following categories: Lowercase letters (‘a’ - ‘z’)  Uppercase letters (‘A’ - ‘Z’)  Numbers (0 - 9)  Special characters  OTAU-9150...
  • Page 44 Getting Started with Your Unit Working With Your Unit for the First Time 8. Configure the network as follows: 8a. From the list, select Network. OTAU-9150...
  • Page 45 8b. Set the IP address and various parameters as needed, and then click Apply to confirm. Note: You can access the SFP parameters by clicking the arrow next to the currently displayed adapter. To access the parameters of other network adapters To confirm the changes OTAU-9150...
  • Page 46 9b. By default, the application sets the date and time values to those of the Web browser you are currently using, but you can change them as needed. You can set the date and time manually or use an NTP server. Click Apply to confirm. OTAU-9150...
  • Page 47 10b.Click Add to add a trusted certificate to the list. The certificate file that you provide must be in PEM format. To delete a specific trusted certificate from your unit To delete all trusted certificates from your unit 10c. Follow the instructions on screen. OTAU-9150...
  • Page 48 Note: Refer to the Nova Fiber FMS Readme for the complete compatibility information. 11a.From the list, select Firmware. 11b.Click Check for updates. Note: Your unit must have access to an Internet connection to be able to download updates and install them. OTAU-9150...
  • Page 49 Note: The update operation may take a few minutes to complete. Note: After a successful connection between FMS and your unit, FMS will provide the updates if your unit is running a compatible version. 12. Select the operating mode as follows: 12a.From the list, select Operating mode. OTAU-9150...
  • Page 50 Getting Started with Your Unit Working With Your Unit for the First Time 12b.Ensure that Nova Fiber is selected. 12c. Click Apply to confirm. 13. Connect your unit to FMS as follows: 13a.From the list, select Operating mode. OTAU-9150...
  • Page 51 13b.In the Nova Fiber FMS box, enter the name of your FMS server (ex.: abc.fms.your_company.com). 13c. If your system is configured so that FMS requires the authentication of all OTAU-9150 units, click Request device certificate. If FMS does not require the authentication of the OTAU-9150 units, go directly to step 13e. OTAU-9150...
  • Page 52 “Not configured” to “Connecting” to “Established”. If any connection problem occurs, the application will display “Connecting” along with the last error, and the OTAU-9150 will periodically try to reconnect to the FMS server. Note: If you need to detach your unit from the link, you can click Disconnect. At this point, since there are no monitoring data acquired so far, no data can be lost.
  • Page 53 Working With Your Unit for the First Time 14. If you need to define a login banner, you can do so as follows: 14a.From the list, select Administration. 14b.Select the Enable banner check box. 14c. Enter the desired text, and then click Apply to confirm. OTAU-9150...
  • Page 54 15a.Select the Enable remote management on LAN/WAN check box. Note: The remote management will be enabled both on the LAN/WAN Ethernet port and SFP transceiver. 15b.Click Apply to confirm. Your OTAU-9150 unit is now configured properly. OTAU-9150...

  • Page 55: Maintenance

    ARNING The use of controls, adjustments and procedures, namely for operation and maintenance, other than those specified herein may result in hazardous radiation exposure or impair the protection provided by this unit. OTAU-9150...

  • Page 56: Cleaning Sc Or Lc Connectors

    1. Insert the mechanical cleaner into the optical adapter, and push the outer shell into the cleaner. Note: The cleaner makes a clicking sound that indicates that the cleaning is done. 2. Verify connector surface with a fiber inspection probe (for example, EXFO’s FIP). OTAU-9150...

  • Page 57: Cleaning And Inspecting Mpo-Type Connectors

    If your unit is equipped with MPO ports (connectors), you can clean them using a multifiber mechanical cleaner. You can inspect these connectors using a fiber inspection scope supporting MPO connector configurations (for example, EXFO’s FIP-500). ARNING Never look directly into a live fiber. It could cause serious eye damage.

  • Page 58: Accessing Your Unit Locally

    Accessing Your Unit Locally You will need a computer (laptop) and a network cable to connect to your OTAU-9150 unit. To access your unit locally: 1. If it is not already done, connect one end of a network cable to the management port of your unit and the other end to an Ethernet port on the computer.

  • Page 59: Accessing Your Unit Remotely

    1. Ensure that the unit is reachable with your computer. 2. On your computer, open a Web browser of your choice. 3. Type https://<IP_address_of_your_unit>. Note: The unit uses a self-signed certificate, which could cause Web browsers to display a message about security issues. OTAU-9150...

  • Page 60: Changing The Administrator Password

    By default, the administrator user account (user name: localadmin), is protected with the admin password. For security reasons, EXFO recommends that you change the default password for a password of your choice after the first connection, and then periodically, according to your own security policy.
  • Page 61 Lowercase letters (‘a’ - ‘z’)  Uppercase letters (‘A’ - ‘Z’)  Numbers (0 - 9)  Special characters  5. Click Update to confirm. The new password is taken into account immediately. OTAU-9150...

  • Page 62: Upgrading The Firmware

    Damaged units will need to be sent back to EXFO for repair. The upgrade could take several minutes to complete. Your unit ...
  • Page 63 The unit will restart automatically at the end. 7. Wait for your unit to be ready (its (System) LED will be steady green), and then connect again to the Web application. Note: The update operation may take a few minutes to complete. OTAU-9150...

  • Page 64: Updating Your Unit With Local Firmware

    Damaged units will need to be sent back to EXFO for repair. The update could take several minutes to complete. Your unit ...
  • Page 65 Updating Your Unit With Local Firmware To update your unit with local firmware: 1. Retrieve both the .LIP and .LIS files provided by EXFO to a folder of your choice on your computer (or to a USB key). 2. Connect to your unit, either locally or remotely. For more information, see Accessing Your Unit Locally on page 50 or Accessing Your Unit Remotely on page 51.

  • Page 66: Recycling And Disposal

    This symbol on the product means that you should recycle or dispose of your product (including electric and electronic accessories) properly, in accordance with local regulations. Do not dispose of it in ordinary garbage receptacles. For complete recycling/disposal information, visit the EXFO Web site at www.exfo.com/recycle. OTAU-9150...

  • Page 67: Troubleshooting

    Troubleshooting Solving Common Problems Before calling EXFO’s technical support, you may want to consider the following solutions to problems that could occur. Problem Possible Cause Solution My unit does not start. There is a problem related If your unit is connected ...

  • Page 68: Restoring Your Unit To Normal Operation

    DO NOT TURN OFF your unit while the recovery operation is underway. Doing so may severely damage your unit. Damaged units will need to be sent back to EXFO for repair. You can perform this operation from the Nova Fiber application or manually, especially if you cannot access the Nova Fiber application.
  • Page 69 Troubleshooting Restoring Your Unit to Normal Operation 3. From the list, select Administration. 4. Click Restore device to factory state. OTAU-9150...
  • Page 70 6. Configure your unit as you did when you first received it. However, use the following credentials to establish a connection: User name: admin  Password: admin  For more information, see Working With Your Unit for the First Time on page 33. OTAU-9150...
  • Page 71 LED becomes steady green. Note: The restoring process may take a few minutes to complete. 5. Configure your unit as you did when you first received it (see Working With Your Unit for the First Time on page 33). OTAU-9150...

  • Page 72: Accessing The User Documentation

    You can access the user documentation in PDF format at all times from your unit. Note: The user guides of all products are also available from the My EXFO section of the EXFO Web site (www.exfo.com) for download in PDF format.

  • Page 73: Retrieving Logs

    OTAU-9150 unit. The system log that provides special information that you can send to  the technical support team at EXFO for further analysis. To retrieve logs: 1. Connect to your unit, either locally or remotely. For more information, see Accessing Your Unit Locally on page 50 or Accessing Your Unit Remotely on page 51.
  • Page 74 The Debug level should be used temporarily as it can slow down the system. EXFO recommends to set the level back to Warning once the debug operation is complete.

  • Page 75: Contacting The Technical Support Group

    Contacting the Technical Support Group To obtain after-sales service or technical support for this product, contact EXFO at one of the following numbers. The Technical Support Group is available to take your calls from Monday to Friday, 8:00 a.m. to 7:00 p.m.

  • Page 77: Warranty

    Warranty General Information EXFO Inc. (EXFO) warrants this equipment against defects in material and workmanship for a period of one year from the date of original shipment. EXFO also warrants that this equipment will meet applicable specifications under normal use.

  • Page 78: Gray Market And Gray Market Products

    (hereafter unauthorized intermediary). EXFO considers that a product originates from the gray market (hereafter gray market product) in the following situations: A product is sold by an unauthorized intermediary.

  • Page 79: Liability

    Liability Liability EXFO shall not be liable for damages resulting from the use of the product, nor shall be responsible for any failure in the performance of other items to which the product is connected or the operation of any system of which the product may be a part.

  • Page 80: Service And Repairs

    5. Return the equipment, prepaid, to the address given to you by support personnel. Be sure to write the RMA number on the shipping slip. EXFO will refuse and return any package that does not bear an RMA number.

  • Page 81: Exfo Service Centers Worldwide

    Fax: +86 (755) 2955 3101 Xintian Avenue, support.asia@exfo.com Fuhai, Bao’An District, Shenzhen, China, 518103 To view EXFO's network of partner-operated Certified Service Centers nearest you, please consult EXFO's corporate website for the complete list of service partners: http://www.exfo.com/support/services/instrument-services/ exfo-service-centers. OTAU-9150...

  • Page 83: Index

    Nova Fiber ......... 52 installing unit to AC power ......23, 27 software..........54 unit to DC power ......23, 24 unit in rack........16, 17 conventions, safety ........7 unit, requirements ......... 12 current, electrical ........13 customer service.......... 72 OTAU-9150...
  • Page 84 LED ............4 service centers ..........73 online help ..........64 orange LED............ 4 installing ..........22 OTAU-9150, installing ......... 17 LED ............5 port and LED location ......3 shipping to EXFO......... 72 shutdown mode .......... 30 password, changing ........52 single-fiber cleaner ........
  • Page 85 USB ports ............3 user guides..........64 ventilation ........... 12 warranty certification ........... 71 exclusions ..........71 general ..........69 liability ........... 71 null and void.......... 69 working with a transceiver module ......10 an SFP............ 22 yellow LED............. 4 OTAU-9150...
  • Page 88 · info@EXFO.com CORPORATE HEADQUARTERS 400 Godin Avenue Quebec (Quebec) G1M 2K2 CANADA Tel.: 1 418 683-0211 · Fax: 1 418 683-2170 TOLL-FREE (USA and Canada) 1 800 663-3936 © 2023 EXFO Inc. All rights reserved. Printed in Canada (2023-05)
