Summary of Contents for AEMC WIRE MAPPER PRO CA7028

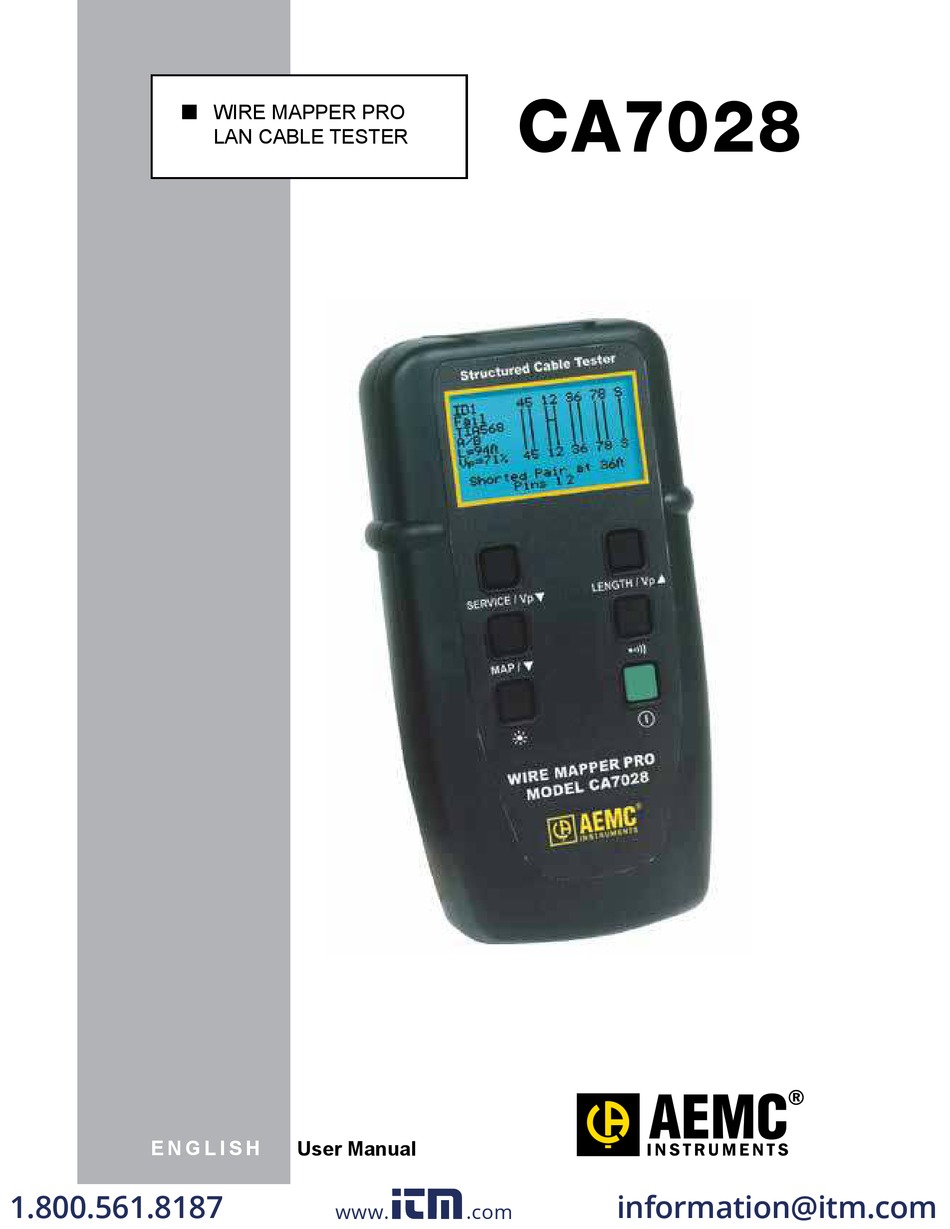

- Page 1 CA7028 WIRE MAPPER PRO LAN CABLE TESTER E N G L I S H User Manual 1.800.561.8187 information@itm.com www. .com...
- Page 2 The recommended calibration interval for this instrument is 12 months and begins on the date of receipt by the customer. For recalibration, please use our calibration services. Refer to our repair and calibration section at www.aemc.com. Serial #: ________________________________ Catalog #: 2127.82 Model #: CA7028 Please fill in the appropriate date as indicated:...
-
Page 3: Table Of Contents
Table of Contents 1. INTRODUCTION ................ 2 1.1 International Electrical Symbols .............2 1.2 Receiving Your Shipment ...............3 1.3 Ordering Information ..............3 1.3.1 Accessories and Replacement Parts ........3 2. PRODUCT FEATURES ............... 4 2.1 Description ..................4 2.2 Wire Mapper Pro Features .............5 3. -
Page 4: Introduction
CHAPTER 1 INTRODUCTION Warning ● This instrument meets the safety requirements of IEC61010-1:1995. ● The Model CA7028 is designed for use on de-energized circuits only. ● Connection to line voltages will damage the instrument and could be hazardous to the operator. ● This instrument is protected against connection to telecom network voltages according to EN 61326-1. ● Safety is the responsibility of the operator. International Electrical Symbols This symbol signifies that the instrument is protected by double or reinforced insulation. Use only specified replacement parts when servicing the instrument. This symbol on the instrument indicates a WARNING and that the operator must refer to the user manual for instructions before operating the instrument. -
Page 5: Receiving Your Shipment
Receiving Your Shipment Upon receiving your shipment, make sure that the contents are consistent with the packing list. Notify your distributor of any missing items. If the equipment appears to be damaged, file a claim immediately with the car- rier and notify your distributor at once, giving a detailed description of any damage. -
Page 6: Product Features
CHAPTER 2 PRODUCT FEATURES Description The Wire Mapper Pro is a hand-held structured cable tester and trouble- shooter designed for use on UTP, STP, FTP & SSTP cabling equipped with RJ45 connectors and wired to either TIA 568A/B (ISO11801 & EN50137), USOC or ISDN specifications. It detects open circuit pairs, shorts, crossed wires, crossed pairs, reversed pairs, shield faults and split pairs. -
Page 7: Wire Mapper Pro Features
Wire Mapper Pro Features Structured Cable Tester AEMC Instruments Wire Mapper Pro V1.0 TIA568 UTP Vp=75% SERVICE / Vp LENGTH / Vp MAP / WIRE MAPPER PRO WIRE MAPPER PRO MODEL CA7028 MODEL CA7028 Remote Unit 1. RJ-45 input connector 2. -
Page 8: Specifications
CHAPTER 3 SPECIFICATIONS Range: 500 ft (150m) Accuracy: ±5% Cable Types: UTP, STP, FTP & SSTP Faults Indicated: Short Circuit Pair Open Circuit Wire Short Between Pairs Split / Cross Pairs Pair Reversals Shield Continuity Fault Location: Near end, remote end, or distance if midway Wiring Schemes: TIA 568A/B, USOC &... - Page 9 Auto Power Off: after 3 minutes Battery Life: Standby mode >4000hrs Continuous testing >7.5hrs Storage Temperature: -4 to 158°F (-20 to 70°C) 5 to 95% RH non-condensing Operating Temperature: 32 to 112°F (0 to 40°C) 5 to 95% RH non-condensing Main Unit Weight: 12 oz (350g) Main Unit Dimensions: 6.5 x 3.5 x 1.5"...
-
Page 10: Operation
CHAPTER 4 OPERATION Getting Started The instrument is switched on and off using the green power button found on the lower right side of the front panel. AEMC Instruments Wire Mapper Pro V2.12 TIA568 UTP Vp=75% When the unit is first switched on, it will display the opening screen giving the software version and remaining battery capacity. The wire type (TIA568, STP...) and the Vp (Velocity of Propogation) is also displayed. -
Page 11: Determining And Measuring Vp Values
• Under Type, the following selections can be made: TIA568 STP TIA568 UTP ISDN USOC UTP USOC STP NOTE: For testing of wiremap in accordance with ISO11801 & EN50137 the product should be set to TIA568 which is the equivalent standard. For FTP and SSTP cables use the STP setting. • Vp is selectable in the range 20% to 100%. (see §... -
Page 12: Tnv (Telecom Network Voltage) Testing And Warning
Testing and Warning (Telecom Network Voltage) The Wire Mapper Pro is designed to work on non- energized circuits only. Make sure that the circuit to be tested is not live before mapping. Turn the unit on and plug it into the port to be tested with a short patch cord. -
Page 13: Service Detection
Service Detection To detect an active data port, plug the unit into the port to be tested using a short patch cable and press the button. SERVICE / Vp The display will show the type of data connection or service present from the following list: Structured Cable Tester Token Ring... - Page 14 The display will briefly show the following message while testing is being performed: * * * * * * * * * * * * * * * * * * * Test in Progress * * * * * * * * * * * * * * * * * * * This screen is quickly followed by the test results screen.
-
Page 15: Test Pass/Ok Screen
Test Pass/OK Screen 4 5 1 2 3 6 7 8 S PASS TIA568 L=94ft Vp=71% 4 5 1 2 3 6 7 8 S Cable OK When testing ISDN wiring, any resistive terminators should be switched out of the circuit or disconnected. Failure to do so could lead to erroneous test results. -
Page 16: Test Failed Screen
Test Failed Screen 4.8.1 Open and Short Fault In the event of an Open fault, the following is displayed: 4 5 1 2 3 6 7 8 S FAILED TIA568 L=94ft Vp=71% 4 5 1 2 3 6 7 8 S Open at remote end Pin 7 Notice the word FAILED under the cable ID1 and also the detailed mes-... -
Page 17: Reversed And Split Pair Fault
4.8.2 Reversed and Split Pair Fault In the event of a Reversed Pair fault, the following is displayed: 4 5 1 2 3 6 7 8 S FAILED TIA568 L=94ft Vp=71% 4 5 1 2 3 6 7 8 S Reversed Pair Pin 4 5 In the event of a Split Pair fault, the following is displayed:... -
Page 18: Multiple Faults
Multiple Faults In the event of a multiple fault, or a cable or link with more than one fault on it, the tester will report the faults in the following order of priority. • Shorts • Reversals • Opens For example, on a cable with an Open on pin 3 and a Short between pins 7 and 8, only the Short in pins 7 and 8 will be reported. -
Page 19: Cable Length Measurement
4.11 Cable Length Measurement Structured Cable Tester SERVICE / Vp LENGTH / Vp MAP / WIRE MAPPER PRO MODEL CA7028 The remote unit does not need to be attached for this test to be performed. Although it does not matter if it is attached, any terminators on ISDN wiring or sockets should be switched out of the circuit or disconnected. -
Page 20: Tone Generator
The Wire Mapper Pro may also be used as a tone generator, to trace and identify cables and wires. The user will need a cable tone tracer, such as the AEMC Tone Receiver/Cable Tracer Model TR03 (Cat. #2127.76). Structured Cable Tester... -
Page 21: Wire Protocol
CHAPTER 5 WIRE PROTOCOL The following drawings are examples depicting cable faults: CABLE OK (OK) Cable is good. Message: Cable OK Pair 1 Pair 2 Pair 3 Pair 4 OPEN PAIR (OP) One specific pair is open. It may be one or two wires in the same pair. One or more pairs may also be opened in the same cable. Message: Pair 1 Open at Near End... - Page 22 REVERSED PAIR (RP) The wires in one specific pair are reversed at one end. One or more pairs may be reversed in the same cable. Pair 1 Message: Pair 2 Reversed Pair Pin 3 6 Pair 3 Pair 4 SHORTED WIRES (SW) Two wires from different pairs are shorted. Two or more wires and pairs may be affected in the same cable. Pair 1 Message: Pair 2 Short at Remote End or Near End Pair 3 Pin 2 3...
- Page 23 CROSSED PAIRS (CP) Two pairs are crossed at one end. Two or more pairs may be crossed in the same cable. Pair 1 Message: Crossed Pairs Pair 2 Pin 1 2 7 8 Pair 3 Pair 4 SPLIT PAIRS (SP) One pair uses one wire from another pair.
-
Page 24: Maintenance
CHAPTER 6 MAINTENANCE Use only factory specified replacement parts. AEMC ® will not be held responsible for any accident, incident, or malfunction following a repair done other than by its service center or by an approved repair center. Changing the Battery Disconnect the instrument from any cable or network link. -
Page 25: Repair And Calibration
Number (CSA#). This will ensure that when your instrument arrives, it will be tracked and processed promptly. Please write the CSA# on the outside of the shipping container. Ship To: Chauvin Arnoux ® , Inc. d.b.a. AEMC ® Instruments 15 Faraday Drive Dover, NH 03820 USA Phone: (800) 945-2362 (Ext. -
Page 26: Limited Warranty / Warranty Repairs
The Wire Mapper Pro Model CA7028 is warranted to the owner for a period of two years from the date of original purchase against defects in ® manufacture. This limited warranty is given by AEMC Instruments, not by the distributor from whom it was purchased. This warranty is void if the unit has been tampered with, abused or if the defect is related to service ®...
