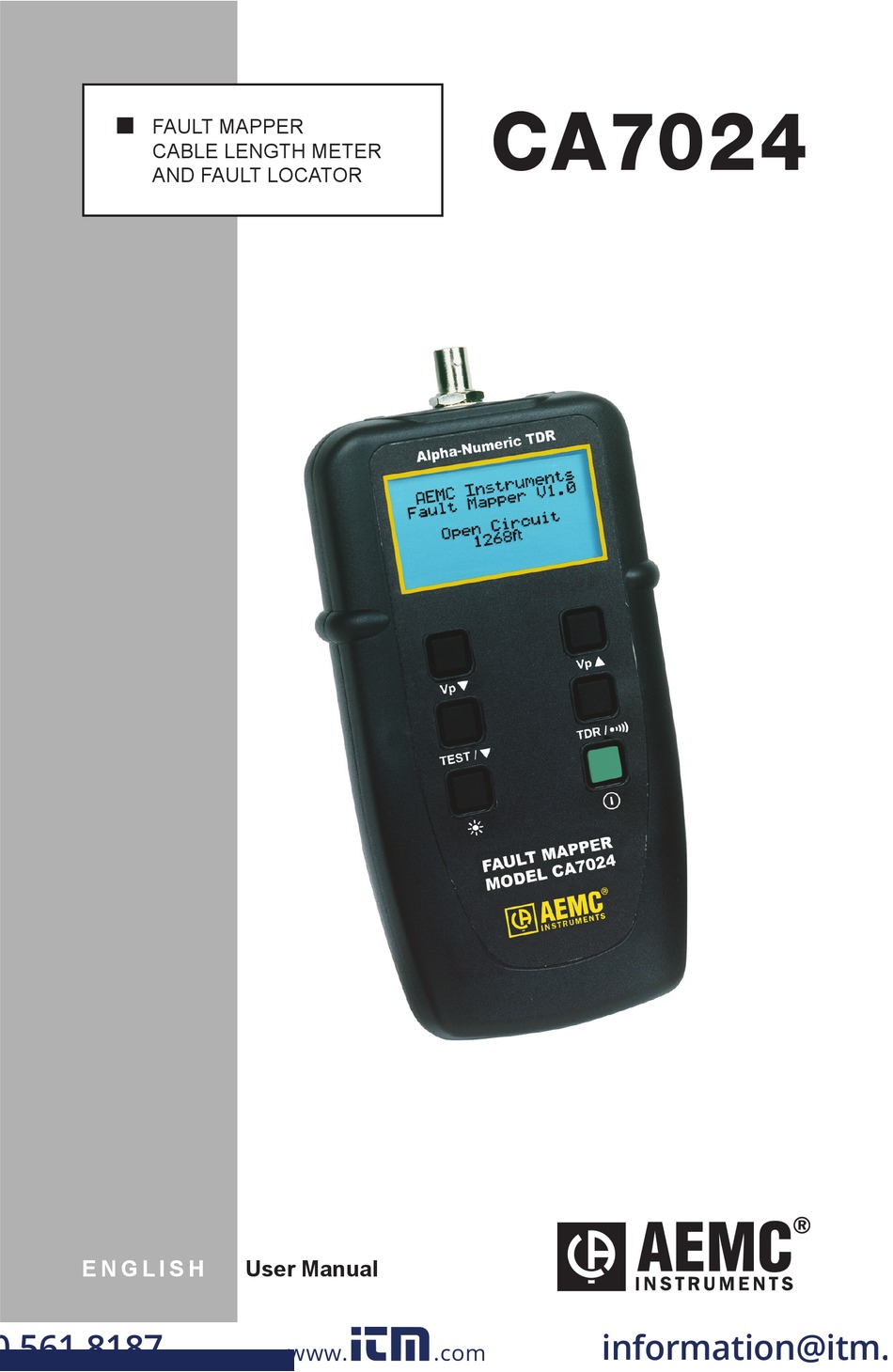

- Page 1 CA7024 FAULT MAPPER CABLE LENGTH METER AND FAULT LOCATOR E N G L I S H User Manual 0.561.8187 information@itm. www. .com...
- Page 2 Statement of Compliance Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® certifies that this instrument has been calibrated using standards and instruments traceable to international standards. We guarantee that at the time of shipping your instrument has met its published specifications.
-
Page 3: Table Of Contents
Table of Contents 1. INTRODUCTION ................3 1.1 International Electrical Symbols ..........3 1.2 Receiving Your Shipment ............4 1.3 Ordering Information ..............4 1.3.1 Accessories and Replacement Parts ......4 2. PRODUCT FEATURES ..............5 2.1 Description ................5 2.2 Fault Mapper Features .............6 3. - Page 4 Limited Warranty ...................20 Warranty Repairs ...................20 Fault Mapper Model CA7024 0.561.8187 information@itm. www. .com...
-
Page 5: Introduction
CHAPTER 1 INTRODUCTION WARNING ● This instrument meets the safety requirements of IEC61010- 1:1995. ● The Model CA7024 is designed for use on de-energized circuits only. ● Connection to line voltages will damage the instrument and could be hazardous to the operator. ● This instrument is protected against connection to telecom network voltages according to EN61326-1. ● Safety is the responsibility of the operator. International Electrical Symbols This symbol signifies that the instrument is protected by double or reinforced insulation. -
Page 6: Receiving Your Shipment
Receiving Your Shipment Upon receiving your shipment, make sure that the contents are consis- tent with the packing list. Notify your distributor of any missing items. If the equipment appears to be damaged, file a claim immediately with the carrier and notify your distributor at once, giving a detailed description of any damage. -
Page 7: Product Features
CHAPTER 2 PRODUCT FEATURES Description The Fault Mapper is a handheld, Alpha-Numeric, TDR (Time Domain Reflec- tometer) Cable Length Meter and Fault Locator, which is designed to measure the length of power and communication cables or to indicate the distance to a fault on the cable, given access to only one end. By incorporating Fast-edge Step TDR Technology, the Fault Mapper measures cable length and indicates the distance to open or short circuit faults, to a range of 6000 ft (2000m) on at least two conductors. -
Page 8: Fault Mapper Features
Fault Mapper Features Alpha-Numeric TDR AEMC Instruments Fault Mapper V3.1B Appletalk Vp=66% TEST / TDR / FAULT MAPPER ® MODEL CA7024 1. BNC input connector 2. Alpha-Numeric LCD 3. Vp (Velocity of Propagation) decrement button 4. Test /function select button 5. -
Page 9: Specifications
CHAPTER 3 SPECIFICATIONS Range @ Vp=70%: 6000 ft (2000m) Resolution (m): 0.1 m up to 100 m, then 1 m Resolution (ft): 0.1 ft up to 100 ft, then 1 ft Accuracy*: ±2% of Reading Minimum Cable Length: 12 ft (4m) Cable Library: Built-in Vp (Velocity of Propagation): Adjustable from 0 to 99%... -
Page 10: Operation
CHAPTER 4 OPERATION Principles of Operation The Fault Mapper works by measuring the time taken for a signal to travel to the far end of the cable under test, or to an intermediate fault and return. The velocity at which the signal travels, or Velocity of Propagation (Vp), will depend on the characteristics of the cable. Based on the selected Vp and the measured travel time of the test pulse, the Fault Mapper calculates and displays distance. Accuracy and Velocity of Propagation (Vp) The Fault Mapper measures distances to faults and cable lengths to an accuracy of ±... -
Page 11: Getting Started
Getting Started The instrument is switched on and off using the green power button found on the lower right side of the front panel. When the unit is first switched on it will display the opening screen giving the software version, the currently selected cable type/Velocity of Propa- gation, and remaining battery capacity. AEMC Instruments Fault Mapper V3.1B Romex 14/2 Vp=66% Set-up Mode Hold the button, then press the button to enter Set-up mode. TDR / TEST / > Feet Eng (USA) -
Page 12: Programming A Custom Library Location
Programming a Custom Library Location To program a custom library location, enter the Set-up mode (see § 4.4). Press the button to select Edit Library; the line selector (>) should TEST / be at Edit Library. Press the button to enter the library programming mode. • The Model CA7024 will display the first programmable cable loca- tion in the library. • The factory setting for each location is Custom Cable X with a Vp = 50%, where X is location 1 through 15. -
Page 13: Backlight
TDR / Backlight The display backlight is switched on and off with the button. Tone Generator The Fault Mapper may also be used as a tone generator, to trace and identify cables and wires. The user will need a cable tone tracer, such as the AEMC Tone Receiver/Cable Tracer Model TR03 (Cat. #2127.76) or equivalent. Fault Mapper Model CA7024 0.561.8187 information@itm. www. .com... -
Page 14: Voltage Safety Warning (Live Sample)
Pressing the button will inject a warbling (oscillating) tone into the TDR / cable or link under test. When set, the following will be displayed: * * * * * * * * * * * * * * * * * * * Warble Tone * * * * * * * * * * * * * * * * * * * The injected signal oscillates between 810Hz and 1110Hz, six times per second. -
Page 15: Determining And Measuring Vp Values
Determining and Measuring Vp Values Velocity of Propagation (Vp) values are characteristic of each cable type and brand. The Vp is used to measure the length of a cable and to measure a fault location. The more accurate the Vp, the more accurate the measurement result will be. -
Page 16: Selecting A Library Cable Or Setting Vp
4.10 Selecting a Library Cable or Setting Vp Press the buttons to move up and down through the library. 4.10.1 Cable Library Cable Type Vp (%) Z (Ω) A.I.W 10/4 A.I.W 16/3 Alarm Belden Alarm M/Core Alumaflex XHHW-2 Belden 8102 Belden 9116 Belden 9933 CAT5 STP CAT5 UTP Cirtex 12/2 Coax Air Coax Air Space Coax Foam PE... - Page 17 If the cable to be tested is not listed in the library, or a different Vp is required, continue pressing the button, past the top of the library. Vp will be displayed with a value, which can be selected from 1 to 99%. If the Vp value is not known, see § 4.9. AEMC Instruments Fault Mapper V3.1B Vp=95% NOTE: When the Fault Mapper is turned off, it will remember the last selected Cable Library or Vp setting. This feature is useful in the situation where the operator is performing many tests on the same type of cable.
-
Page 18: Attaching A Cable To The Fault Mapper
4.11 Attaching a Cable to the Fault Mapper 1. Make sure that there is no power supply or equipment attached to the cable to be tested. 2. Check that the far end of the cable is either open or shorted (not fitted with a resistive termination). 3. Attach the Fault Mapper to one end of the cable to be tested. The cable attachment is via a BNC connector located at the top of the unit. For unterminated cables use the alligator clip attachment provided. -
Page 19: Measuring Cable Length Or Fault Distance
Assuming there are no opens or shorts in the cable, the length of the cable will be displayed. For lengths less than 100ft, the displayed value will be to one decimal place. AEMC Instruments Fault Mapper V3.1B Open Circuit 63.2ft For lengths over 100 ft the decimal place is suppressed. -
Page 20: Maintenance
CHAPTER 5 MAINTENANCE Use only factory specified replacement parts. AEMC will not be held ® responsible for any accident, incident, or malfunction following a repair done other than by its service center or by an approved repair center. Changing the Battery Disconnect the instrument from any cable or network link. -
Page 21: 8187 Www
0.561.8187 information@itm. www. .com... - Page 22 AEMC Instruments, not by the distributor from whom it was ® purchased. This warranty is void if the unit has been tampered with, abused or if the defect is related to service not performed by AEMC Instruments. ® For full and detailed warranty coverage, please read the Warranty Coverage Information, which is attached to the Warranty Registration Card (if enclosed) or is available at www.aemc.com.
- Page 23 0.561.8187 information@itm. www. .com...
- Page 24 11/11 99-MAN 100269 v12 Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 0.561.8187 information@itm. www. .com...
