Summary of Contents for Blodgett COMBI BCS-6

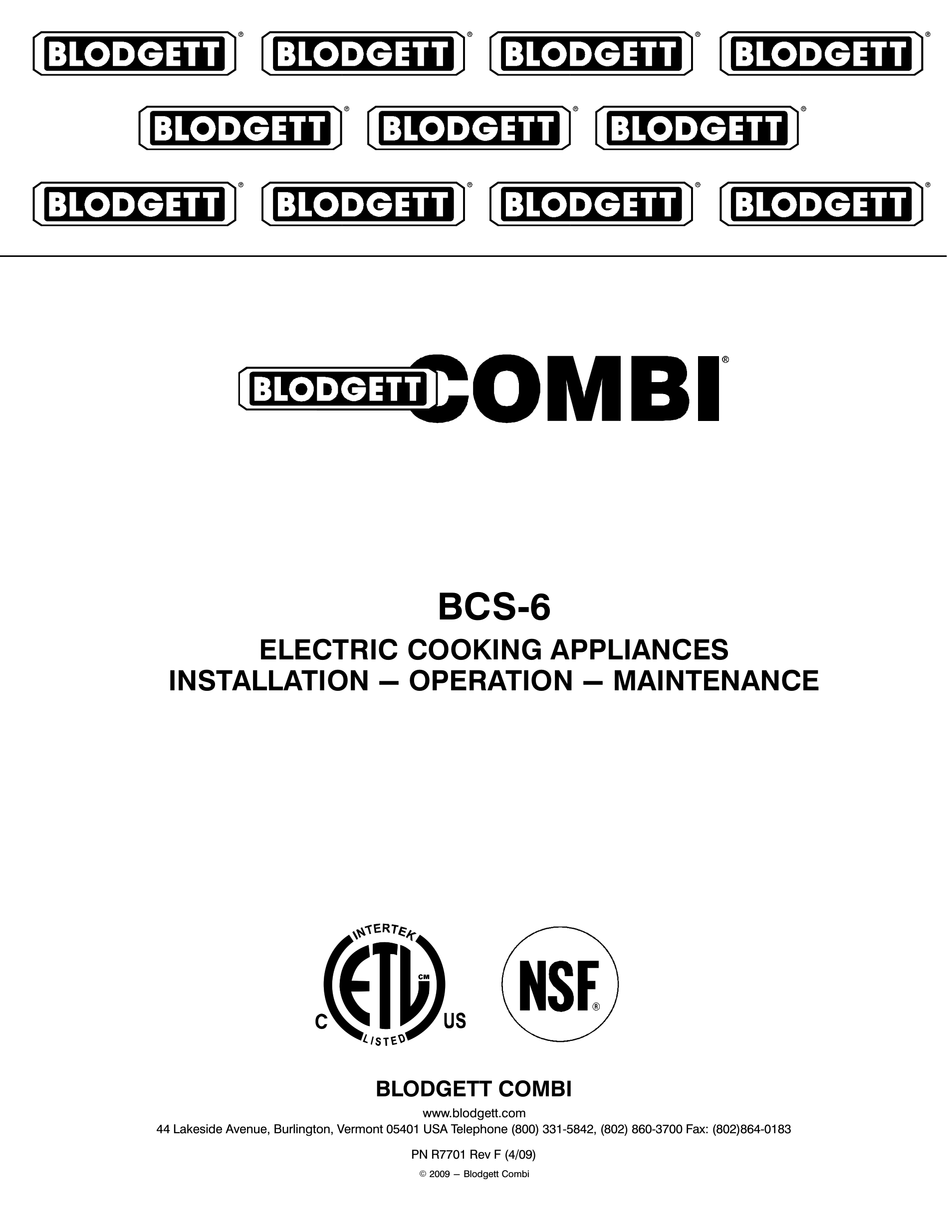

- Page 1 BCS 6 ELECTRIC COOKING APPLIANCES INSTALLATION - OPERATION - MAINTENANCE BLODGETT COMBI www.blodgett.com 44 Lakeside Avenue, Burlington, Vermont 05401 USA Telephone (800) 331 5842, (802) 860 3700 Fax: (802)864 0183 PN R7701 Rev F (4/09) E 2009 - Blodgett Combi...
- Page 2 A PERSONAL WORD FROM BLODGETT COMBI Congratulations on your purchase of a BLODGETT Combi appliance. We firmly believe that your choice has been a wise one, and trust you will re ceive many years of excellent service from your new Combi.
- Page 3 IMPORTANT WARNING: IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH. READ THE IN STALLATION, OPERATING AND MAINTENANCE IN STRUCTIONS THOROUGHLY BEFORE INSTALLING OR SERVICING THIS EQUIPMENT FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.
- Page 4 Model: Your Service Agency's Address: Serial Number: Your oven was installed by: Your start up inspection service was performed: Date: ASAP:...
-
Page 5: Table Of Contents
Table of Contents Introduction The Convection Steamer ......... . Description of the Convection Steamer . -
Page 6: Introduction
HOW STEAMING WORKS quently used in restaurant and institutional kitch The Blodgett Convection Steamer gently cooks ens. With the Blodgett Convection Steamer, it is food using non pressurized steam. Fresh steam is now possible to enjoy the many advantages of directed into the unit from the generator. -
Page 7: Description Of The Convection Steamer
ABOUT THE CONVECTION STEAMER STEAMER OPERATION The practical door, with a viewing window, has a Blodgett Convection Steamers are quality pro wide swing radius and handle which can be oper duced using high grade stainless steel with first ated easily, even with wet or greasy hands. -
Page 8: Steamer Features
Introduction Steamer Features Standard Features Figure 1 Control Panel (standard control shown) Door Contact Switch Power Connection Vent (not shown) Steamer Door (glass door shown) Decalcifying Inlet & Funnel Assembly Drip Collector (removable for cleaning) Decalcifying Valve Lever Door Handle 10 Tilt Down Panel Release Screw... -
Page 9: Installation
Installation Owner's Responsibilities 1. Steamer(s) are uncrated, stacked (if applies) WARNING!! and put in place. NOTE: Please refer to Leg Attachment and Improper installation, adjustment, alter Stacking Addendum. ation service or maintenance can cause property damage, injury or death. Read 2. -
Page 10: Location
Installation Location The well planned and proper placement of your Place the unit in an area which is free of drafts and appliance will result in long term operator conve accessible for proper operation and servicing. nience and satisfactory performance. Keep the oven area free and clear of all combus The following clearances must be maintained be tibles such as paper, cardboard, and flammable... -
Page 11: Agency Approvals
If you do not required, and have complied with all requirements have a local distributor, please call Blodgett Combi of state or local authorities having jurisdiction. at 0011 802 860 3700. -
Page 12: Utility Connections
Installation Utility Connections COLD WATER CONNECTION DRAIN CONNECTION Connect the appliance to quality water via a pres The Drain Vent assembly, included with the unit, sure hose with 3/4" couplings. A shut off valve is and a 2" (5 cm) copper pipe with standard drain to be provided adjacent to the steamer. -
Page 13: Utility Connections
If you do not have a local distributor, please call Blodgett Combi at 0011 802 860 3700. NOTE: ALL MANUAL RESETS SHOULD BE RE STORED BEFORE CONNECTING POWER TO THE APPLIANCE. -
Page 14: Leg Attachment
Installation Leg Attachment LEG VARIATIONS LEG ATTACHMENT Legs are available in 4" (101mm), 6" (152mm) or NOTE: If low profile casters are used, install the 25" (635mm) lengths or low profile casters. The 6" locking casters on the front of the oven. legs are used on the lower section of a double The rear casters do not lock. -
Page 15: Stacking
Installation Stacking 1. Install the casters as directed. 2. Center the upper unit on top of the lower sec tion. 3. Remove the screws from the rear access pan el and remove the access panel from the bot tom unit. 4. -
Page 16: Adjustments
Installation Adjustments BEFORE SWITCHING THE APPLIANCE ON DOOR ADJUSTMENT Before applying power to the unit for the first time, The door latch may be adjusted in two directions, check for the following conditions: in and out, and up and down, using the following procedure: All electrical safety provisions have been ad 1. -
Page 17: Final Check Lists
Installation Final Check Lists ELECTRICAL CONTROL COMPARTMENT STEAMER OPERATIONAL TESTS Applied voltage to unit voltage/phase suitable for NOTE: Checks to be made by customer or autho appliance specified. rized service agent. Remove side panel Turn on STEAM mode and verify (control panel re moved): Set motor protector (F2) to on position (480V only) -
Page 18: Operation
Operation Standard Controls CONTROLS IDENTIFICATION 1. LOW WATER FILL LIGHT - during the fill cycle, this light remains on until the water in the steam generator is at the proper level and up to temperature. During normal operation the light should not be on. If the light comes on, check the water level in the steam generator. -
Page 19: Push Button Power Saver" Control
Operation Push Button Power Saver" Control CONTROLS IDENTIFICATION 1. LOW WATER FILL LIGHT - during the fill cycle, this light remains on until the water in the steam generator is at the proper level and up to temperature. During normal operation the light should not be on. -
Page 20: Maintenance
Maintenance Spray Bottle Operating Procedure 1. Unscrew the sprayer head and fill the contain Service Parts: er to the MAX mark. Screw the head assembly Complete spray bottle P/N R0006 on firmly to ensure an airtight seal. The liquid Spray nozzle repair kit P/N R6332 must be clean and free from foreign matter. -
Page 21: Cleaning And Preventive Maintenance
These units requires no lubrication. Contact the NOTE: DO NOT use corrosive cleaners! factory, a factory representative or a local Blodgett Combi service company to perform maintenance 1. Cool the appliance down to 140_F (60_C) or, and repairs should they be required. -
Page 22: Decalcification
Maintenance Decalcification 1. Turn the Mode Selection Switch (1) to the 7. Shut the Deliming Port Valve (2). Screw on the STEAM mode. Wait until steam is produced. Deliming Port Cap. Let the mixture stand for 20 This will ensure that the water in the steam minutes. - Page 23 INSERT WIRING DIAGRAM HERE...
