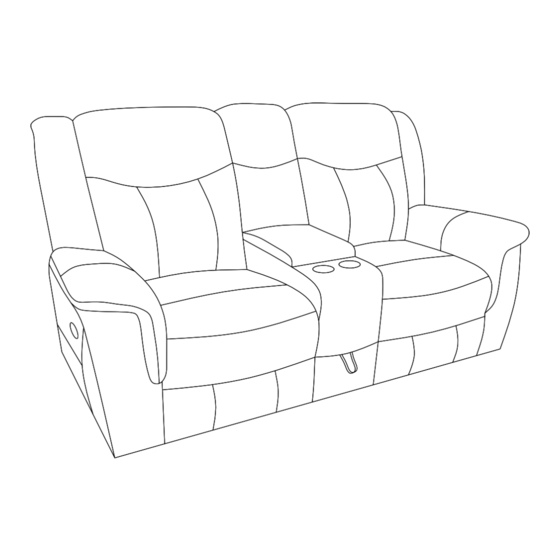

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 6 50355P Power Loveseat REVISION 0: 04/03/2019 COASTERFURNITURE.COM PAGE 1 OF 3 REVISION 1: 12/30/2019 REVISION2:09/07/2020...
- Page 2 6 50355P ITEM : ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1.Remove hardware from box and sort by size. 2.Please check to see that all hardware and parts are present prior to start of assembly. 3.Please follow attached instruction in the same sequence as numbered to assure fast & easy assembly. WARNING! 1.Don't attempt to repair or modify parts that are broken or defective.
- Page 3 6 50355P ITEM : ASSEMBLY INSTRUCTIONS STEP 1 STEP 2 STEP 3 STEP 4 1702mm(67'') 673.1mm(26.5'') 1041mm(41'') 1016mm(40"") 1041mm(41'') 737mm(29'') 558.8mm(22'') 558.8mm(22'') 508mm(20") 1943.1mm(76.5'') 1041.4mm(41'') 635mm(25'') PAGE 3 OF 3 Note : Dimension tolerance ±5% COASTERFURNITURE.COM...
