JONR ED10 Manual

Cordless wet & dry vacuum cleaner
Hide thumbs
Table of Contents

Advertisement

Quick Links

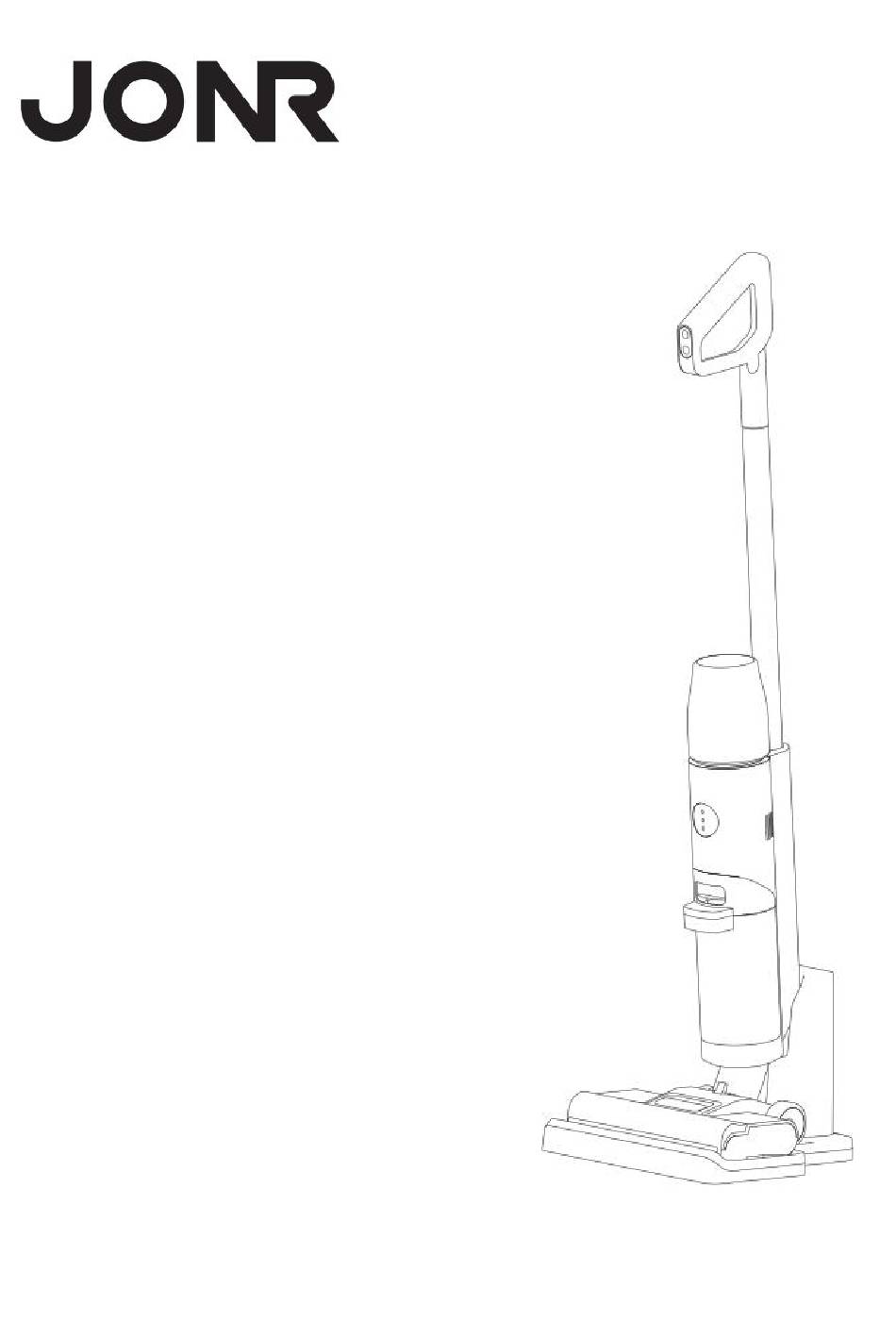

Cordless wet & dry vacuum cleaner
(Wireless intelligent floor washer)
Use Manual
ED10
ED11

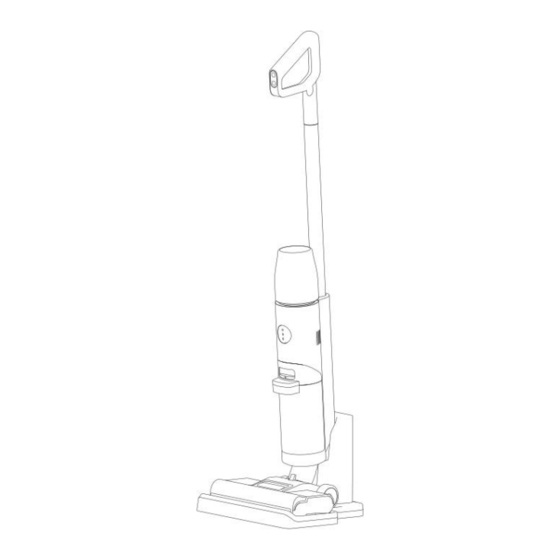

This picture is for reference only, and the actual
product shall prevail.
Please read this manual carefully before use, and keep it properly for further reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ED10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JONR ED10

Summary of Contents for JONR ED10

  • Page 1 Cordless wet & dry vacuum cleaner (Wireless intelligent floor washer) Use Manual ED10 ED11 This picture is for reference only, and the actual product shall prevail. Please read this manual carefully before use, and keep it properly for further reference.

  • Page 2: Table Of Contents

    Table of Content Safety Specifications-------------------------------------------------------------------------------------------- 1 Product Introduction-------------------------------------------------------------------------------------------- 3 Installation-------------------------------------------------------------------------------------------------------- 7 Product Summary------------------------------------------------------------------------------------------------8 Product Technology and Parameters------------------------------------------------------------------------ 11 Maintenance and Service------------------------------------------------------------------------------------- 12 Description of Hazardous Substances-----------------------------------------------------------------------15 After-Sales Service-------------------------------------------------------------------------------------------- 16 Warranty Card-------------------------------------------------------------------------------------------------- 17...

  • Page 3: Safety Specifications

    Safety Specifications In order to avoid accidental injuries such as electric shock and fire caused by improper operation, please read the User Manual carefully before use and keep this manual properly for further reference. This product is designed only for household use rather than outdoor use, non-ground use, commercial or industrial environments. Warning Unless supervised or instructed by an adult guardian who can ensure that this product can be operated safely and properly, persons with physical, sensory, or intellectual disabilities or without experience and knowledge,...
  • Page 4 Safety Specifications • Do not immerse the floor brush in water to avoid product burns. Do not shake or impact the machine violently to avoid wastewater flowing into the motor. When handling the product, please keep the product in an upright state to avoid wastewater flowing into the motor.

  • Page 5: Product Introduction

    Product Introduction Packing list Adapter Charging base Manual Manual Main engine *Notes: The illustrations of the product, accessories and user interface in the manual are schematic and are for reference only. The actual product will prevail as the products are improved continuously, and our company reserves the right to update the product.
  • Page 6 Product Introduction Product Description ON/OFF key Mode key/self-cleaning key Handle Aluminum tube Clean water tank Release button of wastewater tank Wastewater tank handle Wastewater tank Charging base Roller brush Roller brush cover...
  • Page 7 Please timely clean the wastewater tank after cleaning, and remove any residual stains on the base if any. Tips: ED10 has no air drying function, but ED11 has air drying function.
  • Page 8 Product Introduction Size L: 28.2cm W: 27cm H: 112cm...

  • Page 9: Installation

    Installation Handle Disassembly Click To remove the aluminum tube of the handle, Insert the end of the aluminum tube vertically insert a long, thin, and rigid object into the hole into the hole on the host until a “click” sound is in the back of the body to press the elastic sheet heard, and make sure that the tube is tightly while pulling the machine handle upwards.

  • Page 10: Product Summary

    Product Summary 1. Preparation before use 1) Before use, please check whether your floor scrubber battery has power; if not, please charge it timely. Do not use it until fully charged. (Recommendation: please fully charge the product before first use). Charging method: Put the machine into the charging base, connect one end of the adapter to the charging base, and connect the other end to the socket in the home.
  • Page 11 Product Summary 2) Fill water in the clean water tank Remove the clean water Open the silicone stopper and fill with Install clean water tank on the body tank water 2. Start to work 1) Startup: Press the Power button after the product is fully charged to start the machine, and press this button again to shut down the machine;...
  • Page 12 Product Summary 2) Clean the wastewater tank Remove the wastewater tank Open the wastewater tank Clean the wastewater tank Install the wastewater tank...

  • Page 13: Product Technology And Parameters

    Product Specifications and Parameters Product name Wireless intelligent floor washer ED10 / ED10W / ED10Z / ED10X / ED10M Product model (available) ED11 / ED11W / ED11Z / ED11X Rated voltage 22.2V Rated power 200W Li-ion battery capacity 2600mAh Clean water tank capacity 0.8L...

  • Page 14: Maintenance And Service

    Maintenance and Service 1. To prevent affecting the working performance of the machine, it is recommended to regularly clean and maintain the machine body, floor brush, dirt suction port, and wastewater tank; 2. Before cleaning, stop the machine and clean the machine body with a cloth dipping in water or neutral detergent;...
  • Page 15 Maintenance and Service 5. Clean the suction nozzle of the floor brush If the floor cannot be cleaned thoroughly after an extended period of use, please check whether the suction nozzle of the floor brush is blocked. When cleaning the roller brush, please remove dirt inside the suction nozzle with a clean brush or a wet cloth.
  • Page 16 Maintenance and Service 7. Description of abnormal conditions of lights Abnormal conditions Light warning Solution Contact the customer service center and sent it Short circuit The red light flashes 5 times to the factory for repair The wastewater tank is full The red light flashes 4 times Pour wastewater water The charging temperature is...

  • Page 17: Description Of Hazardous Substances

    Description of Hazardous Substances 1. This product meets the requirements of the Management Measures for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products. 2. During the environmental protection use period, no harmful substances that affect their health are leaking or precipitating, and consumers can operate it safely.

  • Page 18: After-Sales Service

    After-Sales Service The free warranty period of the entire machine is one year, and the warranty will be invalid for any of the following situations: 1. Corresponding consumables and gifts; 2. Damaged due to improper handling, operation, maintenance, and storage by the user; 3.

  • Page 19: Warranty Card

    Warranty Card Relevant information (filled in by the user) User name Frequently used phone Contact address Product model Product No. Purchase store Date of purchase Repair station Invoice number Repair Records Date of repair Fault content Troubleshooting details Name of the repair unit Phone of repair unit Signature of the repairman Customer service hotline +86 512 6786 2180.
  • Page 21 Suzhou New Ebao Technology Co., Ltd. Address: 2-201 (1), building 1, Microsystem Park, No. 2, Peiyuan Road, High-Tech Zone, Suzhou Contact number: +86 512 6786 2180 Website: http://jonr.cc...
