Summary of Contents for JONR ED12

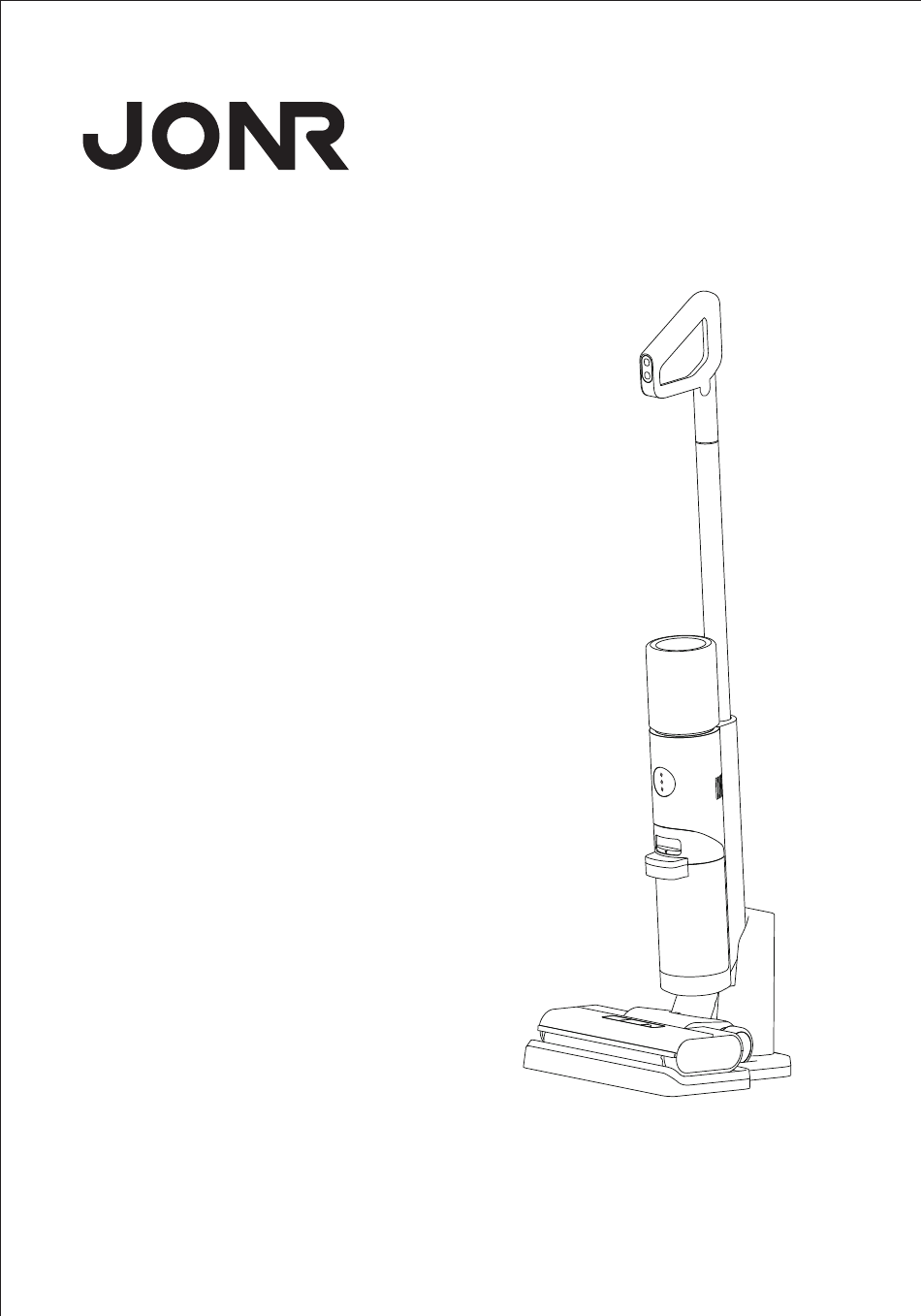

- Page 1 Cordless wet & dry vacuum cleaner User Manual ED12 This picture is for reference only, and the actual product shall prevail. Please read this manual carefully before use, and keep it properly for further reference.
-
Page 2: Table Of Contents
Table of Content Safety Specifications ..........1 Product Introduction ..........4 Installation ............... 7 Product Summary ............8 Product Technology and Parameters ......11 Maintenance and Service .......... 12 Description of Hazardous Substances ......15 After-Sales Service ..........16 Warranty Card ............17... -
Page 3: Safety Specifications
Safety Specifications In order to avoid accidental injuries such as electric shock and fire caused by improper operation, please read the User Manual carefully before use and keep this manual properly for further reference. This product is designed only for household use rather than outdoor use, non-ground use, commercial or industrial environments. - Page 4 Safety Specifications • Please only use the type of liquid specified in the operating section of this manual, and its usage volume shall meet the regulations. Do not add other solutions (such as alcohol and disinfectant) without permission. • Take extra care when cleaning on stairs to prevent falls. •...
- Page 5 Safety Specifications case of accidental contact, please rinse with water. If the liquid enters the eyes, please seek medical care immediately, as the liquid ejected from the battery may cause irritation or burns. • This product must be disconnected from the power source before the battery is removed. Please put the battery in places out of reach of children;...
-
Page 6: Product Introduction
Product Introduction Packing list Adapter Charging base Manual Manual Main engine *Notes: The illustrations of the product, accessories and user interface in the manual are schematic and are for reference only. The actual product will prevail as the products are improved continuously, and our company reserves the right to update the product. - Page 7 Product Introduction Product Description ON/OFF key Mode key/self-cleaning key Handle Aluminum tube Clean water tank Release button of wastewater tank Wastewater tank handle Wastewater tank Charging base Roller brush Roller brush cover Charging socket...
- Page 8 Product Introduction L: 28.2cm W: 26cm H: 112cm...
-
Page 9: Installation
Installation Handle Diseassembly Click Insert the end of the handle vertically Insert the end of the aluminum tube into the bore of the aluminum tube until vertically into the hole on the host until a “click” sound is heard, and make sure a “click”... -
Page 10: Product Summary
Product Summary 1. Preparation before use 1) Before use, please check whether your floor scrubber battery has power; if not, please charge it timely. Do not use it until fully charged. (Recommendation: please fully charge the product before first use). Charging method: Put the machine into the charging base, connect one end of the adapter to the charging base, and connect the other end to the socket in the home. - Page 11 Product Summary 2) Fill water in the clean water tank Remove the Open the silicone Install clean water clean water tank stopper and fill tank on the body with water 2. Start to work 1) Startup: Press the Power button after the product is fully charged to start the machine, and press this button again to shut down the machine;...
- Page 12 Product Summary 2) Clean the wastewater tank Open the wastewater tank Remove the wastewater tank Install the wastewater tank Open the wastewater tank...
-
Page 13: Product Technology And Parameters
Product Specifications and Parameters Product name Wireless intelligent floor washer Product model ED12 / ED12X / ED12Z / ED12W Rated voltage 22.2V Rated power 200W Li-ion battery capacity 2600mAh Clean water tank capacity 0.85L Wastewater tank capacity 0.4L Net weight 3.63kg... -
Page 14: Maintenance And Service
Maintenance and Service 1.To prevent affecting the working performance of the machine, it is recommended to regularly clean and maintain the machine body, floor brush, dirt suction port, and wastewater tank; 2.Before cleaning, stop the machine and clean the machine body with a cloth dipping in water or neutral detergent;... - Page 15 Maintenance and Service 5.Clean the suction nozzle of the floor brush If the floor cannot be cleaned thoroughly after an extended period of use, please check whether the suction nozzle of the floor brush is blocked. When cleaning the roller brush, please remove dirt inside the suction nozzle with a clean brush or a wet cloth.
- Page 16 Maintenance and Service 7.Description of abnormal conditions of lights Abnormal conditions Light warning Solution The red light is always on Short circuit Stop the machine for 1 second The red light is always on The wastewater tank is full Pour wastewater water for 2 minutes The charging temperature Reset after the adapter is...
-
Page 17: Description Of Hazardous Substances
Description of Hazardous Substances 1.This product meets the requirements of the Management Measures for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products. 2.During the environmental protection use period, no harmful substances that affect their health are leaking or precipitating, and consumers can operate it safely. 3.The environmental protection use period of the company’s products is 10 years. -
Page 18: After-Sales Service
After-Sales Service The free warranty period of the entire machine is one year, and the warranty will be invalid for any of the following situations: 1.Corresponding consumables and gifts; 2.Damaged due to improper handling, operation, maintenance, and storage by the user; 3.Damaged due to the charging voltage lower than 100V or higher than 240V;... -
Page 19: Warranty Card
Warranty Card Relevant information (filled in by the user) Frequently User name used phone Contact address Product model Product No. Date of Purchase store purchase Invoice Repair station number Repair Records Date of repair Fault content Troubleshooti ng details Name of the Phone of repair unit repair unit... - Page 20 If you have any ques ons on the product, please contact us: ir@jonr.cc. Manufacturer: Suzhou New Ebao Technology Co.,ltd Address: 2-201 (1), building 1, Microsystem Park, No. 2, Peiyuan Road, High-Tech Zone, Suzhou Contact number: +86 512 6786 2180 E-Mail: ir@jonr.cc...
Need help?
Do you have a question about the ED12 and is the answer not in the manual?
Questions and answers
My cleaner is inky 2 months old and not working.. it turns in, then shuts off, red light flashes… I put on charger and no lights come on, I’ve verified that the outlet works because other stuff works in it….
If your JONR ED12 cleaner turns on, then shuts off with a flashing red light and does not charge, check the following:
1. Battery Issues: If the battery is dead or damaged, remove the adapter, then try resetting the device. If the issue persists, contact customer service.
2. Charging Problems: Ensure the adapter voltage and charging temperature are normal. Remove and reconnect the adapter to reset it.
3. Obstructions: Check for blockages in the roller brush or motor. Remove any debris and let the machine dry for 2 minutes.
4. Overheating: If the battery is overheating, power off the machine and leave it idle for 30 minutes before trying again.
If none of these steps resolve the issue, contact customer service for further assistance.
This answer is automatically generated
@Mr. Anderson there are no blockages, it’s been cleaned… how do you reset???
@Mr. Anderson I have unplugged and plugged back in… sometimes it lights up like charging, but then it doesn’t work… and then I put back on charger and nothing… how do I get a new battery?? 2 months is all I’ve had this!! Very disappointing
Hi I need to order a new clean water tank for my Joni Ed 12 wet dry vacuum
l'eau n'arrive plus
Water does not flow to the roller. There are no blockages. There is no damage to the water tank. The lid is not broken either. Everything looks fine. Does anyone know how to reset the settings?
