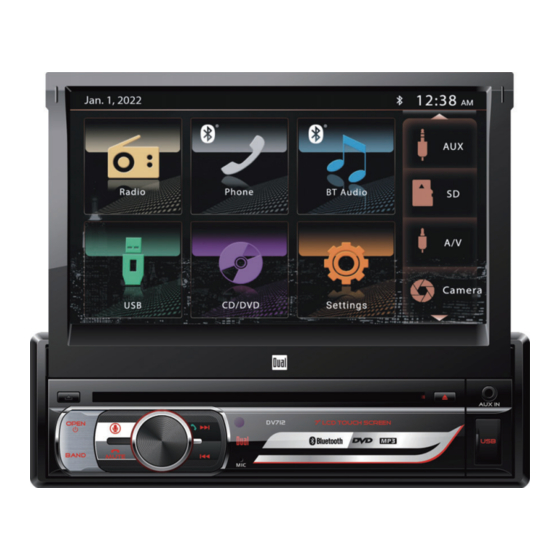

Dvd multimedia receiver with bluetooth featuring a 7" touch screen display
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

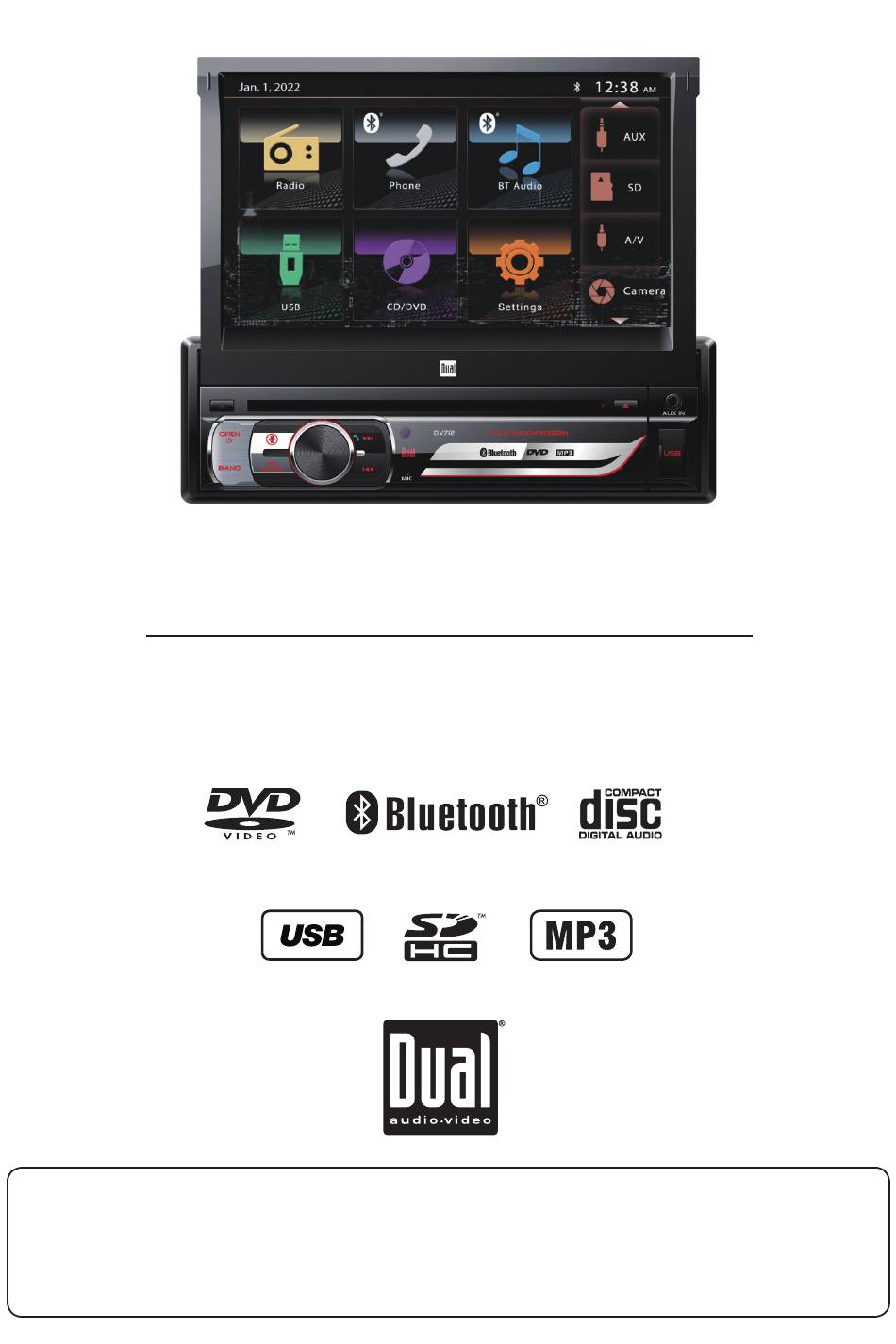

DV712
INSTALLATION/OWNER'S MANUAL
DVD Multimedia Receiver with Bluetooth
®
featuring a
7"
Touch Screen Display
Safety Notes:
The DVD video display of the in-dash unit will not operate while the vehicle is moving. This is a safety feature
to prevent driver distraction. In-dash DVD video functions will only operate when vehicle is in Park and the
parking brake is engaged. It is illegal in most states for the driver to view video while the vehicle is in motion.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DV712 and is the answer not in the manual?

Questions and answers
