Summary of Contents for Dual DC206BT

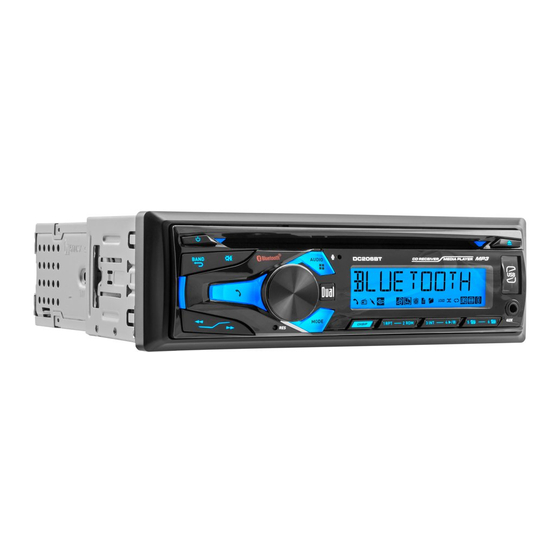

- Page 1 DC206BT INSTALLATION/OWNER'S MANUAL AM/FM/CD Receiver with Detachable Face...
-
Page 2: Getting Started
DC206BT INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. -
Page 3: Wiring Diagram
DC206BT INSTALLATION Wiring Diagram Antenna Connector 10 AMP AGC Fuse FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The XDM270 uses one 10 amp ATM fuse located beside the wiring connector. -
Page 4: Control Locations
DC206BT OPERATION Control Locations Power Preset 5 / Folder Down Band / Go Back Preset 4 / Play / Pause Mute Preset 3 / Intro Bluetooth Talk Preset 2 / Random Volume Knob Preset 1 / Repeat Audio / Menu Display... -
Page 5: Remote Control
DC206BT OPERATION Remote Control Mode Preset 6 / Folder Up Volume Up Mute Power Audio / Menu Select Preset 5 / Folder Down Tune / Track Up Preset 4 / Play / Pause Volume Down Preset 1 / Repeat Band / Go Back... -
Page 6: General Operation
NOTE: CD and USB modes will not appear unless a CD is inserted or USB device is connected. Auxiliary Input The DC206BT offers a 3.5 mm auxiliary input port on the front panel of the unit for connecting an audio device, MP3 player, etc. Press MODE to select auxiliary input mode. -
Page 7: Setup Menu
DC206BT OPERATION General Operation - Setup Menu Menu Function Options Action Auto Station Press the volume knob to seek and save 6 strong stations in AUTO STORE Store the current band. (Tuner mode only) LOCAL OFF Activates distance tuning (Tuner mode only). Local/Distance Activates local tuning for strong station reception only (Tuner ... -
Page 8: Balance And Fader
DC206BT OPERATION General Operation Audio Press AUDIO momentarily to select between Bass, Treble, Balance and Fader. BASS MIDDLE TREBLE BALANCE FADER EQ LOUD SOURCE LEVEL Bass Press AUDIO until BAS appears then rotate volume knob left/right to adjust ( -7 minimum / +7 maximum). Treble Press AUDIO until TRE appears then rotate volume knob left/right to adjust ( -7 minimum / +7 maximum). - Page 9 DC206BT OPERATION AM/FM Tuner Operation Seek Tuning Press TUNE or TUNE momentarily to seek to the next strong station. Manual Tuning Press and hold TUNE or TUNE until "MANUAL" appears, then press TUNE or TUNE momentarily to change radio frequency up or down one step at a time.
-
Page 10: Cd Player Operation
DC206BT OPERATION CD Player Operation Insert CD With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Eject CD Press EJECT to eject the CD. The unit will change to previous mode of operation. If the disc is not removed within 10 seconds, the unit will reload the disc. - Page 11 DC206BT OPERATION CD Player Operation - MP3/WMA Files Playing an MP3 CD When an MP3/WMA encoded disc is first inserted, “DISC READ" will appear in the display. Depending on the number of files and folders, this may take several seconds. Displaying Information Press DISP to select between song title, artist, file name, folder name, track number, and clock/elapsed time.
- Page 12 DC206BT OPERATION CD Player Operation - MP3/WMA Files Media Compatibility The following types of discs/files are compatible: • CD-ROM (ISO), CD-R, CD-RW • CD-DA • MP3 data • WMA data The following types of discs/files are not compatible: • WMA files that are protected by DRM (Digital Rights Management).
- Page 13 DC206BT OPERATION CD Player Operation - MP3/WMA Files Additional MP3/WMA An internal buffer provides ESP (Electronic Skip Protection) Information to virtually eliminate skipping. When playing a disc recorded with regular audio files (CD-DA or .WAV) and MP3/WMA files, the unit will play the MP3/WMA files only.
-
Page 14: Usb Operation
DC206BT OPERATION USB Operation Connecting a USB Device To play MP3/WMA files from most USB mass storage (sold separately) devices, line up the USB connector and insert the USB device into the unit's USB port. Playing Music When a USB device is first connected, “USB READ” will appear in the display and playback will begin momentarily. - Page 15 DC206BT OPERATION USB Operation Displaying Information When a file is accessed, the clock and elapsed time will be displayed. Press DISP momentarily to select beween song title, artist, file name, folder name, track number and clock/ elapsed time. "NO TITLE" will be displayed if no song title information is available.
- Page 16 DC206BT OPERATION USB Operation Character Support Maximum character display information • Track name – 32 character maximum • Directory name – 32 character maximum • *Song title – 32 character maximum • *Artist name – 32 character maximum *Song title and artist name will only be displayed if included with the MP3/WMA file.
- Page 17 DC206BT OPERATION USB Operation Additional MP3/WMA Only MP3 files with filename extension (.mp3) can be Information played. Only WMA files with filename extension (.wma) can be played. Do not attempt to play non-MP3/WMA files with the MP3/WMA extension. Sampling Frequency Rates 8kHz ~ 48kHz 32kHz ~ 48kHz Transfer Bit rates...
-
Page 18: Bluetooth Operation
DC206BT OPERATION Bluetooth Operation ® Pairing a Device Preparation Before you can use a Bluetooth device, it must be paired and connected. Make sure that Bluetooth is activated on your device before you begin the pairing process. The unit broadcasts the pairing signal constantly when Pairing a New Device... -
Page 19: Making A Phone Call
DC206BT OPERATION Bluetooth Operation ® Making a Phone Call Manual Dialing • Press once. "Enter Phone Number" will be shown, then an "_" will appear on the display. • Using the remote control, enter the phone number using the 0-9 buttons. Press on the remote control or the unit's front panel to begin dialing. -
Page 20: During A Phone Call
DC206BT OPERATION Bluetooth Operation ® During a Phone Call Volume Turn the volume knob to adjust the volume level during a phone call. Bluetooth mode has a separate volume level from the main volume of other modes. The unit will remember the volume level in Bluetooth mode and always return to the last volume level for each phone call. - Page 21 DC206BT OPERATION Bluetooth Operation ® Streaming Audio Operation The unit supports A2DP (advanced audio distribution profile) wireless streaming audio from your Bluetooth mobile device directly to your head unit. You can also control your music from the front panel of the head unit using AVRCP (audio video remote control profile).
-
Page 22: Troubleshooting
DC206BT OPERATION Troubleshooting Problem Cause Action Yellow wire not connected or incorrect Check connections for proper voltage Red wire not connected or Unit will not turn on voltage (11~16VDC) incorrect voltage (no power) Black wire not connected Check connection to ground Fuse blown Replace fuse... -
Page 23: Limited One Year Warranty
2. If you require service during the the original purchase. warranty period, you must carefully pack the product (preferably in the Dual Electronics Corp. agrees, at our original package) and ship it by prepaid option, during the warranty period, transportation with a copy of the original... -
Page 24: Specifications
DC206BT OPERATION Specifications CD Player Frequency response: 20Hz-20kHz Channel separation @ 1kHz: >60dB D/A converter: 1 Bit FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 8.5dBf 50dB quieting sensitivity: 10dBf Stereo separation @ 1kHz: >30dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: <42dBu... -
Page 25: Fcc Compliance
DC206BT OPERATION FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
