The illustrations in this manual are using the TX-5410 as an example for explanation. Note that your printer may look different from these
ENGLISH
illustrations in some cases.
The specifications and appearance of this product are subject to change without notice.

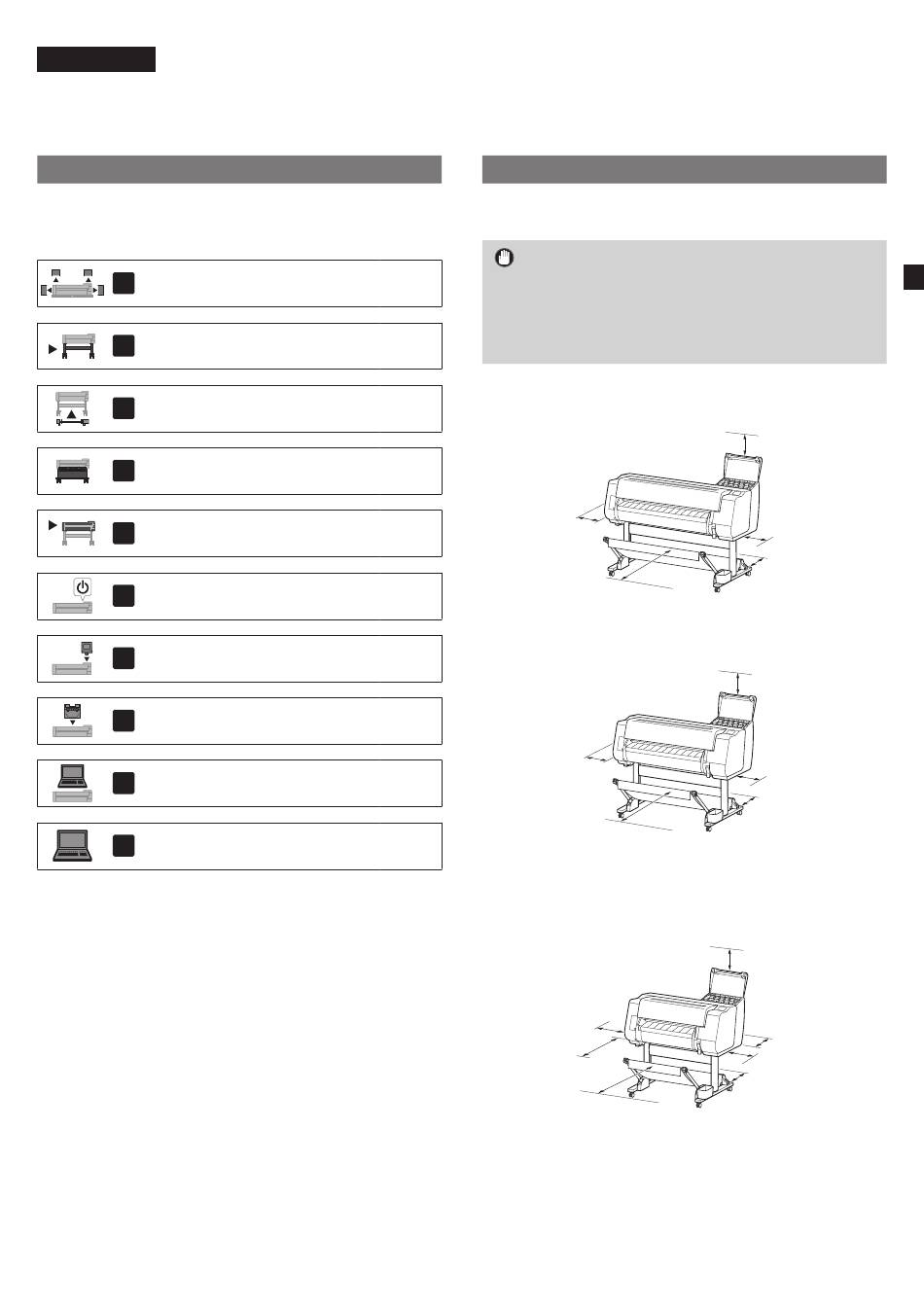

Overview of Setup
Set up the printer using the following procedure. Note that if an error
message appears during setup or other problems occur, refer to "Responding
to Messages" on p. 13.
1
Removing the Packaging Material
2
Assembling the Printer Stand
3
Attaching the Roll Unit
4
Assembling the Stacker
5
Installing the Printer
6
Turning On the Printer
7
Installing the Ink Tanks
8
Installing the Print Head
Selecting the Method of Connecting
9
to Your Computer
Installing the Software on Your
10
Computer
Loading Paper
Storage Location for Accessories and Consumables
Printing From a Smartphone or Tablet
Displaying the Online Manual
Responding to Messages
Confirming the Installation Space
When installing the printer, it is recommended that you secure the following
space around the printer.
Important
● The printer stand, roll unit and stacker may be options depending on
4
Page
the model you purchased. Please note that the required space differs
depending on whether the options are used or not.
● The space required in front of the printer varies depending on how the
4
Page basket is used.
■
TX-5410
Required space (W x D x H)
4
Page
1,993 × 1,684 × 1,560 mm
4
Page
4
Page
5
Page
■
TX-5310
Required space (W x D x H)
6
1,790 × 1,684 × 1,560 mm
Page
8
Page
10
Page
11
Page
■
TX-5210
Required space* (W x D x H)
1,510 × 1,684 × 1,560 mm
12
Page
Required space** (W x D x H)
12
1,510 × 1,434 × 1,020 mm
Page
12
Page
12
Page
13
Page
* When using the SD-21 printer stand
** When not using the printer stand
1
200 mm
600 mm
200 mm
600 mm
200 mm
600 mm**
600 mm*
150 mm
200 mm
100 mm
150 mm
200 mm
100 mm
150 mm
100 mm**
200 mm
100 mm*
