Larson Electronics EPL-16BS-1X150LED-X24I-C1D1-200 Instruction Manual

EPL-16BS-1X150LED-X24I-C1D1-200

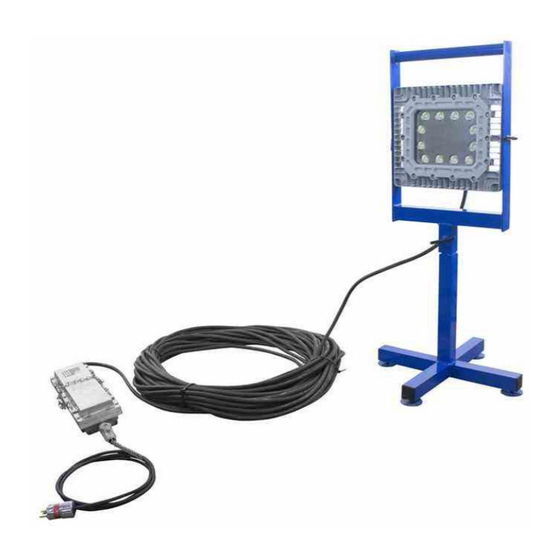

150 Watt LED Explosion Proof Light
Base Stand Mount 120-277V to 24V-200' Cord-C1D1 Transformer
Instruction Guide
Thank you for your purchase of the Larson Electronics EPL-16BS-1X150LED-X24I-C1D1-200 Explosion Proof Base
Stand Light. This light is completely assembled, tested and ready for use when shipped from factory. Please follow the
steps below in order to operate and maintain this product.
IMPORTANT
READ CAREFULLY BEFORE OPERATING THIS LIGHT. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. IF UNSURE
ABOUT ANY PART OF THESE INSTRUCTIONS, CONSULT A QUALIFIED ELECTRICAL PROFESSIONAL. THE EPL-16BS-
1X150LED-X24I-C1D1-200 MUST BE OPERATED IN ACCORDANCE WITH NATIONAL ELECTRICAL CODE AND ALL APPLICABLE
LOCAL CODES. PROPER GROUNDING IS REQUIRED FOR SAFETY.
FOR PERSONAL SAFETY, ALWAYS CONFIRM THE RATING OF ANY KNOWN HAZARDOUS OR POTENTIALLY HAZARDOUS
LOCATION WHERE THE LIGHT IS TO BE USED.
WARNING: OPERATE ONLY AT THE VOLTAGE LISTED ON THE PRODUCT LABEL.
WARNING: TO PREVENT IGNITION OF A HAZARDOUS ATMOSPHERE, THE SUPPLY CIRCUIT SHOULD BE DISCONNECTED
WHEN INSTALLING OR PERFORMING ANY MAINTENANCE ON THIS UNIT.
WARNING: WHEN USING THIS LIGHT IN HAZARDOUS LOCATIONS, CHECK THE OPERATING TEMPERATURE LIMITS PRIOR
TO DEPLOYMENT TO BE SURE IT CONFIRMS TO THE ENVIRONMENTAL TEMPERATURE RESTRICTIONS AND NEC
CLASSIFICATIONS. CHECK THE FIXTURE'S METAL NAMEPLATE FOR TEMPERATURE (T) RATINGS.
WARNING: DO NOT SCRATCH OR CHIP THE FRONT LENS. TURN THE POWER OFF BEFORE STARTING INSTALLATION OR
REPAIR.
WARNING: OPERATE THIS FIXTURE ONLY AT THE VOLTAGE OF YOUR SPECIFIC SUPPLY CIRCUIT. FAILURE TO DO SO
WILL RESULT IN DAMAGE TO THE FIXTURE.
WARNING: SUBSTITUTE COMPONENTS MAY IMPAIR EXPLOSION PROOF SAFETY.
INSTALLATION
Before operation, confirm that the power source will provide the correct voltage indicated on the product
nameplate. Ensure the receptacle will accept the cord cap attached to the light. This light is shipped
preconfigured with selected Beam Configuration and Cord Cap.
Check product nameplate for Ratings and Approvals.
Place the light in the desired location and run its power cord to a compatible power source. Ensure all safety
requirements are followed for the hazardous area. Light head can separate from base stand as required. To
install light head, simply slide over base stand and tighten the hand screw. Ensure light head is fully seated
before tightening hand screw. This can be loosened to rotate the light head 360° horizontally. Magnetic feet
help create a strong pull to stabilize the light fixture during deployment. This helps reduce movement of the
light from vibrations or accidental bumps.
This light is instant-on and will illuminate once energized.
Voltage: 120-277V AC, 50/60Hz
Multi-voltage capability allows this light to be powered via
Check product nameplate for the correct input voltage! The attached
transformer converts high voltage to low voltage 24V DC.

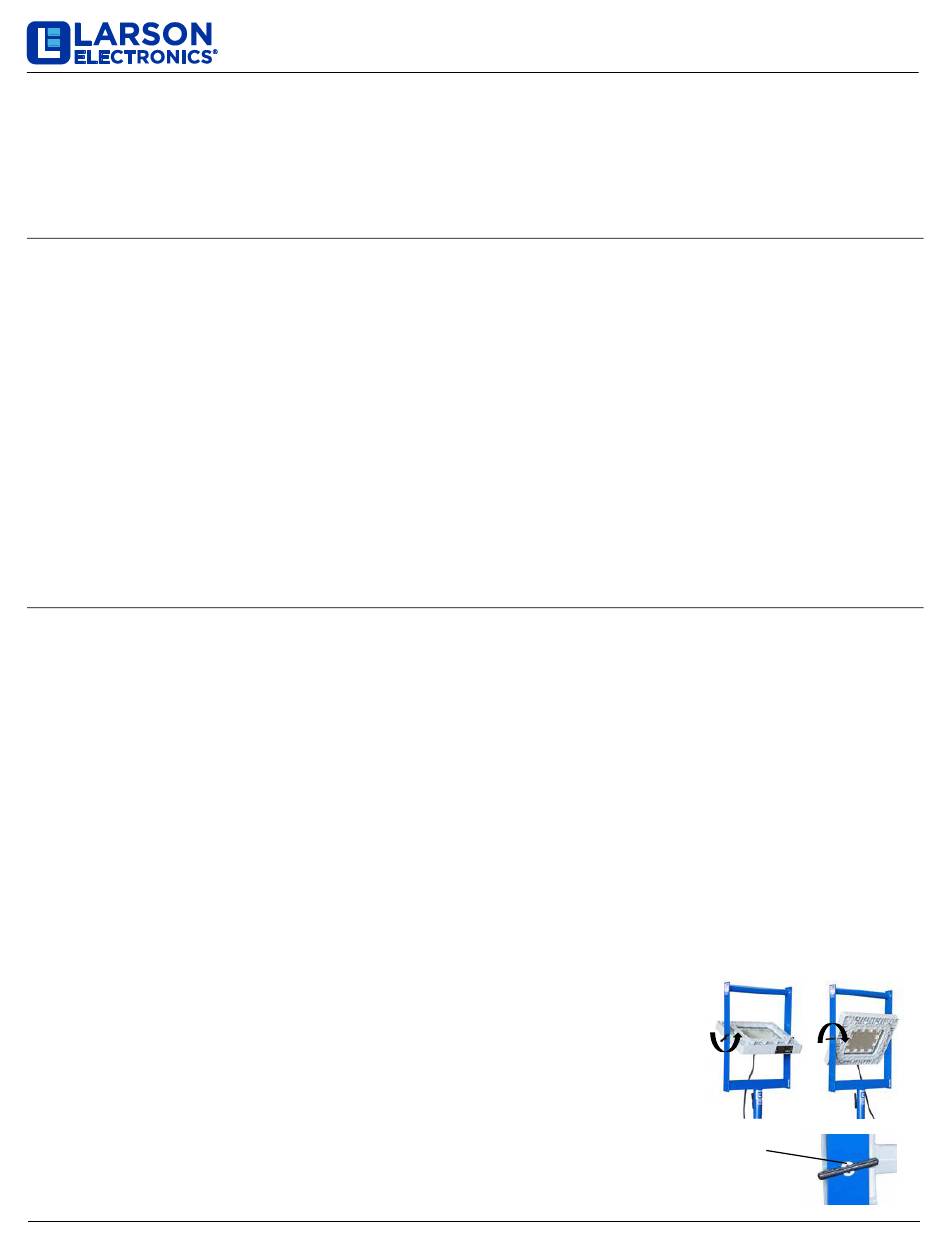

ADJUSTMENT
Loosen the hand screws on either side of the light to make vertical
adjustments. Tighten hand screws once desired angle is achieved.
The light head can be removed from the base stand for easy maneuverability
HAND SCREW
or for stowing. Simply loosen the hand screw toward the base of the light head
and lift off light head. Place light head on base stand and tighten hand screw to
replace.
