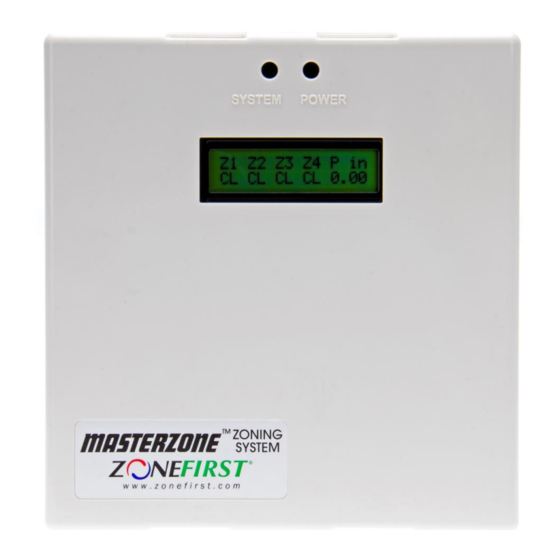

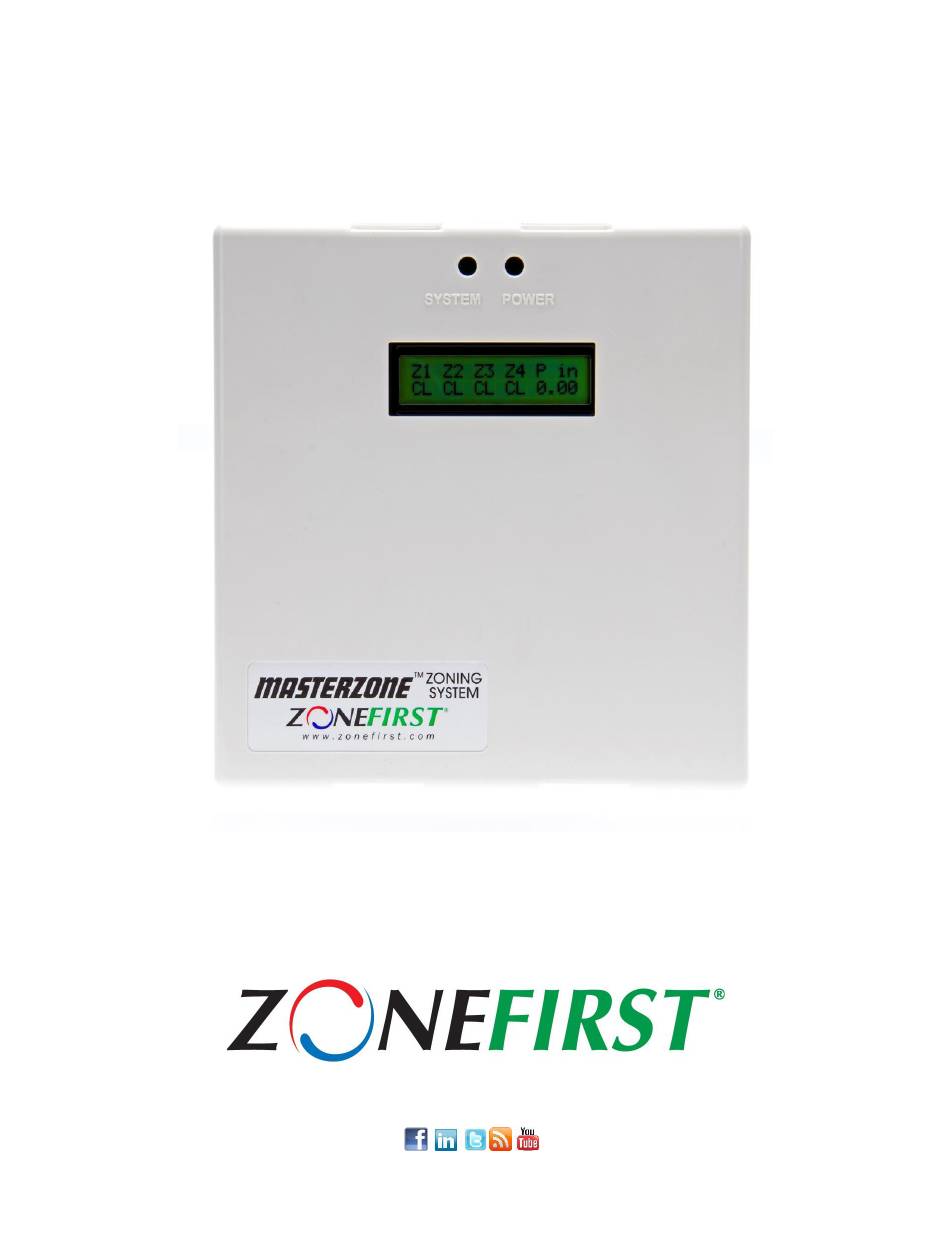

- Page 1 By-Pass Eliminator 24 ™ Model BPE24 For use with 24V Power Open/Power Closed Damper Motors and Control Panels Only Installation and Operating Instructions Controlling Your Comfort Room by Room F o l l o w u s o n...
- Page 2 The Bypass Eliminator 24™ (Model BPE24) Control is an relieve the air pressure back below the high set-point. When interface between a ZONEFIRST Zone Control Panel and its this occurs the zone dampers will stop. zone dampers. The BPE24 is used to eliminate the need for a traditional separate by-pass duct and damper directed back into the return duct.
- Page 3 Dead Band TROUBLESHOOTING There is a minimum 0.10”WC dead band between the upper and lower limits that insures there is a sufficient BPE24 Installation Instructions #BPE24 © 2021 ZONEFIRST...
- Page 4 24VAC to COM and CLOSE when the damper is to be CLOSED. When any zone is calling and its Green LED is ON, there is 24VAC across COM and OPEN. The only time BPE24 Installation Instructions #BPE24 © 2021 ZONEFIRST...
- Page 5 By-Pass Eliminator 24™ Wiring Diagram To 24V AC on Zone Panel NOTE: If there is a Specific zone that should not be used to relieve air, wire zone damper directly to zone panel. BPE24 Installation Instructions #BPE24 © 2021 ZONEFIRST...
