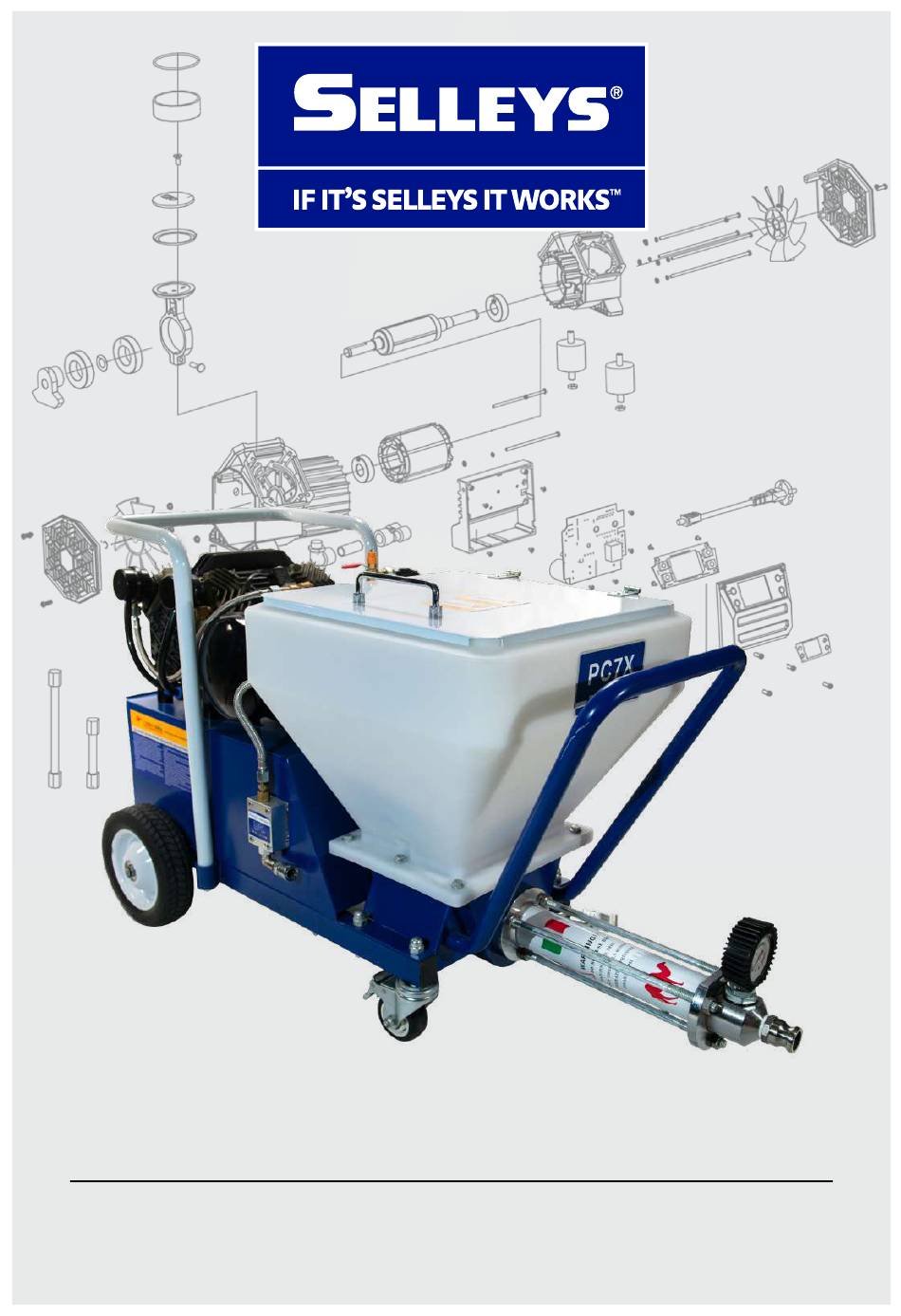

- Page 1 SELLEYS PLASTCOAT PC7X WITH AIR COMPRESSOR OPERATING MANUAL...
-
Page 2: Table Of Contents
SELLEYS equipment. Servicing should ONLY be carried out by SELLEYS or an authorised distributor of SELLEYS equipment. If these conditions are not met, the operator assumes all liability for injury and property damage arising from the use of this unit. -
Page 3: 1.1 General Safety Precautions
Fully inform the medical team about the coatings or solvents involved, as some coatings are toxic when injected directly into the bloodstream. For serious injuries, a plastic surgeon or reconstructive hand surgeon should be consulted. OPERATING MANUAL – SELLEYS PLASTCOAT PC7X WITH AIR COMPRESSOR... - Page 4 Vapours from paints, solvents, insecticides, and other materials can be harmful in the event of inhalation or contact with any part of the body. Symptoms include severe nausea, fainting and poisoning. ALWAYS • use a respirator or mask • wear protective eyewear • wear protective clothing OPERATING MANUAL – SELLEYS PLASTCOAT PC7X WITH AIR COMPRESSOR...
-
Page 5: Earthing Instructions
Use of an undersized cord causes a drop in line voltage, loss of power and overheating. A list of the materials used in the construction of this unit is available upon request for the purpose of determining compatibility with coating materials. OPERATING MANUAL – SELLEYS PLASTCOAT PC7X WITH AIR COMPRESSOR... -
Page 6: Materials
SELLEYS dealer. MATERIALS NOT SUITABLE FOR USE IMPORTANT Never use this unit for spraying oily materials. If you need to spray oily materials, please contact an authorised SELLEYS distributor for further advice. SPRAY REAL STONE PAINT WITH CAUTION... -
Page 7: Main Components
Oil seal Three-position switch Oil seal cartridge Potentiometer Auger ON/OFF switch Flat head pin Power indicator R cotter pin Speed indicator Hopper inlet Water separator Screw Remote controller Rubber sleeve Hopper OPERATING MANUAL – SELLEYS PLASTCOAT PC7X WITH AIR COMPRESSOR... -
Page 8: Operating Instructions
Start the machine and wait for the material to flow out from the other end of the high-pressure pipe NOTE: Remove the nozzle before commencing these steps to prevent the nozzle from being blocked by remaining old material in the material tube. Figure 1 Figure 2 OPERATING MANUAL – SELLEYS PLASTCOAT PC7X WITH AIR COMPRESSOR... -
Page 9: Starting Up
NOTE: Remember to remove the nozzle before filling the hopper to prevent residual old material in the material pipe from clogging the nozzle. IMPORTANT This material feeding process must be performed to lubricate the pipe wall before the standard material to be sprayed is poured in. OPERATING MANUAL – SELLEYS PLASTCOAT PC7X WITH AIR COMPRESSOR... -
Page 10: Shutting Down And Cleaning
(Figure 7). Then turn it on and wait until the cleaning ball is discharged from the other end of the tube. Figure 7 OPERATING MANUAL – SELLEYS PLASTCOAT PC7X WITH AIR COMPRESSOR... -
Page 11: Malfunctions
3. The screw sleeve is worn 3. Replace screw sleeve 4. The nozzle is too small and the gun 4. Remove, clean and reattach nozzle, hole is blocked then increase the orifice size OPERATING MANUAL – SELLEYS PLASTCOAT PC7X WITH AIR COMPRESSOR... - Page 12 Selleys is a subsidiary of Nippon Paint (Singapore) Co. Pte Ltd 1 First Lok Yang Road, Jurong, Singapore 629728 Tel: 6265 5355 (Main Line) www.selleys.com.sg...
