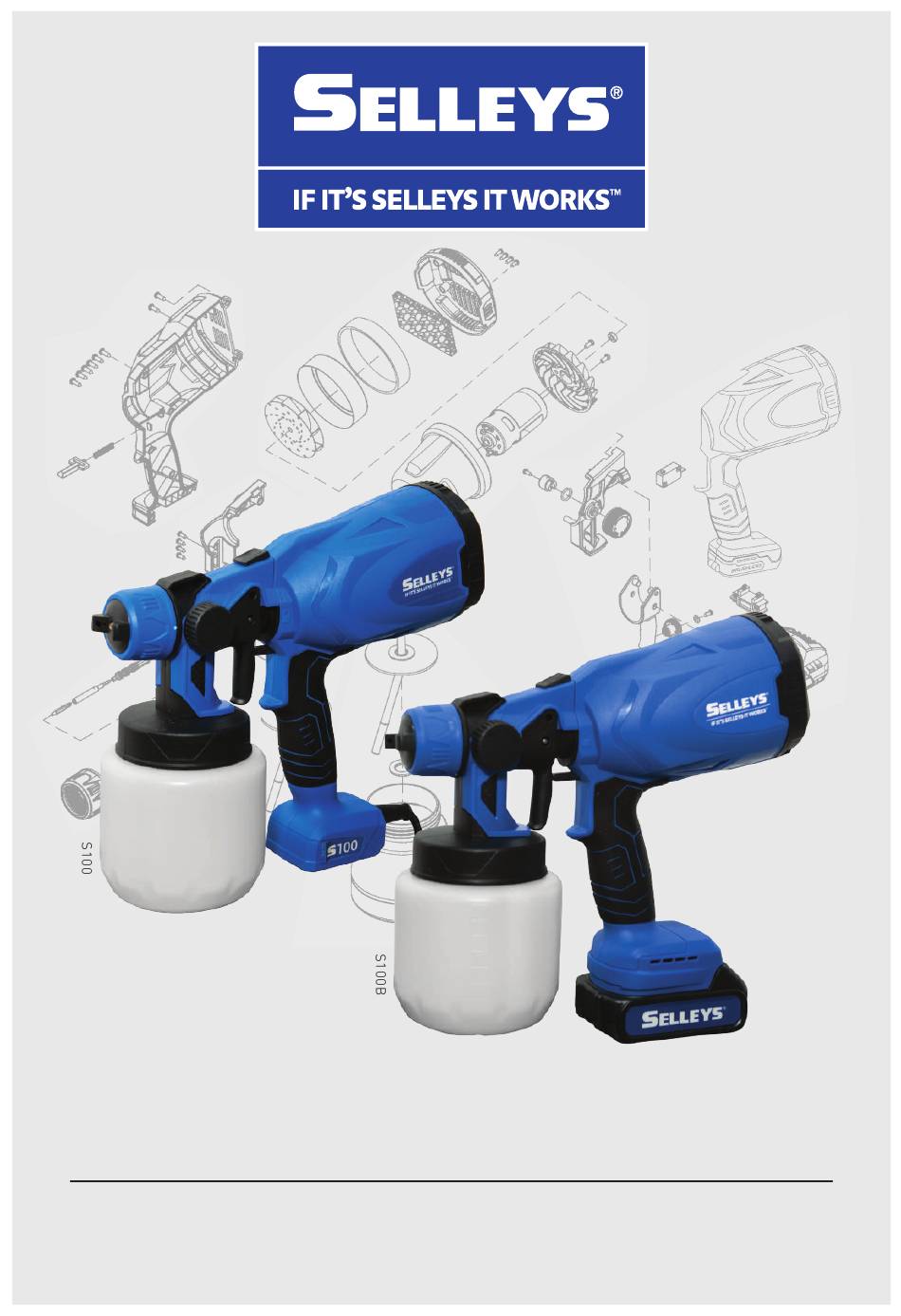

- Page 1 SELLEYS S100/S100B ELECTRIC SPRAYER OPERATING MANUAL...
-
Page 2: Table Of Contents
SELLEYS equipment. Servicing should ONLY be carried out by SELLEYS or an authorised distributor of SELLEYS equipment. If these conditions are not met, the operator assumes all liability for injury and property damage arising from the use of this unit. -
Page 3: General Safety Precautions
Fully inform the medical team about the coatings or solvents involved, as some coatings are toxic when injected directly into the bloodstream. For serious injuries, a plastic surgeon or reconstructive hand surgeon should be consulted. OPERATING MANUAL – SELLEYS S100/S100B... - Page 4 Vapours from paints, solvents, insecticides, and other materials can be harmful in the event of inhalation or contact with any part of the body. Symptoms include severe nausea, fainting and poisoning. ALWAYS • use a respirator or mask • wear protective eyewear • wear protective clothing OPERATING MANUAL – SELLEYS S100/S100B...
-
Page 5: Earthing Instructions
• coatings containing solvents • dispersions Do not spray coatings other than those listed above without the prior approval of SELLEYS or the authorised distributor of this unit. PREPARATION OF COATING MATERIALS Always filter and stir the coating material before application. To prevent downtime, make sure that no air bubbles are introduced, especially when stirring the coating material with motor-driven agitators. -
Page 6: Equipment
EQUIPMENT Please read the following important information carefully. 8 33 OPERATING MANUAL – SELLEYS S100/S100B... -
Page 7: Operating Instructions
RUN-OUT TIME (SECONDS) Oil enamel 25-60 Oil-based primer 30-60 Oil stain No thinning required Clear sealer No thinning required Polyurethane No thinning required Varnish 20-60 Lacquer sanding sealer 25-35 Lacquer 25-35 Automotive finishes 20-40 Latex 45-90 OPERATING MANUAL – SELLEYS S100/S100B... -
Page 8: Preparing And Filling The Sprayer
Hold the motor handle with your hand and rotate your right hand counter-clockwise 90° Suction c.) When the gun and host are parallel, it is locked Tube Pour material into container, making sure not to exceed 800ml OPERATING MANUAL – SELLEYS S100/S100B... -
Page 9: Adjusting The Spray Length
The gun spray pattern can be changed from a horizontal oval fan pattern to a round pattern by adjusting the nozzle. To spray, open the power switch, pull the trigger, and the paint will spray from the nozzle. Round Pattern OPERATING MANUAL – SELLEYS S100/S100B... -
Page 10: Correct Method Of Spraying
Spraying Spraying Upwards Downwards REPLACING THE NOZZLE AND NEEDLE While disassembling the nozzle, pull the trigger first, then press and remove the nozzle. Rotate to remove the needle. OPERATING MANUAL – SELLEYS S100/S100B... -
Page 11: Malfunctions
1. Adjust the material flow or decrease the movement of the spray gun H. Large ‘cloud’ of paint 1. Spray gun is too close to the surface 1. Move gun away from the surface and being sprayed reduce paint flow OPERATING MANUAL – SELLEYS S100/S100B... - Page 12 Selleys is a subsidiary of Nippon Paint (Singapore) Co. Pte Ltd 1 First Lok Yang Road, Jurong, Singapore 629728 Tel: 6265 5355 (Main Line) www.selleys.com.sg...
