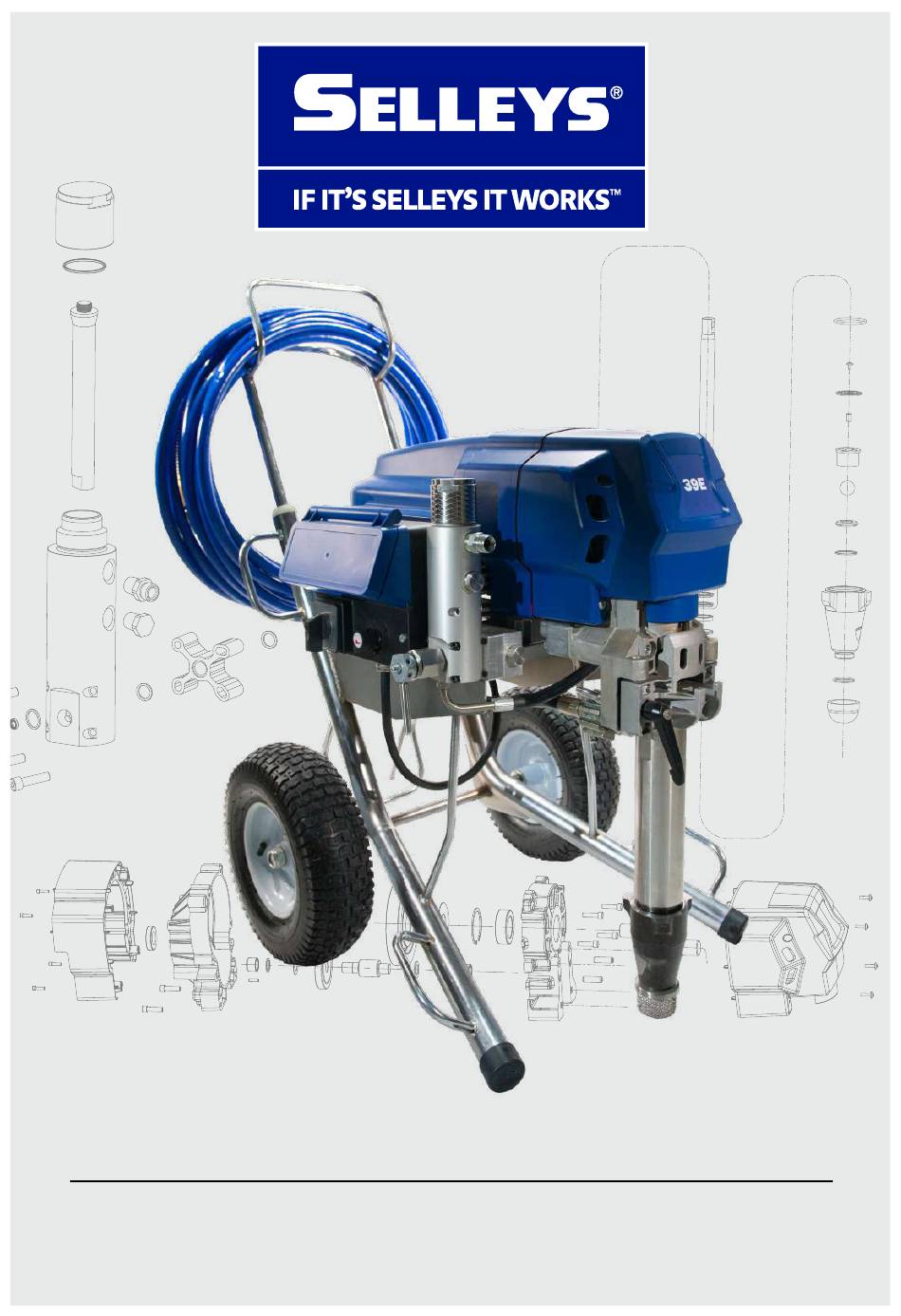

- Page 1 SELLEYS S39E AIRLESS SPRAYPACK OPERATING MANUAL...
-
Page 2: Table Of Contents
In Case of Interrupted Operation CLEANING AND MAINTENANCE Cleaning and Shutting Down Cleaning the Airless Spray Gun Disassembly of the Gun Filter Assembly of the Gun Filter MALFUNCTIONS Corrective Measures for Common Malfunctions Error Codes PARTS AND ASSEMBLY OPERATING MANUAL – SELLEYS S39E... -
Page 3: Safety Information
SELLEYS equipment. Servicing should ONLY be carried out by SELLEYS or an authorised distributor of SELLEYS equipment. If these conditions are not met, the operator assumes all liability for injury and property damage arising from the use of this unit. -
Page 4: 1.1 General Safety Precautions
Fully inform the medical team about the coatings or solvents involved, as some coatings are toxic when injected directly into the bloodstream. For serious injuries, a plastic surgeon or reconstructive hand surgeon should be consulted. OPERATING MANUAL – SELLEYS S39E... - Page 5 Vapours from paints, solvents, insecticides, and other materials can be harmful in the event of inhalation or contact with any part of the body. Symptoms include severe nausea, fainting and poisoning. ALWAYS • use a respirator or mask • wear protective eyewear • wear protective clothing OPERATING MANUAL – SELLEYS S39E...
-
Page 6: Earthing Instructions
• place pail on grounded surface such as concrete WARNING Incorrect installation of the earthing plug can result in electric shock. If you need to repair or replace the cord or plug, do not connect the green earthing wire to either blade terminal. OPERATING MANUAL – SELLEYS S39E... -
Page 7: Coatings
• coatings containing solvents • dispersions Do not spray coatings other than those listed above without the prior approval of SELLEYS or the authorised distributor of this unit. PREPARATION OF COATING MATERIALS Always filter and stir the coating material before application. To prevent downtime, make sure that no air bubbles are introduced, especially when stirring the coating material with motor-driven agitators. -
Page 8: Equipment
Flow Rate (LPM) 8.3L Min./Max. Nozzle Size 0.045” Max. Pressure 20 mPa Weight 68kg MAIN COMPONENTS NO. PRODUCT NAME NO. PRODUCT NAME ON/OFF switch Fluid outlet Pressure control knob Return hose Relief valve Suction Tube OPERATING MANUAL – SELLEYS S39E... -
Page 9: Operating Instructions
Startup to flush out storage oil shipped in sprayer. Use water to flush water-based paint and appropriate solvent to flush oil-based paint and storage oil. Fill throat packing nuts with separating oil to prevent premature packing wear. Do this each time you spray. OPERATING MANUAL – SELLEYS S39E... -
Page 10: Startup
Wait until the cleaning agent discharges from the return hose Turn the relief valve and set to "SPRAY" position Pull the trigger of the spray gun Spray the cleaning agent from the unit into a container OPERATING MANUAL – SELLEYS S39E... -
Page 11: Installation Of Spray Tip
Trigger the spray gun and spray into a container until the coating material exits the spray gun continuously Increase the pressure by slowly turning the pressure control knob clockwise Check the spray pattern and increase the pressure until the desired atomisation is attained The unit is ready to spray OPERATING MANUAL – SELLEYS S39E... -
Page 12: Method Of Spraying
Leave the suction tube (or the suction hose and return hose) immersed in the coating material, or in a cleaning agent IMPORTANT If a fast-drying or two-component coating material is used, ensure that the unit is rinsed with a suitable cleaning agent within the processing time. OPERATING MANUAL – SELLEYS S39E... -
Page 13: Cleaning And Maintenance
Put the return hose in a container and turn the relief valve Increase pressure slowly. Hold gun against the paint to "PRIME" position container. Unlock the trigger, and flush the gun until the flushing fluid appears. OPERATING MANUAL – SELLEYS S39E... - Page 14 Switch OFF power. Wipe sprayer, hose and gun with a rag soaked in water or mineral spirits IMPORTANT The container must be earthed in case of coating materials that contain solvents. OPERATING MANUAL – SELLEYS S39E...
-
Page 15: Cleaning The Airless Spray Gun
Follow these steps carefully. Place the gun filter (Figure 1.3) with the long cone pointing up into the gun housing Screw the grip (1.2) into the gun housing and tighten Slot in the protective guard (1.1) OPERATING MANUAL – SELLEYS S39E... -
Page 16: Malfunctions
3. Thin the paint according to the manufacturer’s instructions H. Sprayer works but display is 1. Display has a loose connection of fault 1. Check and tighten the connections, and blank replace the display if necessary OPERATING MANUAL – SELLEYS S39E... -
Page 17: Error Codes
1. Check that the pressure the software differs from the sensor is well connected actual pressure 2. Replace pressure sensor 3. Replace circuit board ERR_18 Communication failure No communication signal 1. Replace circuit board is received in the chip OPERATING MANUAL – SELLEYS S39E... -
Page 18: Parts And Assembly
Please read the following important information carefully. NO. NAME QUANTITY NO. NAME QUANTITY 1001 Trolley frame 1005 Screw M4 * 25mm 1002 Handle holder 1006 Hexagon nut M4 1003 Hexagon nut M18 1007 Screw M5 * 5mm 1004 Pneumatic tyre OPERATING MANUAL – SELLEYS S39E... - Page 19 Ball bearing 6007 Screw ST4.8 * 16P * 15mm Circlip for hole ø62 Rear cover 105A Circlip for hole ø35 Cross-head screw Electric motor Hexagon machine screw M8 * 20mm Hexagon screw M8 * 20mm OPERATING MANUAL – SELLEYS S39E...
- Page 20 406 Piston rod pin ø11.1 * 50mm 307 Piston hexagon screw BM10 * 80 8 60mm 407 Spring wire (OD) ø1.5 * (ID) ø36.4 308 Shank screw BM10 * 80 8 60mm 309 Double-sided washer M10 310 Nut M10 x SUS304 OPERATING MANUAL – SELLEYS S39E...
- Page 21 534 Ceramic ball Ø12.7 517 Ceramic ball Ø14.30 535 Sealing ring (OD) Ø24.6 * (ID) Ø22.8 * 1.5T 518 Piston valve seat 536 Single valve body 519 Seat retaining nut 537 O-ring (ID) Ø23.6 * Ø3.55 OPERATING MANUAL – SELLEYS S39E...
- Page 22 (OD) Ø10.1 * (ID) Ø4 * 2.5T Hexagon nut Return valve seat Hexagon screw M8 * 80mm Return valve assembly Sealing ring (ID) Ø12.7 * (OD) Ø16.5 8 1.5 (H) O-ring (ID) Ø6 * Ø1.5 Return valve nut Filter holder OPERATING MANUAL – SELLEYS S39E...
- Page 23 918 DESC-Control primary panel 908 Rubber gasket 919 DESC-Control panel front cover 909 Pressure control knob fixing rod 920 Screw M5 * 10mm 910 Hexagon screw 921 Hexagon screw M8 * 20mm 911 Pressure control knob (primary) OPERATING MANUAL – SELLEYS S39E...
- Page 24 Selleys is a subsidiary of Nippon Paint (Singapore) Co. Pte Ltd 1 First Lok Yang Road, Jurong, Singapore 629728 Tel: 6265 5355 (Main Line) www.selleys.com.sg...
