Larson Electronics LEDWP-600E-E2E-10C Quick Start Manual

60 Watt LED Low Profile Wall Pack Light With Glare Shield
Thank you for your purchase of the Larson Electronics LEDWP-600E-E2E-10C Wall Pack Light. Please follow
the steps below in order to install, operate and maintain this product.
IMPORTANT
READ CAREFULLY BEFORE INSTALLING THIS FIXTURE. SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE. THE LEDWP-600E MUST BE WIRED IN ACCORDANCE WITH NATIONAL ELECTRICAL CODE AND
ALL APPLICABLE LOCAL CODES. PROPER GROUNDING IS REQUIRED FOR SAFETY.
WE STRONGLY ENCOURAGE ONLY A LICENSED ELECTRICIAN INSTALL, OPERATE AND MAINTAIN THIS
PRODUCT. IF YOU ARE NOT QUALIFIED OR UNFAMILIAR WITH ANY ASPECT OF THIS INSTRUCTION SHEET,
CONSULT AN ELECTRICIAN. THERE ARE NO SERVICEABLE PARTS INSIDE.
WARNING: MAKE SURE POWER IS TURNED OFF BEFORE STARTING THE
INSTALLATION OR PERFORMING ANY MAINTENANCE.
RISK OF FIRE/ELECTRIC SHOCK –
RISK OF PERSONAL INJURY –
RISK OF BURN –
ALLOW FIXTURE TO COOL BEFORE SERVICING.
MOUNTING
The LED wall pack includes the necessary hardware for installing the mounting bracket, cord grip, and glare
shield. Follow the guideline below to properly assemble and install the unit.
The wall pack light includes the LED light, trunnion mount, glare shield, and hardware for installing the center
cord grip. Some models may omit hardware depending on selected options.
Ambient Temperature Range: -25°C to +60°
1. Begin by choosing a location to install the fixture. This LED wall pack is IP68 waterproof, vapor proof,
and built to resist the damaging effects of an outdoor environment. This fixture should not be used in areas
with no ventilation or extreme ambient temperatures.
2. Affix the mount to your chosen surface. There are 3 predrilled holes on the trunnion bracket. 2 for
mounting and 1 for the cord grip. These can be used any way suitable for the location. Plan a way for
wiring to connect such as using a separate junction box and utilize the cord grip where necessary.
3. Attach lamp. The trunnion mount can be attached to the lamp in two locations, the lower area or middle
area on the back of the wall pack. Use the included ( 2 screws ❶ ) and ( 2 lock washers ❷ ) for
attaching the mount as shown in the diagram on page 2. The fixture can be placed in any direction.
WIRING
We strongly encourage a licensed electrician install this product, especially in outdoor locations where
weatherproofing may be required. Universal voltage driver permits operation at 100V - 277V AC, 50 or 60Hz.
Warning: Check product label for correct input voltage!

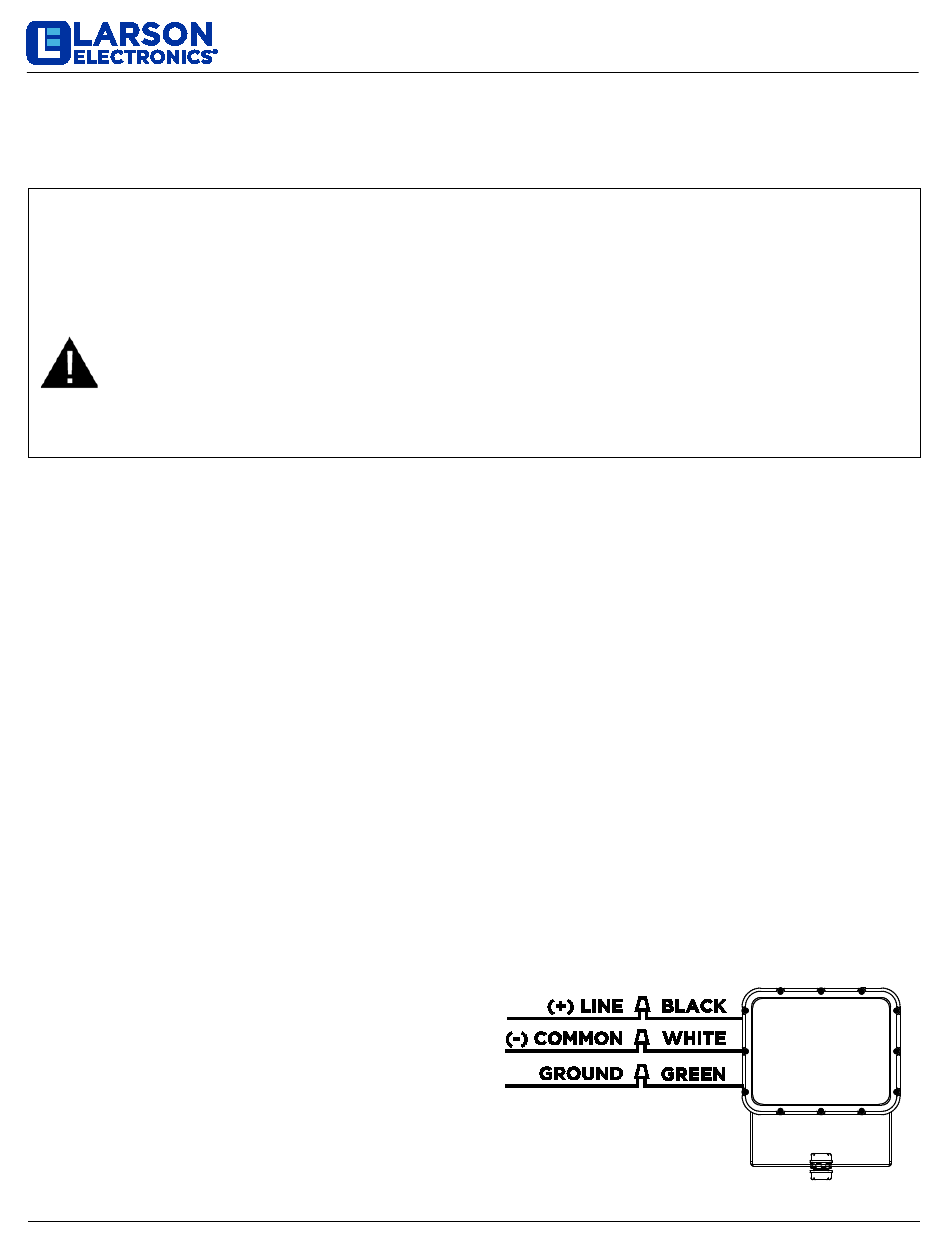

Attach supply line wires to the appropriate light
fixture wires as shown in the diagram 
This unit comes pre-wired from factory with the
selected cord cap. Plug into matching receptacle
outputting voltage on nameplate. Take precautionary
steps for weatherproofing all connections if installed in
a location where water may come in contact with the
unit. Ensure the unit is properly grounded.
Larson Electronics, LLC
Daisy Chain Capable - U Bracket Mount
DISCONNECT POWER AT BREAKER BEFORE INSTALLING OR SERVICING.
FIXTURE MAY BECOME UNSTABLE OR DAMAGED IF NOT INSTALLED PROPERLY.
Phone: (800) 369-6671 Fax: (903) 498-3364
LEDWP-600E-E2E-10C
www.larsonelectronics.com 1 of 2
