Summary of Contents for Bartscher TSA300V

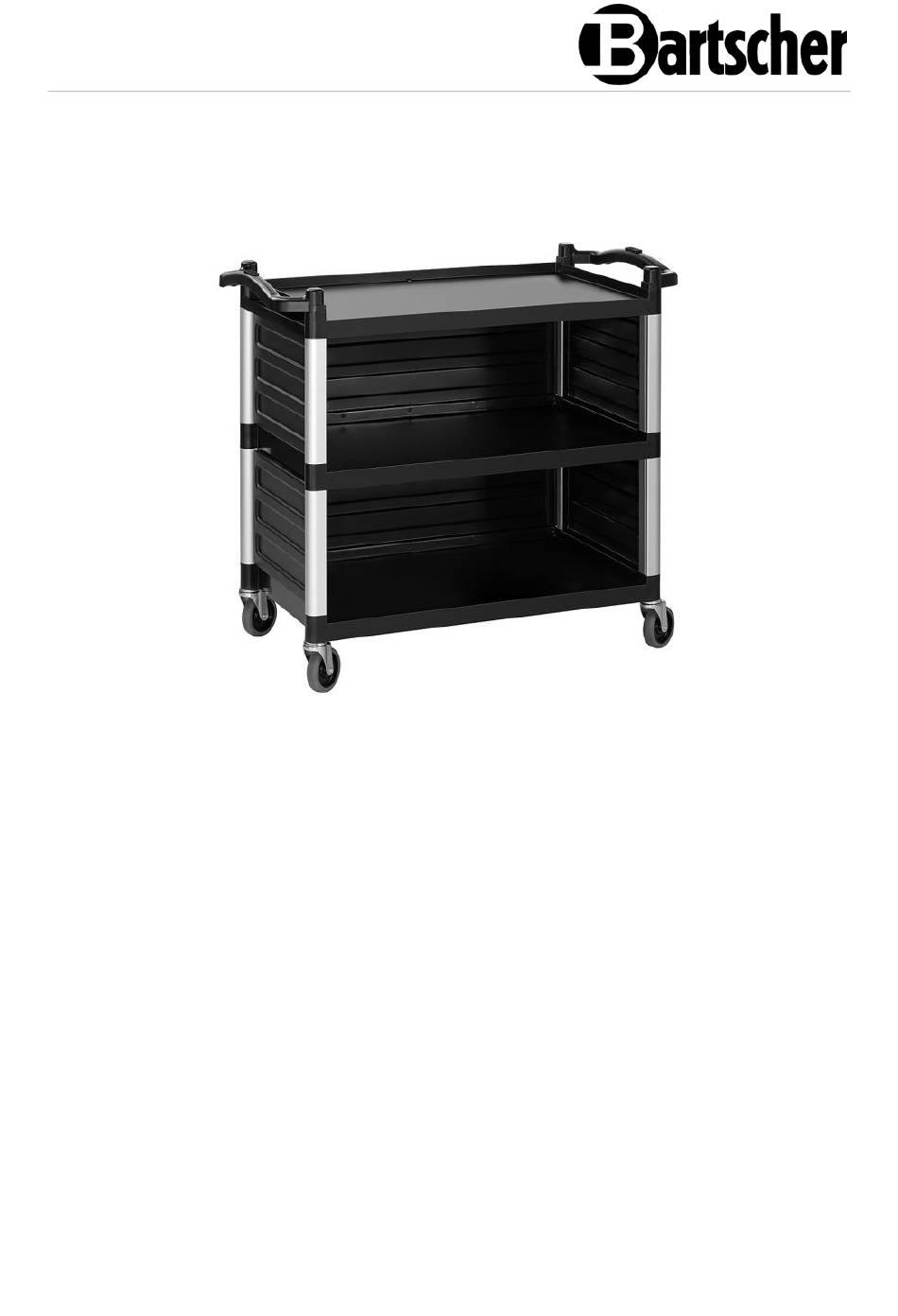

- Page 1 TSA300V 300055...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Service hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2023-03-03 Original instruction manual...
- Page 3 Technical Data Name: Serving trolley TSA300V 300055 Art. No.: Material: plastic, aluminium Number of shelves: Shelf dimensions (W x D), in mm: 785 x 485 Clearance between shelves, in mm: Max. load-bearing capacity per shelf, in Max. total load-bearing capacity, in kg:...
- Page 4 Version / Characteristics • Colour: black • Delivery form: self-assembly set, simple assembly • Purpose: – transportation – serving – cleaning • Version: shelves • Housing: 3-sided • Rim: at 3 sides • With handles <Endergebnis> Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use.
- Page 5 Accessories (not included in the delivery) Cleaning container set TSA300V for serving trolley TSA300V Waste container: W 343 x D 230 x H 440 mm Cutlery container: W 333 x D 230 x H 173 mm Weight: 2.0 kg Art. No. 300061 Fig.
- Page 6 Scope of Delivery / Part Name 1. Unpack the serving trolley and remove the packing material pursuant to environmental regulations. 2. Check completeness of delivery according to the list below and Fig. 2: Name Number Handle Top shelf Handle bolt Rear wall (large) Side wall (small) Spacer...
- Page 7 Fig. 2 300055 7 / 10...
- Page 8 Assembly 1. Under each shelf, check the marking for the bottom, centre or top shelves. 2. Start assembly with the bottom shelf (8, Fig. 2). 3. Place 4 spacers (6) in the corners of the bottom shelf. NOTE! Use a rubber mallet to hammer each spacer down until there are no gaps between the spacers and the corner fixings of the bottom shelf.
- Page 9 14. Lay the serving trolley on its side. 15. Use a rubber mallet to fix the swivel casters (9) to the bottom shelf (8) of the serving trolley. 16. Place the serving trolley on the swivel casters. Fig. 4 Loading the Serving Trolley 1.
- Page 10 Cleaning ATTENTION! For cleaning, do not use any scouring agents containing solvents nor corrosive cleaning agents. They may damage the surface. 1. Clean the serving trolley regularly with warm water and a soft, damp cloth. Use a mild cleaning agent when required. 2.
