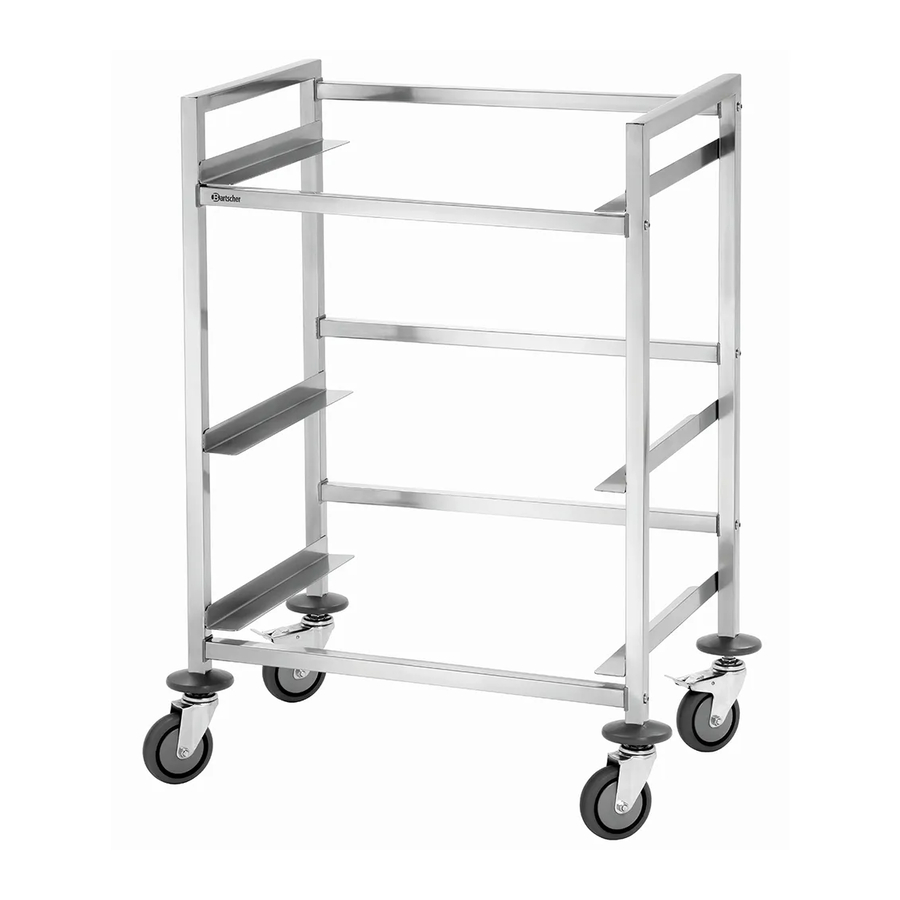

Bartscher ENK-3EB Manual

Hide thumbs Also See for ENK-3EB:

ENK-3EB

300064

Original-Gebrauchsanleitung

V1/1016

Table of Contents

Need help?

Do you have a question about the ENK-3EB and is the answer not in the manual?

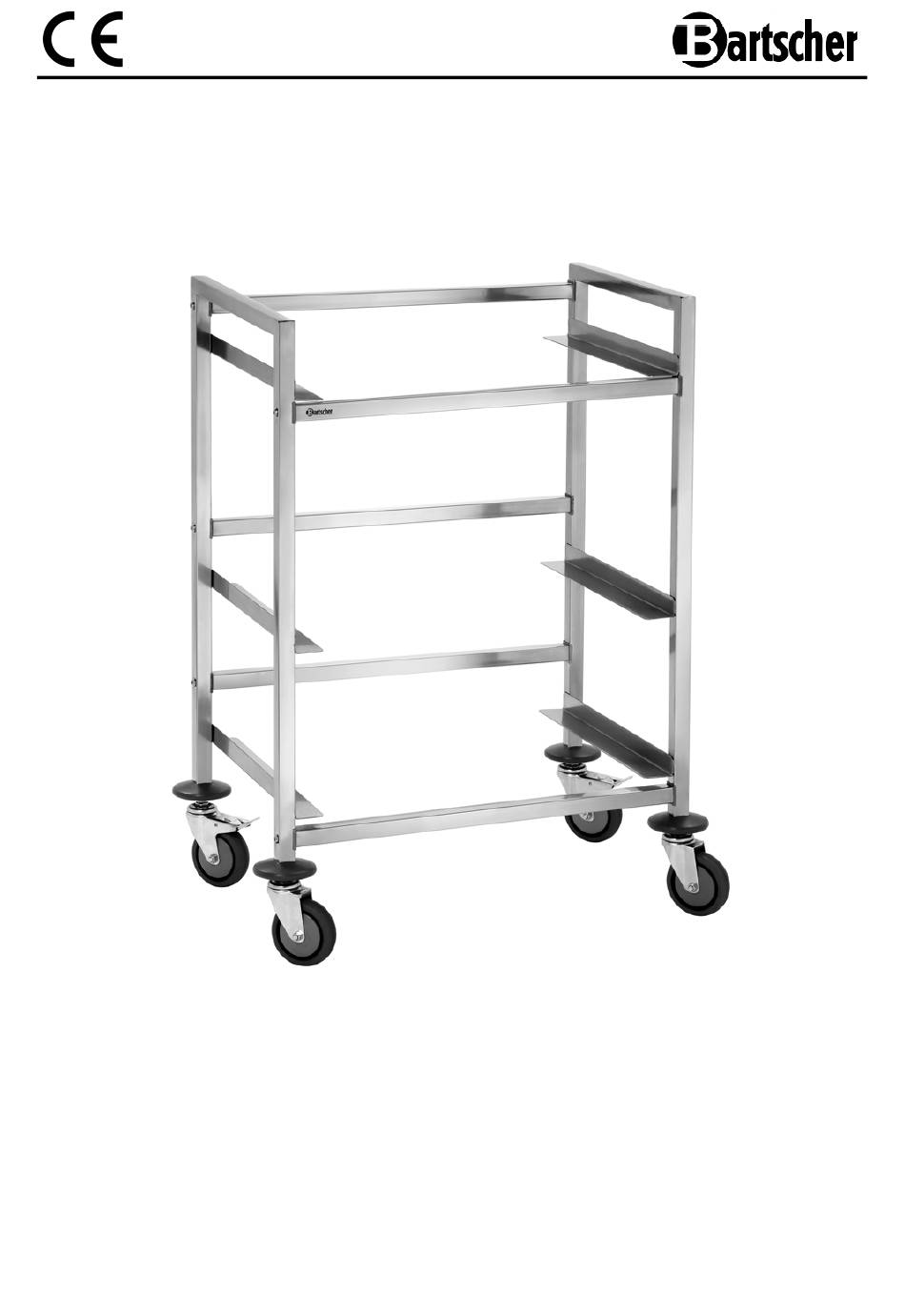

Page 1 ENK-3EB 300064 Original-Gebrauchsanleitung V1/1016...
Page 2 GB/UK Technical data --------------------------------------------------------------------------------------------------------------------- Name: • Trolley for cleaning ENK-3EB crates • 300064 Art. number: • Material: Nickel-chrome steel Realization: • Frame: pipes of square section 25.8 x 25.8 mm; Suitable for Euro-Norm E1, E2, E3 crates (meat / bakery products), dimensions: 600 x 400 mm 3 pairs of guides;...
Page 3 Delivery range / Part name Element Number Name Left and right side elements 1 + 2 with 3 initially mounted guides Cross members Castors with stoppers Castors without stoppers Buffers for castors Square washers Bolts Allen wrench - 6 -...
Page 4 Assembly 1. First, fasten 5 crossbars (3) to the left side element (1). For this purpose, insert one square washer (7) between the crossbar (3) and the side element (1) and between the side element (1) and the bolt (8), and then tighten it with the Allen wrench. 2.
Page 5 • Never use harsh cleaning agents that may damage the surface of the trolley for cleaning crates. • Dry the trolley for cleaning crates with a soft cloth. Bartscher GmbH Franz-Kleine-Str. 28 33154 Salzkotten phone: +49 (0) 5258 971-0 Germany...

300064
