Smart Double Switch 7
PRODUCT CODE
WDSL700
WDSN700
WDSLX700
WDSNX700
Smart Double Switch 7 Operating Instructions – www.widom.it
OPERATING INSTRUCTIONS
Controlled by Line signal – without meter function
Controlled by Null signal – without meter function
PRODUCT VARIANT
Controlled by Line signal
Controlled by Null signal
I
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CHERUBINI Smart Double Switch 7
Summary of Contents for CHERUBINI Smart Double Switch 7
- Page 1 PRODUCT CODE PRODUCT VARIANT WDSL700 Controlled by Line signal WDSN700 Controlled by Null signal WDSLX700 Controlled by Line signal – without meter function WDSNX700 Controlled by Null signal – without meter function Smart Double Switch 7 Operating Instructions – www.widom.it...
-
Page 2: Table Of Contents
Associations ...................................8 Special features ................................9 Timer Management..............................9 Power consumption management ..........................9 Offline setup Mode ................................9 Reset to the factory settings ............................9 Firmware Update ................................9 Configurations ................................10 Input Configuration ..............................10 Output Configuration: ..............................13 Smart Double Switch 7 Operating Instructions – www.widom.it... - Page 3 Timer management ..............................15 Association group management ..........................17 Central Scene management .............................20 Meter management ..............................21 Disposing the devices ..............................22 Compliance with directives ............................22 Warranty ..................................22 Legal Notes ...................................22 Smart Double Switch 7 Operating Instructions – www.widom.it...
-
Page 4: Device Description

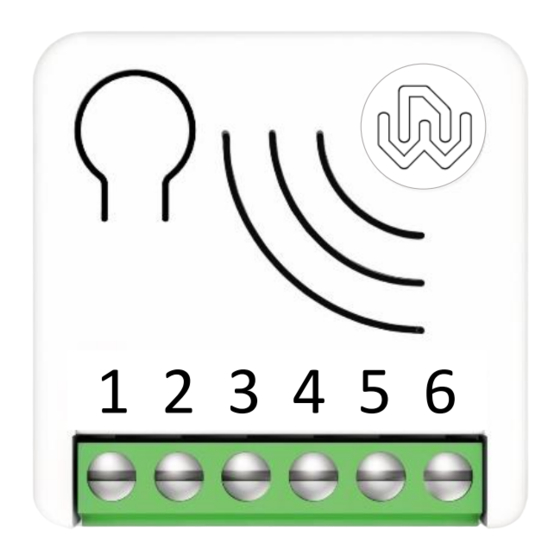

Device Description Smart Double Switch 7 is an ON/OFF control device designed to independently control two separate loads, suited for being controlled by both remote and local switches. Similarly to the other Smart Serie 7 devices, it can be fully integrated into pre-existing systems and configured to associate configurable behaviors to a specific number of clicks, in full integration with the Z-Wave™... -
Page 5: Technical Specifications
WARNING: Do not connect loads exceeding the maximum power load permitted by the relay contacts. WARNING: All connections must be performed according to the electrical diagrams provided. WARNING: The device must be installed in norm-compliant systems suitably protected from overloads and short circuits. Smart Double Switch 7 Operating Instructions – www.widom.it... -
Page 6: Electrical Connections Diagram
Electrical Connections diagram The device must be supplied by phase and neutral. There are two versions of Smart Double Switch 7 available, in order that you can choose the most suitable for your electrical system: • Version N: used in systems that require to be controlled by Neutral signal •... -
Page 7: Led Status Indicator
LED indicator starts a sequence of RED-BLUE blinks. The device is excluded from the network when the LED status indicator is solid RED and the App_status in the interface is OK. Smart Double Switch 7 Operating Instructions – www.widom.it... - Page 8 PIN code of the Z-Wave™ Device Specific Key (DSK) is required. The unique DSK code is printed on the product label. The first five digits of the key are highlighted and underlined to help the user identify the PIN code Pin Code Smart Double Switch 7 Operating Instructions – www.widom.it...
-
Page 9: Supported Command Classes
The color shown by the indicator will be: RED: if the device is included without Security BLUE: if the device is included in S2 Unauthenticated Mode GREEN: if the device is already included in S2 Authenticate Mode Smart Double Switch 7 Operating Instructions – www.widom.it... -
Page 10: Meter Command Class
Scale Value Watt Device Control Smart Double Switch 7 can control two separate loads by using an external switch for each channel, or from remote through a controller. Controlling the device by External Switches For the operation of the device within the Z-Wave™ network and controlling the loads connected to the device, control actions are performed on the switches. -
Page 11: Associations
Associations Smart Double Switch 7 can control other devices of both traditional and multi-channel type. It can also control other devices such as relays or dimmers. The device supports 7 association groups, each of which supports the association of up to 8 devices (nodes): Lifeline Group: Nodes belonging to this group will receive: notifications about device reset;... -
Page 12: Special Features
(for example only the change on the output due to double clicks). Power consumption management Smart Double Switch 7 is equipped with a very precise power metering functionality, therefore you can easily monitor the instantaneous power and cumulated energy for each channel. -
Page 13: Configurations
1 click and 2 clicks -> Parameter value must be 1 + 2 =3 1 click and 3 clicks -> Parameter value must be 1 + 4 =5 Default Value: 1 click, 2 clicks, 3 clicks, Hold down→15 Smart Double Switch 7 Operating Instructions – www.widom.it... - Page 14 1 click and 2 clicks -> Parameter value must be 1 + 2 =3 1 click and 3 clicks -> Parameter value must be 1 + 4 =5 Default Value: Disable →0 Smart Double Switch 7 Operating Instructions – www.widom.it...
- Page 15 1 click and 2 clicks -> Parameter value must be 1 + 2 =3 1 click and 3 clicks -> Parameter value must be 1 + 4 =5 Default Value: Disable →0 Smart Double Switch 7 Operating Instructions – www.widom.it...
-
Page 16: Output Configuration
Closed relay Parameter Default Size Parameter Name Description Number Value OUT2_TYPE Define the 2 output type. Parameters Values Min: 0 Max: 1 Value Description direct load or normally Open relay normally Closed relay Smart Double Switch 7 Operating Instructions – www.widom.it... - Page 17 (Both outputs can be OFF but they can never be ON simultaneously) Sequencing (Outputs are toggled in this order: both loads ON, only load 1 ON, only load 2 ON, both loads OFF) Smart Double Switch 7 Operating Instructions – www.widom.it...
-
Page 18: Timer Management
Time in tenth of seconds after which the output on ON_EP1_TIMEOUT Channel 1 will be switched On Parameters Values Min: 0 Max: 360000 Value Description 0-360000 Specific time expressed in tenth of seconds for Status change Smart Double Switch 7 Operating Instructions – www.widom.it... - Page 19 Time in tenth of seconds after which the output on ON_EP2_TIMEOUT Channel 2 will be switched On Parameters Values Min: 0 Max: 360000 Value Description 0-360000 Specific time expressed in tenth of seconds for Status change Smart Double Switch 7 Operating Instructions – www.widom.it...
-
Page 20: Association Group Management
1 click and 2 clicks -> Parameter value must be 1 + 2 =3 1 click and 3 clicks -> Parameter value must be 1 + 4 =5 Default value: 2 clicks →2 Smart Double Switch 7 Operating Instructions – www.widom.it... - Page 21 1 click and 2 clicks -> Parameter value must be 1 + 2 =3 1 click and 3 clicks -> Parameter value must be 1 + 4 =5 Default value: 2 clicks →2 Smart Double Switch 7 Operating Instructions – www.widom.it...
- Page 22 The value used to control G1 association group on G1_EP2_ASS_VALUE Channel 2. Parameters Values Min: 0 Max: 102 Value Description 0-99 specific value propagate (output 2 status to the associated device) toggle remote (change status ON/OFF of associate devices) Smart Double Switch 7 Operating Instructions – www.widom.it...
-
Page 23: Central Scene Management
1 click and 2 clicks -> Parameter value must be 1 + 2 =3 1 click and 3 clicks -> Parameter value must be 1 + 4 =5 Default value: all event →31 Smart Double Switch 7 Operating Instructions – www.widom.it... -
Page 24: Meter Management
Min: 0 Max: 100 Value Description No report is sent (for any power change) 1-100 The percentage of Power change from the last sent report that triggers a new meter report sequence Smart Double Switch 7 Operating Instructions – www.widom.it... -
Page 25: Disposing The Devices
Compliance with directives WiDom Srl declares that Smart Double Switch 7 is built in compliance with directive 2014/53/EU. The complete version of the Declaration of Conformity is available upon request at the following internet address www.widom.it.
