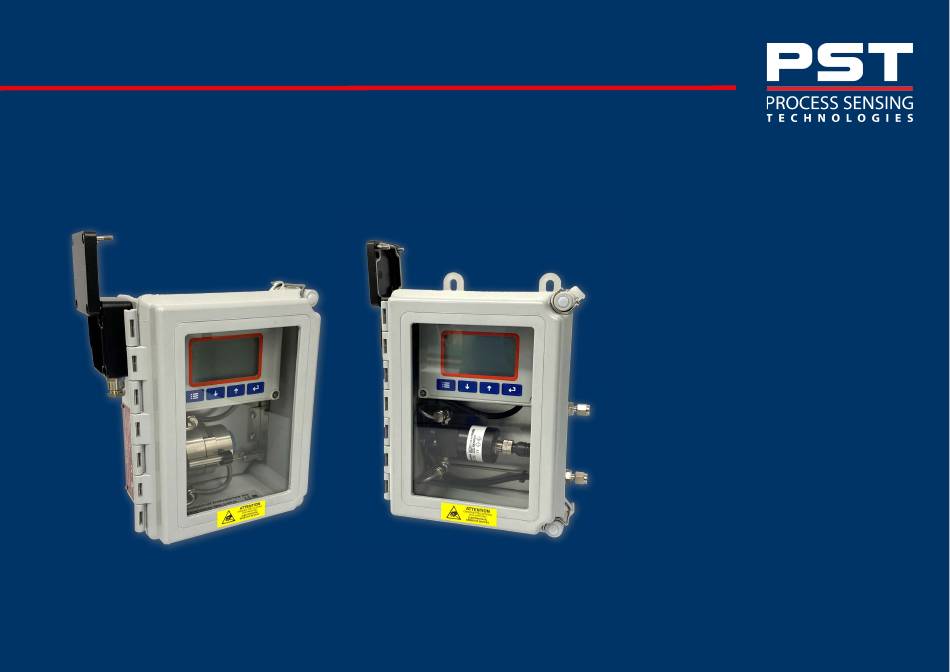

- Page 1 Loop Barrier Oxygen Analyzer Quick Start Guide First span calibration and measurement PST-QSG-3205-01 ProcessSensing.com 07/2023...
-
Page 2: Start Here
Loop Barrier Oxygen Analyzer Quick Start Guide First span calibration and measurement Welcome to the Quick Start Guide for first span calibration and first measurement using your loop barrier analyzer. Here, you will find information covering gas connection in section A, and first span calibration in section B. Please read the safety information below. -
Page 3: Gas Connection
Loop Barrier Oxygen Analyzer Quick Start Guide First span calibration and measurement A. Gas connection Now press and use to navigate to Calibration > Span Calibrate. NOTE: The calibration span gas should be 50...80% of the required to enter the span gas value. Ensure the reading has stabilized measurement range or one range above. -
Page 4: Making Your First Measurement
Loop Barrier Oxygen Analyzer Quick Start Guide First span calibration and measurement C. Gas disconnection Bottom sensor housing Stop the flow of gas. Top sensor housing Disconnect your gas line from the port on the analyzer. Immediately reconnect process gas. Loosen NOTE: Exposing ppm sensor to ambient air for extended periods may cause irreversible damage to sensor. -
Page 5: Useful Links
Loop Barrier Oxygen Analyzer Quick Start Guide First span calibration and measurement F. Useful links Scan below for more information. Figure 4 - Wiring your analyzer ProcessSensing.com... - Page 6 ProcessSensing.com...
