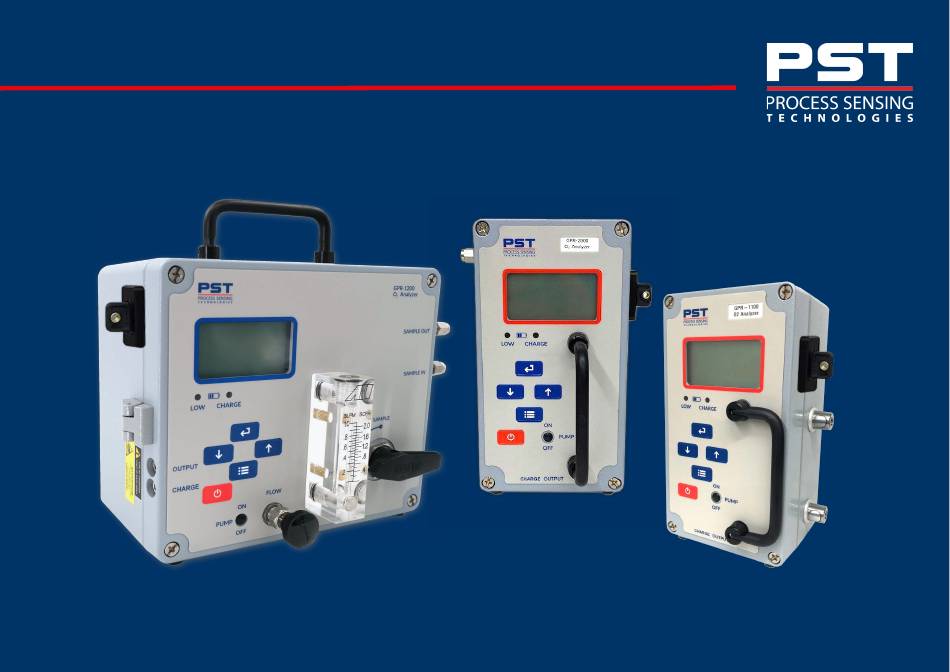

- Page 1 Portable Oxygen Analyzer Quick Start Guide First span calibration and measurement PST-QSG-3203-01 ProcessSensing.com 06/2023...
- Page 2 Portable Oxygen Analyzer Quick Start Guide First span calibration and measurement Welcome to the Quick Start Guide for first span calibration and first measurement using your ppm portable analyzer. Here, you will find information covering gas connection in section A, and first span calibration in section B. Please read the safety information below.
- Page 3 Portable Oxygen Analyzer Quick Start Guide First span calibration and measurement A. Gas connection GPR-2000 NOTE: The calibration span gas should be 50...80% of the required measurement range or one range above. E.g. For a 1 ppm Set your flow rate to 1...2 SCFH before connecting gas. measurement, span gas should be 5...8 ppm or 50...80 ppm.
- Page 4 Portable Oxygen Analyzer Quick Start Guide First span calibration and measurement C. Gas disconnection E. Figures GPR-1200 / GPR-3500 MOVR Flow indicator Turn the bypass valve to the Bypass position, then stop the flow of gas. Disconnect your span gas lines from the Sample In port. Flow valve GPR-1100 Components may vary between analyzer models.
- Page 5 Portable Oxygen Analyzer Quick Start Guide First span calibration and measurement This page is intentionally blank. ProcessSensing.com...
