AUTOSWEEP
OWNER'S MANUAL

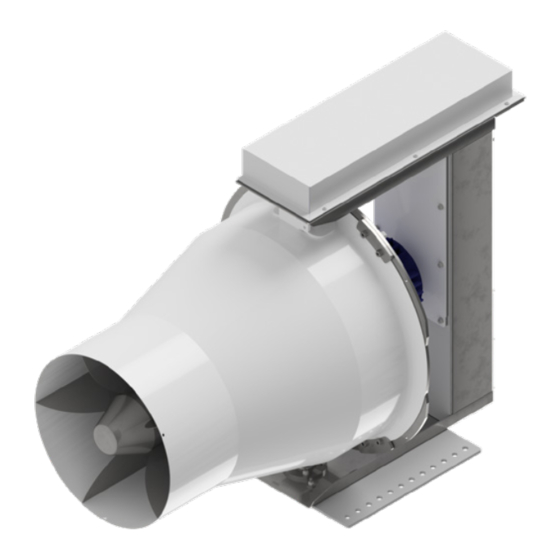

Model: AutoSweep 205 (AS205)
Congratulations on selecting the most powerful and
advanced SonicAire fan. Our company wants you to
be 100% satisfied with your purchase. At SonicAire,
we are focused on providing exceptional customer
service. If for any reason you are unsatisfied with your
equipment or have any other questions, we urge you
to give us a call. We have a dedicated staff eager to
assist you with any questions or concerns.
Technical Specifications
Voltage: 230v, 460v, 575v / 3 Phase, 60 Hz
Motor: 2 HP TEAO Fan
Weight: 200 lbs
Oscillation: 120° horizontal cleaning radius
Temp Rating: For use up to 55°C/130°F
Installation and electrical wiring must be completed by qualified persons in accordance with all applicable codes and standards.
Before servicing or cleaning the unit, disconnect the fan from the power supply and follow proper lock-out-tag-out procedures for your
location. Any cover, guard, or safety device removed for repair must be replaced as originally installed.
Ensure installation securement does not penetrate walls or ceilings where electrical components or wiring could be potentially damaged.
Fan units are not designed or intended to be mounted to movable objects.
All overhead areas must be cleaned and free of dust buildup prior to powering on fan. If fan is not in service, any dust buildup must be
cleaned prior to restarting fan.
SonicAire fans are for the prevention of dust accumulation and are not to be used for declassifying areas with dust accumulation.
1.336.712.2437
partsandservice@sonicaire.com

Table of Contents

WARNING
www.sonicaire.com
Original Instructions
Please read and save these instructions.
040821OI/AutoSweep/A
2
2
3
7
7
7
8
8
10
11
12
15
15
16
17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AutoSweep 205 and is the answer not in the manual?

Questions and answers

Related Manuals for SonicAire AutoSweep 205

Summary of Contents for SonicAire AutoSweep 205

  • Page 1: Table Of Contents

    All overhead areas must be cleaned and free of dust buildup prior to powering on fan. If fan is not in service, any dust buildup must be cleaned prior to restarting fan. SonicAire fans are for the prevention of dust accumulation and are not to be used for declassifying areas with dust accumulation. www.sonicaire.com 1.336.712.2437...

  • Page 2: Setting Up Your Fan

    (MEC) level. Disconnect power from ALL OTHER equipment during start-up to prevent a hazardous condition. Ensure the chosen structure is suitable to support a 250lb (115kg) load (SonicAire recommends consulting with a structural engineer prior to installing the fan or penetrating structural elements).

  • Page 3: Installing Your Fan

    Installing your fan I. Install the fan mounting plate The SonicAire AutoSweep comes equipped with a base mounting plate, which can be used to mount the fan to a permanent structure such as a floor, I-beam or mezzanine grate. Hardware is not included and can be purchased from SonicAire or independently...
  • Page 4 Figure 1. 2 shows a typical installation into a floor or mezzanine. Figure 1. 3 shows a typical I-beam installation. The fan shroud can be elevated or lowered depending on facility needs. SonicAire recommends strut or custom shims for such an application. Regardless of installation choice, the AutoSweep Fan should always be mounted in a four point configuration for safe operation.
  • Page 5 SonicAire AutoSweep Owner’s Manual of the Connecting Link. Figure 1.5 Figure 1.6 Locate the NOTICE tag in Figure 1.6. This tag indicates the Driven Disc hole in which you need to attach the Connecting Link. Remove the locknut from the back side of the Connecting Link.
  • Page 6 SonicAire AutoSweep Owner’s Manual CONNECTING LINK PLACEMENT. PLEASE CONTACT SONICAIRE IF YOU HAVE ANY QUESTIONS REGARDING THE PROPER PLACEMENT OF THE CONNECTING LINK. III. Connect the TBE (Terminal Block Enclosure) CAUTION: All electrical wiring (by owner) must be designed and installed in accordance with local/national electrical codes (NEC NFPA 70).

  • Page 7: Maintaining Your Fan

    Owner’s Manual Maintaining your fan Continuous operation SonicAire fans are designed so that they can operate continuously. In order for the fan to create an effective overhead barrier to prevent dust accumulation, the fan MUST be running during production. CAUTION: It is the customer’s responsibility to ensure that the fans are operated frequently enough that a “dust cloud”...

  • Page 8: Maintenance Schedule

    Fan Parts Warranty SonicAire equipment comes with a 1-year parts and factory service only warranty. The warranty begins after the product is shipped from the factory. This should allow sufficient time for transportation and installation of the fan unit.
  • Page 9 Parts and Service (partsandservice@sonicaire.com or 1-336-712-2437). You will be guided through some troubleshooting steps and offered the option to receive replacement parts or return the unit to the factory for repairs. SonicAire replacement parts carry a 1 year warranty. WHAT IS NOT COVERED Use in a manner that is inconsistent with SonicAire’s user, operator, or installation...

  • Page 10: Idrive

    SonicAire AutoSweep Owner’s Manual The cost of the repair or replacement under any of these excluded circumstances shall be borne by the customer. iDrive Drive disc 97° - - 6 ZL 9° Connecting Standard link Oscillation 107° coverage Driven Figure 2.1...

  • Page 11: Changing The Settings

    12. Note: For additional oscillation settings, see the Additional iDrive Options section or contact SonicAire Parts and Service at 1-336-712-2437 or at partsandservice@ sonicaire.com. The fan nozzle must be positioned to the right of the fan when viewing the iDrive for all hanging mounts (to the left for standing mounts).

  • Page 12: Additional Idrive Options

    SonicAire AutoSweep Owner’s Manual Additional iDrive options Each of the following fan diagrams illustrates a range of oscillation settings for a particular Drive Disc number (1-6) Driven Disc axis combination. This combination determines how wide the vertical oscillation radius will be. The final iDrive...
  • Page 13 SonicAire AutoSweep Owner’s Manual Options for “Hanging” side of driven disc...
  • Page 14 SonicAire AutoSweep Owner’s Manual Options for “Standing” side of driven disc...

  • Page 15: Wiring Diagrams

    SonicAire AutoSweep Owner’s Manual Wiring diagrams SonicAire fan wiring diagram Mini Pro100/105 Pro200/205 Primary Motor Motor (hp) Overload Gearmotor (W) Protection and LOTO MSP (230v) 0.14 0.14 0.14 Disconnect Provided by MSP (380v) 0.14 0.14 0.14 Others MSP (480v) 0.11 0.11...

  • Page 16: Multiple Fan Wiring Diagram

    Properly Sized Conductors Additional fans on same circuit Power Contacts Overload Heaters Motor Starter/ Local Protection Provided by Others Properly Sized Conductors Fan Motor Fan Motor Fan Motor Fan #1 Fan #2 Fan #3 Multiple SonicAire Fans on the same circuit...

  • Page 17: Troubleshooting

    If motor protection equipment does not need to be reset, contact SonicAire Tech Support. If the above solutions do not correct or address the problem, please contact SonicAire Parts & Service at 1.336.712.2437 or email partsandservice@sonicaire.com Please have the model and serial number available...
