OPERATOR'S MANUAL

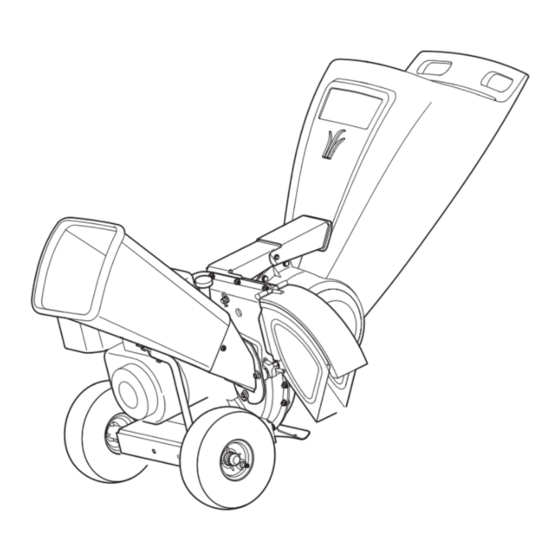

Model 464 Shown.
Chipper Shredder — Model Series 450 and 460
IMPORTANT:
READ SAFETY RULES AND INSTRUCTIONS
CAREFULLY BEFORE OPERATING EQUIPMENT.
772C0505F
MTD Products Ltd., P. O. Box 1386, KITCHENER, ONTARIO N2G 4J1
PRINTED IN U.S.A.
10/3/07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 24A-463B516 and is the answer not in the manual?

Questions and answers

Related Manuals for MTD 24A-463B516

Summary of Contents for MTD 24A-463B516

  • Page 1 Safety • Setup • Operation • Maintenance • Troubleshooting • Parts Lists • Warranty OPERATOR’S MANUAL Model 464 Shown. Chipper Shredder — Model Series 450 and 460 IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATING EQUIPMENT. 772C0505F MTD Products Ltd., P. O. Box 1386, KITCHENER, ONTARIO N2G 4J1 PRINTED IN U.S.A. 10/3/07...

  • Page 2: Table Of Contents

    This Operator’s Manual is an important part of your new equipment. It will help you assemble, prepare and maintain the unit for best performance. Please read and understand what it says. Table of Contents Customer Support..........2 Maintaining Your Chipper-Shredder ....12 Safety Labels ............

  • Page 3: Safety Labels

    Safety Labels Found On Your Chipper-Shredder Safety Labels WARNING S30039 DO NOT remove safety (or any) labels from chipper shredder for any reason. >76mm S30186...

  • Page 4: Safe Operation Practices

    WARNING: Engine Exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to State of California to cause cancer and birth defects or other reproduc- tive harm. DANGER: This machine was built to be operated according to the rules for safe operation in this manual. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury.
  • Page 5 Thoroughly inspect all material to be shredded and remove Maintenance & Storage any metal, rocks, bottles, cans, or other foreign objects Never tamper with safety devices. Check their proper which could cause personal injury or damage to the operation regularly. machine.

  • Page 6: Setting Up Your Chipper-Shredder

    Characteristics and features discussed and/or illustrated in this manual may not be ap- plicable to all models. MTD reserves the right to change product specifications, designs and equipment without notice and without incurring obligation. Figure 3-3...
  • Page 7 Characteristics and features discussed and/or illustrated in this manual may not be ap- plicable to all models. MTD reserves the right to change product specifications, designs and equipment without notice and without Figure 3-6 incurring obligation.

  • Page 8: Operating Your Chipper-Shredder

    Characteristics and features discussed and/or illustrated in this manual may not be ap- plicable to all models. MTD reserves the right to change product specifications, designs and equipment without notice and without incurring obligation.
  • Page 9 Characteristics and features discussed and/or illustrated in this manual may not be ap- plicable to all models. MTD reserves the right to change product specifications, designs and equipment without notice and without incurring obligation.
  • Page 10 Know Your Chipper Shredder Hopper Assembly Operating Release Rod Your Chipper Shredder Chipper Chute WARNING The operation of any chipper shredder can result in foreign objects being thrown into the eyes, which can damage your Figure 4-1 eyes severely. Always wear the safety WARNING: Use extreme care when han- Chipper Chute...
  • Page 11 This Operators Manual covers a range of product specifications for various models. Characteristics and features discussed and/or illustrated in this manual may not be applicable to all models. MTD reserves the right to change product specifications, designs and equipment without notice and without incurring obligation.

  • Page 12: Maintaining Your Chipper-Shredder

    Lubrication 1. Lubricate the release rod and spring with light oil once a season. See Figure 5-1. Lubricate these 2. Lubricate the pivot points on the hopper assembly with points before light oil once a season. See Figure 5-1. reassembly. 3.
  • Page 13 4. Remove the chipper chute support brace (Model Series 460) from the frame by removing the hex bolts. 5. Rotate impeller assembly by hand until you locate one of two chipper blades in the chipper chute opening. 6. Remove the blade by removing the internal hex screws, lock washers, and hex nuts which secure it to the impeller.

  • Page 14: Trouble Shooting

    Problem Cause Remedy 1. Throttle lever not in correct starting 1. Move throttle lever to FAST or START Engine fails to start position (if equipped). position. 2. Connect wire to spark plug. 2. Spark plug wire disconnected. Trouble 3. Move choke lever to CHOKE position. 3.

  • Page 15: Warranty

    Damage resulting from the installation or use of any part, accessory or attachment not approved by MTD for use with the product(s) covered by this manual will void your warranty as to any resulting damage.
  • Page 16 Models 450 and 460/ Modèles 450 et 460...
  • Page 17 Parts List Pièces détachées For parts and/or accessories refer to customer support on page 2. Adressez-vous au «Service après- vente» à la page 2 pour ce qui concerne les pièces et/ou accessoires.

  • Page 18: Illustrated Parts Lists

    Models 450 and 460/ Modèles 450 et 460 Model/Modèle 450...
  • Page 19 Parts List Pièces détachées For parts and/or accessories refer to customer support on page 2. Adressez-vous au «Service après- vente» à la page 2 pour ce qui concerne les pièces et/ou accessoires.
