Safety • Setup • Operation • Maintenance • Troubleshooting • Parts Lists • Warranty

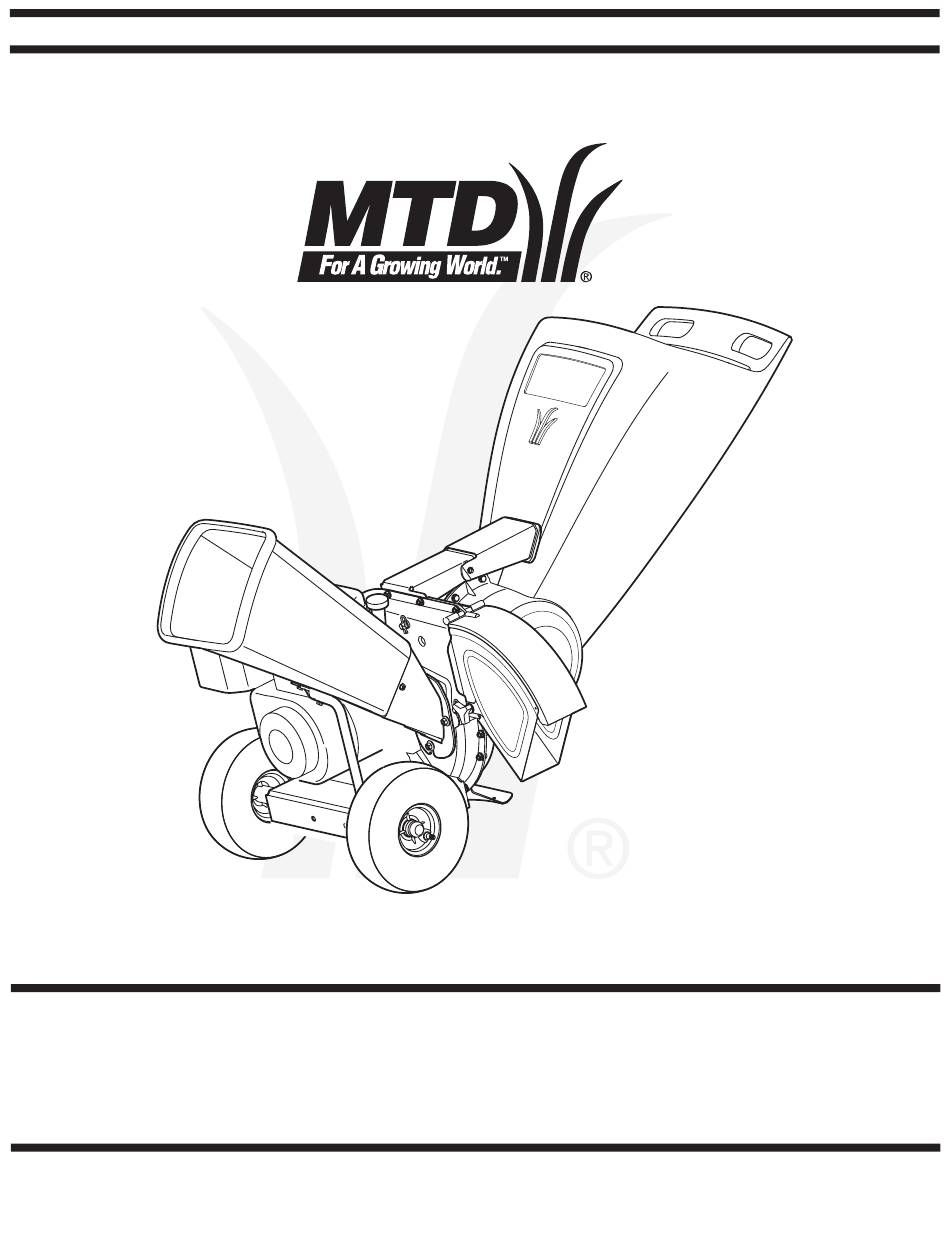

OPERATOR'S MANUAL
Model 464 Shown.
Chipper Shredder — Model Series 450 and 460
IMPORTANT:
READ SAFETY RULES AND INSTRUCTIONS
CAREFULLY BEFORE OPERATING EQUIPMENT.
772C0505J
MTD Products Ltd., P. O. Box 1386, KITCHENER, ONTARIO N2G 4J1
PRINTED IN U.S.A.
6/24/11
