Summary of Contents for Rsrteng RSO-65100 Series

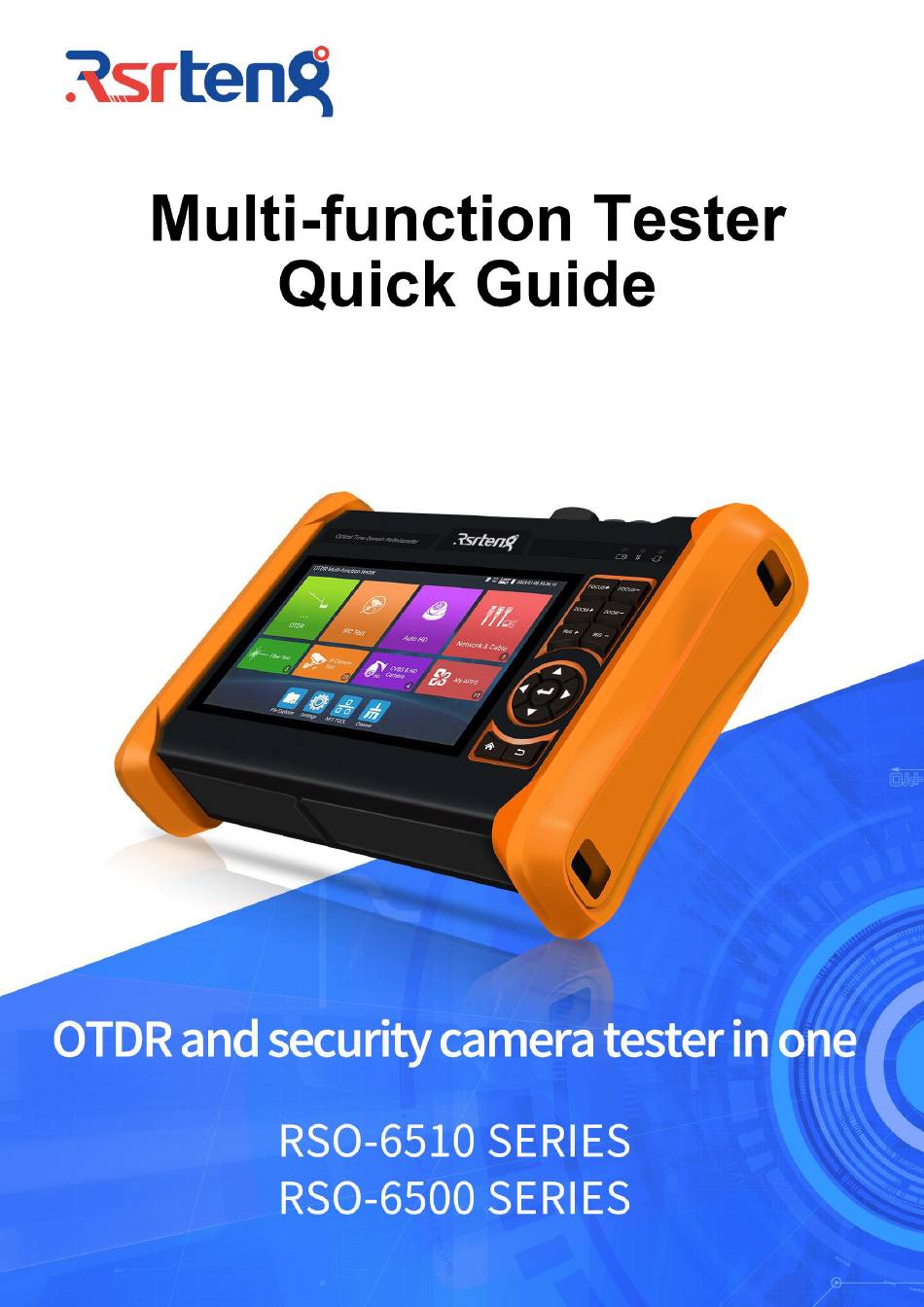

  • Page 1 Multi-function Tester Quick Guide...
  • Page 2 Multi-function Tester Quick Guide Thank you for purchasing the OTDR tester. Please read the manual before using the OTDR tester and use properly. For using the OTDR tester safely, please first read the「Safety Information」carefully in the manual. The manual should be kept well in case of reference. Keep the S/N label for after-sale service within warranty period.
  • Page 3: Table Of Contents

    Multi-function Tester Quick Guide Content 1. Installing the Battery ..................... 1 2. OTDR ..........................1 3. Loss test ........................13 4. Laser source ......................... 14 5. Optical power meter ....................15 6. Visual Fault Locator ..................... 16 7. IP camera connection ....................16 8.
  • Page 4: Installing The Battery

    Multi-function Tester Quick Guide 1. Installing the Battery Note: The tester has built-in lithium ion rechargeable battery. The battery cable inside battery cabin should be disconnected for safety during transportation! Prior to the use of the instrument, the battery cables inside the battery cabin should be well connected.
  • Page 5 Multi-function Tester Quick Guide 2.3 Operation Connecting fiber Setting parametersTestingTracer viewing 2.31 Fiber connection Connect the fiber to the top optical interface of OTDR. It adopts FC-PC optical connector. Notice: When using OTDR to measure optical fiber, working light in the measured optical fiber couldn’t exist.
  • Page 6 Multi-function Tester Quick Guide Setting can set laser wavelength, distance range, pulse width, measurement duration, measurement mode, IOR, Non reflection threshold and end threshold parameters, the reflection threshold is the specified item. 2.34 Setting 1) Quick Setup Can quickly set wavelength, distance range, pulse width and measurement duration parameter, if find the parameters are properly on testing, can quickly to change them.
  • Page 7 Multi-function Tester Quick Guide 2) Parameter setting Laser wavelength: Selected by user, it provides several options, wavelength of single mode fiber: 1310nm, 1550nm and 1610nm; users can simultaneously select 2 wavelengths at most to measure, and set analysis and file saving with different wavelength. In addition, multi wavelength measurement is valid only under the average measurement mode.
  • Page 8 Multi-function Tester Quick Guide threshold is “auto”, non-reflection threshold is “auto”, end threshold is “5.0dB”, When finished setting, please click “Save” to save the parameters. 3 ) Threshold setting In Event map, can set loss and link attenuation parameters of fusion and connect point event, if less than reference value, then judge as PASS, otherwise, will judge as Failed.
  • Page 9 Multi-function Tester Quick Guide Note: It is used for edit the content of name type. 2.35 Curve tracer When setting and saved the parameters, click “Start” to start the testing, the wavelength/ distance range/pulse width/duration of measurement/refractivity will display at the top of interface, when finished the testing, will create the trace.
  • Page 10 Multi-function Tester Quick Guide 2.36 Instruction of Events Categories Events on optical fiber indicate these abnormal points that brought loss or sudden change of reflection power beyond normal scattering of optical fiber material, including various kinds of connection and bending, loss of flaw or fracture on the optical fiber link. Event points displayed on the screen is the abnormal points in the optical fiber that led to deviation of trace, which are classified with special symbols on the trace.
  • Page 11 Multi-function Tester Quick Guide Event Inspection OTDR sends optical pulse into the optical fiber that waited for inspection, then, begins to accept the returned optical signal immediately, and calculate the distance of “event” in the optical fiber. The further the event is, the longer the time for returning back to OTDR will be. The distance can be calculated according to the time when receiving the event.
  • Page 12 Multi-function Tester Quick Guide Optical fiber link information includes file name, measurement date, measurement time, link length, link loss, link attenuation coefficient, and quantity of event. Definition and setting of file name, duration of measurement, and measurement date are shown in “set” menu. When looking over information of optical fiber link, click the “fiber link”...
  • Page 13 Multi-function Tester Quick Guide Measurement parameter includes laser wavelength, distance scope, pulse width, refractivity, back scattering coefficient, reflection threshold, bundling threshold, non-reflection threshold, and duration of measurement. The definition and setting are shown in “setting” menu. Can click “Fiber link” to view the fiber link information, Fiber link information is shown in follow picture. 2.38 Trace zoom 1)Touch screen zoom operation instructions Use the center point of the two fingers as the center to zoom.
  • Page 14 Multi-function Tester Quick Guide zoom vertically. Touch the top right thumbnail twice to restore the original state of the trace. Trace Movement Press the trace and move in any horizontal or vertical direction. 2) Instruction of Trace Operation Button Area Horizontal amplification: click the button on the touch screen to enlarge the curve horizontally.
  • Page 15 Multi-function Tester Quick Guide 2.41 File management Open: Open the selected the curve file, 4 traces can be simultaneously selected at most on main page. Rename: Rename the checked file or folder. Copy: Copy the selected file or folder to External or internal SD card. Delete: Delete the selected file or folder.
  • Page 16: Loss Test

    Multi-function Tester Quick Guide Initial Event: The starting point of link. Reflection Event: Connector, reflection event is shown as peak signal. Non-reflection Event: Fusion point or optical fiber bending, non-reflection event is shown as drop of optical power. End Event: The terminal of fiber, the end event with reflection peak is the normal end. End Event: Optical fiber bending, the end event with non-reflection peak is the fracture.
  • Page 17: Laser Source

    Multi-function Tester Quick Guide After setting the reference value, let’s talk about the optical device being connected to the OTDR and LS interface of the instrument It is used to test the insertion loss of optical passive devices. Click loss test of optical fiber test to enter interface. Calibration:Connect standard jumper to meter’s OTDR and LS port, click “Start”, after power is stable, click “Reference”...
  • Page 18: Optical Power Meter

    Multi-function Tester Quick Guide Open/Off: Turn on/off the laser source Wavelength: 1310/1550/1610 are optional, the wavelength same as OTDR module Mode: Switch the frequency of laser source, CW/270Hz/330Hz/1000Hz/20000Hz Power: Through the slider to adjust the power, the power range is 1-100 WARNING: Please don’t look the laser directly, will damage the eyes.
  • Page 19: Visual Fault Locator

    Multi-function Tester Quick Guide 6. Visual Fault Locator Click icon to enter VFL four status can select——"Steady mode", "Evasive 1Hz","Evasive 2Hz"and "Time off". Click button "Steady mode" to enter steady status, click button "Evasive 1Hz" and "Evasive 2Hz", to enter pulse mode, click button "Time off ", VFL is turned off. Timed turn off can select (5 mins, 10 mins, 30 mins, 60 mins and 120 mins).
  • Page 20: Ipc Test Pro

    Multi-function Tester Quick Guide 8. IPC Test pro Enter “IPC Test pro” app, after scanned the IP, click camera IP address, the tester will auto log in and display the camera image.( This function will auto turn on PoE power) The network setting can modify camera’s IP address.
  • Page 21: Hdmi Input (Only Rso-6510 Series)

    Multi-function Tester Quick Guide 10. HDMI input (only RSO-6510 series) * DVR or other device's HDMI out port connect to tester's HDMI in port, the meter will display input image. 11. VGA Input (only RSO-6510 series) * When tester receives VGA in image, the top tool bar shows the resolution of this image. Tap screen by twice, full image display.
  • Page 22: Digital Cable Tracer

    Multi-function Tester Quick Guide 12. Digital cable tracer Connect tested cable or BNC cable to the UTP port or the CABLE SCAN (VIDEO OUT) port on the bottom. When searching the BNC cable, connect one port of the alligator clips to the copper core or copper net of the BNC cable, the other one to connect the earth wire (barred windows).
  • Page 23: Rj45 Cable Tdr Test

    Multi-function Tester Quick Guide Connect LAN cable or telephone cable to UTP port of tester, the other end connect to UTP port of wire receiver, enter cable test app to test cable’s continuity and sequence. The continuity detection of the RJ45 cable plug Connect one end of cable to tester’s UTP port, can test the continuity of this RJ45 cable plug.
  • Page 24: Specification

    Multi-function Tester Quick Guide 15. Specification Brand Rsrteng Series RSO-6500/6510 Series Display 5.4 inch IPS touch screen,1920x1152 resolution Operating Android 10.0 system CPU/RAM/FLAS CPU 1.2GHz 4-core, RAM(DDR) 1GB, FLASH(eMMC) 8GB Security camera Technical Specifications Network Port Dual Gigabit Ethernet ports, 10/100/1000Mbps auto adapt WIFI Built in 2.4G WIFI, speed 150Mbps...
  • Page 25 Multi-function Tester Quick Guide 4x zoom, enlarge image, screen snapshot, save, view and record and Zoom Image playback RJ45 cable TDR Test cable pair status, length, attenuation, reflectivity, and test impedance, skew etc. measurement range 600meter(about1969fts). 1 channel HDMI input, support max 4K 3840x2160P 30FPS Support 4K_3840x2160P 24/25/30FPS, 2K_2560x1440P 60FPS, HDMI input 1920x1080P 24/25/30/50/59/60FPS, 1920x1080i 50/58/60FPS,...
  • Page 26 Multi-function Tester Quick Guide OTDR Technical Specifications Wavelength 1310/1550nm 1610nm (nm) Dynamic range 28/26dB 30/28dB 32/30dB 34/34dB 28dB 30dB 32dB 34dB (dB) Support (When an optical signal is Support detect detected in the fiber, a prompt will pop optical signal up and the test will be disabled to protect the device) Support detect...
  • Page 27: Packing List

    The data above is only for reference and any change of them will not be informed in advance. You can get more information and support by: Website: www.rsrteng.com Sales department: sales@rsrteng.com After-sales service department: service@rsrteng.com WhatsApp: +86 18100275797 Tel: +86-755-32974680...
