Recycle Disassemble Instruction
(Dismantled Information)
Requirements according to ANNEX VII of DIRECTIVE 2012/19/EU
on waste electrical and electronic equipment (WEEE)
Materials and components with hazardous content
LCDs may contain hazardous substances like Pb and BFRs which are covered by
exemptions under the RoHS directive. However, the majority is present in the printed
circuit boards assembly. In order to reduce emissions as much as possible, a complete
disposal of the old appliance is required. This treatment may only be performed in
authorized handling plants.

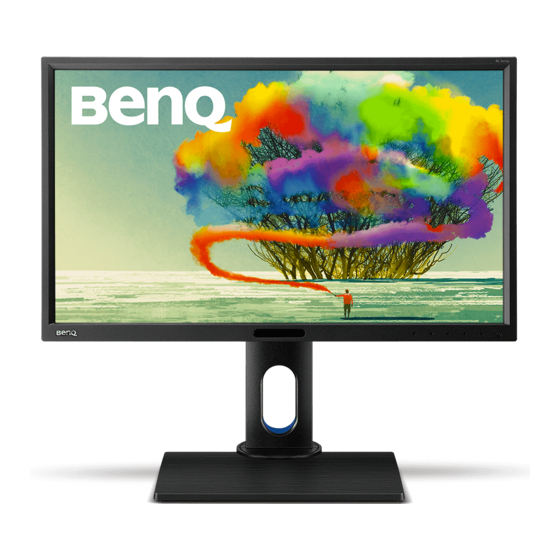

Product Name: LCD Monitor
Model No.: BL2420PT

Advertisement

loading
Need help?

Need help?

Do you have a question about the BL2420PT and is the answer not in the manual?

Questions and answers

Related Manuals for BenQ BL2420PT

Summary of Contents for BenQ BL2420PT

  • Page 1 RoHS directive. However, the majority is present in the printed circuit boards assembly. In order to reduce emissions as much as possible, a complete disposal of the old appliance is required. This treatment may only be performed in authorized handling plants. Product Name: LCD Monitor Model No.: BL2420PT...

  • Page 2: Disassembly Tools

    Disassembly Tools Tool picture Philips Screwdriver for M3 Screw Nosed Pliers Diagonal Cutting Pliers Slotted screwdriver Six Point Sockets Philips Screwdriver for M2.5 Screw Knife...

  • Page 3: Disassembly Process

    Disassembly process 1) Remove the base Place the monitor face down on a smooth surface. Be careful to avoid scratch and injury during the process of uninstall. Remove the screw and then rotate the base as below picture to remove the base. Open 2) Remove the stand.
  • Page 4 Remove the rear cover Unscrew the screws from the rear cover. Pull apart bezel & rear cover. Note: Be careful, the BEZEL CLIP is easy to break. Note: The positions of the clips on the rear cover are as follow. There are some small gaps between CLIPS. It’s suggested to separate bezel and rear cover from the gaps.
  • Page 5 Example: You can separate the bezel and rear cover from Remove the main frame from the panel. Remove the aluminum foil; pull out the wire marked in red circles to remove the mainframe. Note: When you assembled the LCD, you must tidy the wire as follow picture.
  • Page 6 Turn over the mainframe to remove the tapes and LVDS cable. Remove the AC cover from the mainframe. Remove the Mylar from power board. Remove the Mylar from power board.
  • Page 7 Remove the boards from the main frame And then remove screws in red, pull out the wire to remove the main board and power board. The power board The main board Turn over the power board and main board; remove the speaker cable, and other cables.
  • Page 8 Remove the speaker Pull at the foot of the speaker strongly as follow picture. Remove the panel Note ： Be course the panel is easy to broken, when we remove the panel, we should hold the iron on the panel edge use two hands at the same time, and should avoid touching the panel surface.
  • Page 9 10) The bezel unit. Disassembly Time Total time: 30 minutes...
