GLS-PLS-120/277
Connectors and Indicators
#
CONNECTORS
AND INDICATORS
1
GROUND STUD
2
INPUT Connectors
3
STATUS LEDS
4
TEST SWITCHES
5
OUTPUT
Connectors
6 • Power Loss Sensor: GLS-PLS-120/277
DESCRIPTION
(1) #6-32 Ground stud
PHASE A: (2) Captive screw
terminals; Main feed Phase A
sensing input, 277 or 120 volts;
Wire Size: 30 to 10 AWG
2
(0.05 to 6.0 mm
)
PHASE B: (2) Captive screw
terminals; Main feed Phase B
sensing input, 277 or 120 volts;
Wire Size: 30 to 10 AWG
2
(0.05 to 6.0 mm
)
PHASE C: (2) Captive screw
terminals; Main feed Phase C
sensing input, 277 or 120 volts;
Wire Size: 30 to 10 AWG
2
(0.05 to 6.0 mm
)
N: (1) Captive screw terminal,
main feed neutral;
Wire Size: 30 to 10 AWG
2
(0.05 to 6.0 mm
)
NORMAL A–C: (3) Green
LEDs, each illuminates when
corresponding test switch is set
to NORMAL and power is
present at corresponding phase
sensing input
TEST A–C: (3) Red LEDs, each
illuminates when corresponding
test switch is set to TEST and
power is present at
corresponding phase sensing
input
(3) Slide switches behind door,
used to set each corresponding
phase sensing input to Test
mode
(2) Sets of (2) captive screw
terminals comprising (2) Form
A contact closures, electrically
isolated;
Both outputs close when main
feed power is removed from
any phase sensing input;
Contact Closure Rating: 1 amp
@ 24 volts dc
Wire Size: 30 to 12 AWG
2
(0.05 to 4.0 mm
)
Power Loss Sensor
Setup
Important Notes
Read before installation.
•
Codes: Install in accordance with all local and
national electrical codes.
•
Wiring: Use 75° C copper wire only.
Installation

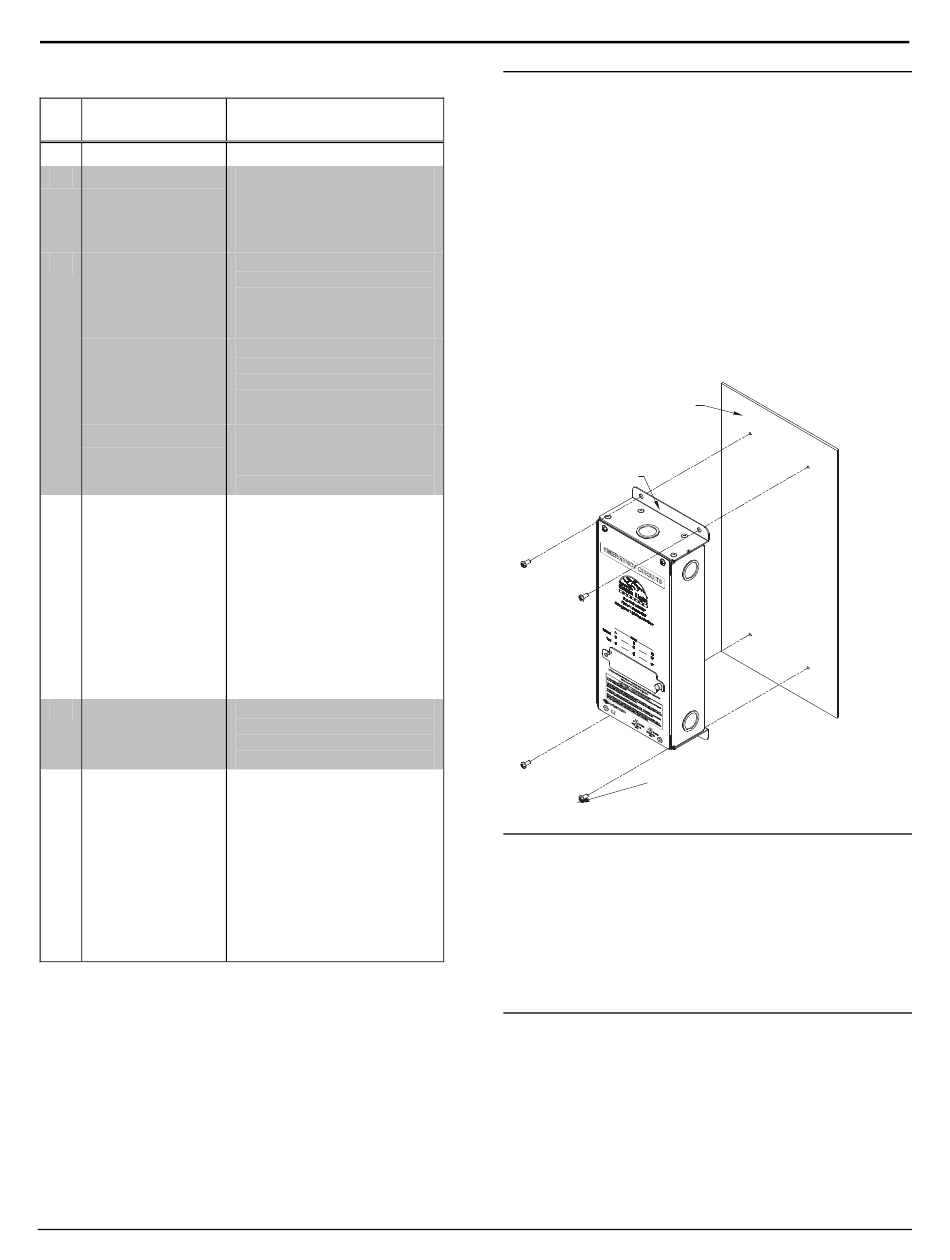

Refer to the following diagram when installing a
GLS-PLS-120/277 module.
Module Installation
Mounting
Surface
GLS-PLS-120/277
Module
Mounting Screw, #8 or #10
Qty. 4 Total
(Not Supplied)
NOTE: To prevent potential heat damage to drywall, do
not mount the device directly onto drywall. Mount a piece
of 1/2 in (13 mm) thick plywood between the device and
the drywall.
NOTE: To ensure proper ventilation, the device must be
installed vertically on a vertical surface. Install device
with 6 in (153 mm) of clearance from the top and bottom
of the device.
Installation Guide – DOC. 6674B
