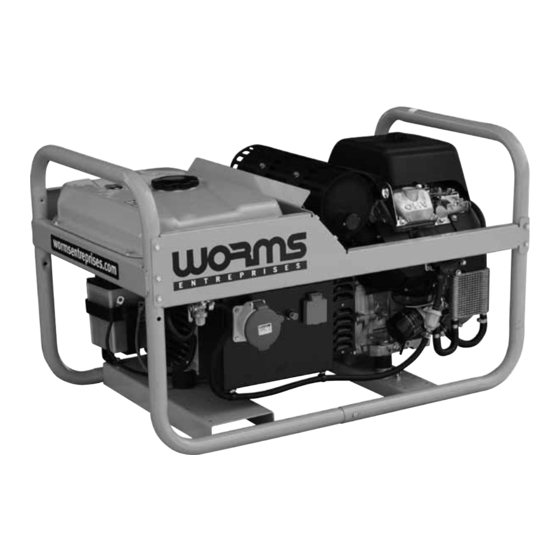

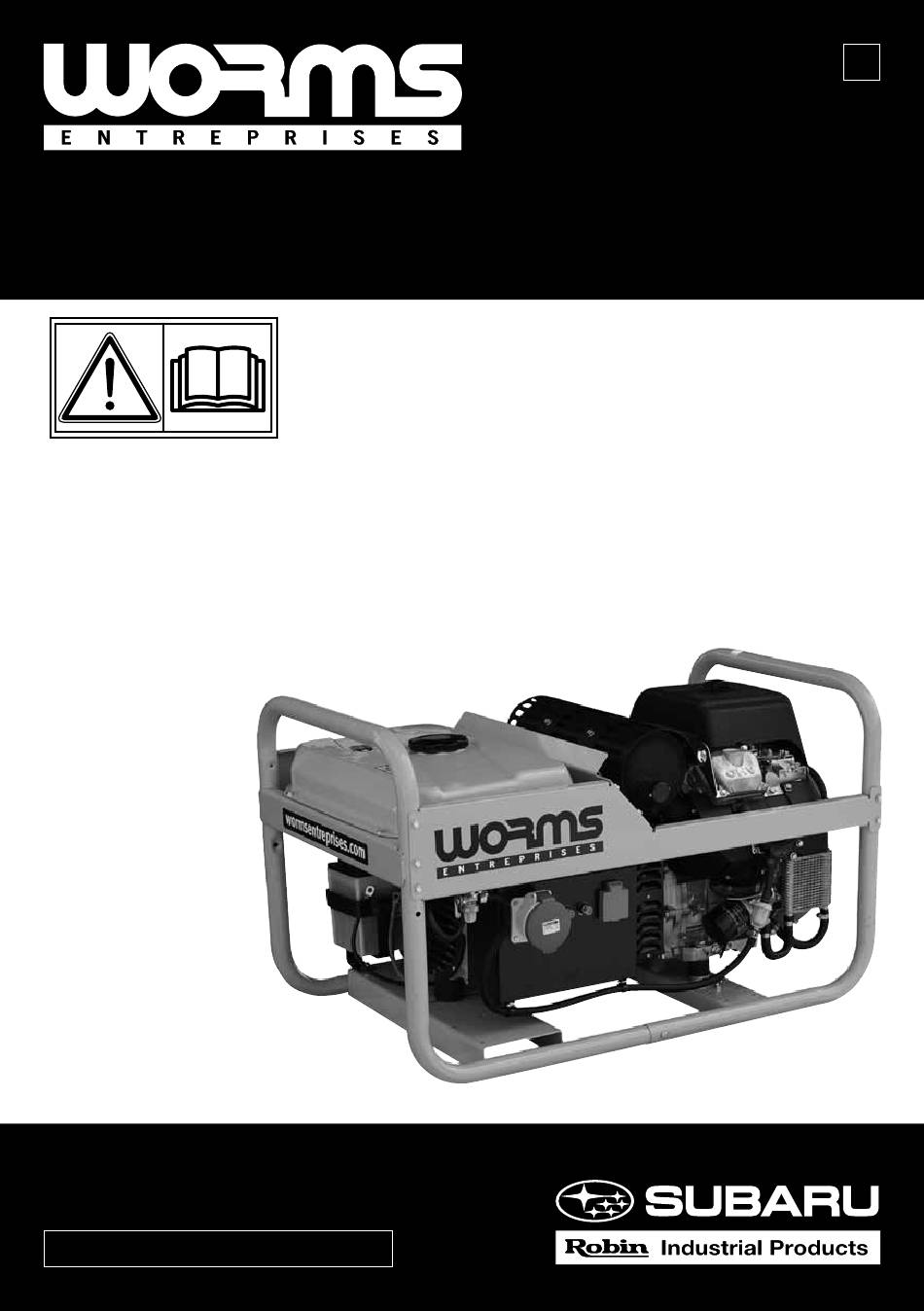

- Page 1 InstructIons for use GenerAtor MoDeLs LeADer 10500 XL21 LeADer 12500 XL21 AVr trIstAr 10500 XL21 AVr trIstAr 12500 XL21 AVr Mu_02Ge_LeAD_10k_12k_trI_10k_12k_GB...
- Page 2 Thank you for purchasing a Robin generator. This manual covers operation and maintenance of the Robin generators. All information in this publica- tion is based on the latest production information available at the time of approval for printing. Pay special attention to statements preceded by the following words: Indicates an impending dangerous situation.
-
Page 3: Table Of Contents
suMMArY 1. sYMBoLs AnD MeAnInGs ............................PAGe 2. sAfetY precAutIons ............................. PAGe 3. specIfIcAtIons ................................PAGe 4. pre-operAtIon check ............................PAGe 5. operAtInG proceDures ..........................PAGe 6. stoppInG the GenerAtor ..........................PAGe 7. oIL sensor ..................................PAGe 8. wAttAGe InforMAtIon ............................ -
Page 4: Symbols And Meanings
1. sYMBoLs AnD MeAnInGs In accordance with the ISO standard, the specified symbols as shown in the following table are used for the products and this instruction manual. Read the operator’s instruction manual. Stay clear of the hot surface. exhaust gas is poisonous. Do not operate in an unventilated room. - Page 5 ON (Switch engine) Rated power (kW) ƒ r OFF (Switch engine) Rated frequency (Hz) Maximum site altitude above H max Alternating current sea-level (m) Direct current Continuous power (kW) Plus : positive polarity Rated voltage (V) Maximum ambient tempera- T max Minus : negative polarity ture (°C) STOP-position of a bistable push control...
-
Page 6: Safety Precautions
2. sAfetY precAutIons Do not operate the generator near gasoline or gaseous fuel because of the potential danger of explosion or fire. Do not fill the fuel tank with fuel while the engine is running. Do not smoke or use a naked flame near the fuel tank. Be careful not to spill fuel during refueling. - Page 7 Be extremely careful that all necessary electrical grounding procedures are followed during each and every use. Failure to do so can be fatal. Do not contact the generator to a commercial power line. Connection to a commercial power line may short circuit the generator and ruin it or cause electric shock hazard. Use the transfer switch for connecting to domestic circuit.
-
Page 8: Specifications
3. specIfIcAtIons LeADer LeADer trIstAr trIstAr 10500 XL21 12500 XL21 10500 XL21 12500 XL21 De AVr De AVr De AVr LTP Power 230V (cosϕ=1) 9200 W 10600 W 3600W 3600 W COP Power 230V (cosϕ=1) 7200 W 7700 W 3600 W 3600 W 10 kW 12 kW... -
Page 9: Pre-Operation Check
4. pre-operAtIon check 4.1. check enGIne oIL STD-type Option Before checking or refilling oil, be sure generator is located on stable and level surface with engine Gauge stopped. • Remove oil filler cap (a) and check the engine oil level. •... - Page 10 4.2. check enGIne fueL Do not remove the fuel tank cap while the engine is running. Do not refuel while smoking or near naked flame or other such potential fire hazards. Otherwise fire accident may occur. Check fuel level at fuel level gauge (standard Fuel Filter with large fuel tanks).
-
Page 11: Operating Procedures
• Make sure you review each warning in order to prevent fire hazard. • Keep area clear of in flammables or other hazardous materials. • Keep generator at least 3 feet (1 meter) away from buildings or other structures. • Only operate generator in a dry, well ventilated area. - Page 12 5.1. stArtInG the enGIne • Open the fuel cock. • Pull the choke knob to close if the engine is cold. CLOSED • Put the key switch in start position (START). STOP RUN START • After the engine started, return the choke knob gradually to “OPeN”...
-
Page 13: Stopping The Generator
Be sure to ground the generator if the connected electrical device is grounded. Failure to ground unit could lead to electrical shock. • Check the amperage of the receptacles, and be sure not to take a current exceeding the specified amperage. -
Page 14: Oil Sensor
7. oIL sensor • The oil pressure sensor detects the oil pressure in the engine and a lamp is switching on if the oil pressure in under the minimum expectedvalue. But, the engine won’t stop automatically if the pressure is over the expected one. •... -
Page 15: Wattage Information
8. wAttAGe InforMAtIon Some appliances need a ‘‘surge’’ of energy when starting. This means that the amount of electrical power needed to start the appliance may exceed the amount needed to maintain its use. electrical appliances and tools normally come with a label indicating voltage, cycles/Hz, amperage (amps) and electrical power needed to run the appliance or tool. - Page 16 The chart below has been prepared to illustrate the approximate voltage loss when an extension cord of 300 feet (approx. 100 meters) is used to connect an appliance or tool to the generator. No./mm /100m 10 A 12 A 15 A 0,75 30/0.18 2,477 2,5V 1,27...
-
Page 17: Maintenance Schedule
9. MAIntenAnce scheDuLe • Daily Check all components according to ‘’PRe-OPeRATING CHeCKS’’. • (8 h) Check and refill gasoline and engine oil. • Wash air cleaner foam element more often if used in dirty or dusty every environments. • 50 h Check the condition of the paper element. -
Page 18: How To'' Maintenance
10. ‘‘how-to’’ MAIntenAnce 10.1. enGIne oIL chAnGe • Change engine oil every 100 hours. (For new engine, change oil after 20 hours.) Drain oil by removing the drain plug and the oil OIL DRAIN filler cap while the engine is warm. PLUG Reinstall the drain plug and fill the engine with oil until it reaches the upper level on the oil filler cap. - Page 19 • pAper eLeMent: Clean by tapping gently to remove dirt and blow off dust. Never use oil. Clean or replace the paper element every 50 hours of operation, and replace element set every 200 hours. urethAne foAM DuAL eLeMent tYpe Knob Air Filter Cover Urethane...
- Page 20 10.4. cLeAnInG AnD ADJustInG spArk pLuG plug contaminated with carbon, remove it using a plug cleaner or wire brush. Adjust the electrode gap between 0.7 and 0.8 mm. (0.7 to 0.8 mm) oil capacity SPARK PLUG LeADer 10500 XL21 De LeADer 12500 XL21 De AVr NGK BPR-6eS trIstAr 10500 XL21 De AVr...
-
Page 21: Preparation For Storage
11. prepArAtIon for storAGe The following procedures should be followed prior to storage of your generator for periods of 6 months or longer. • Drain fuel from fuel tank carefully by disconnecting the fuel line. Gasoline left in the fuel tank will eventually deteriorate making engine-starting difficult. -
Page 22: Troubleshooting
12. trouBLeshootInG When generator engine fails to start after several attempts, or if no electricity is available at the output socket, check the following chart. 12.1. when enGIne fAILs to stArt: Check if choke lever is in its proper position. Set the choke lever to ‘‘CLOSe’’... - Page 24 Mu_02Ge_LeAD_10k_12k_trI_10k_12k_GB 20110808 head office Parc Gustave eiffel - 1 Bd. de Strasbourg - Bussy Saint Georges - 77607 Marne la Vallée - Cedex 3 - FRANCe standard commercial and spare parts service After sales service TeL. +33 (0) 1 64 76 29 50 TeL.
