Summary of Contents for Sirius Satellite Radio SIR-SNY1

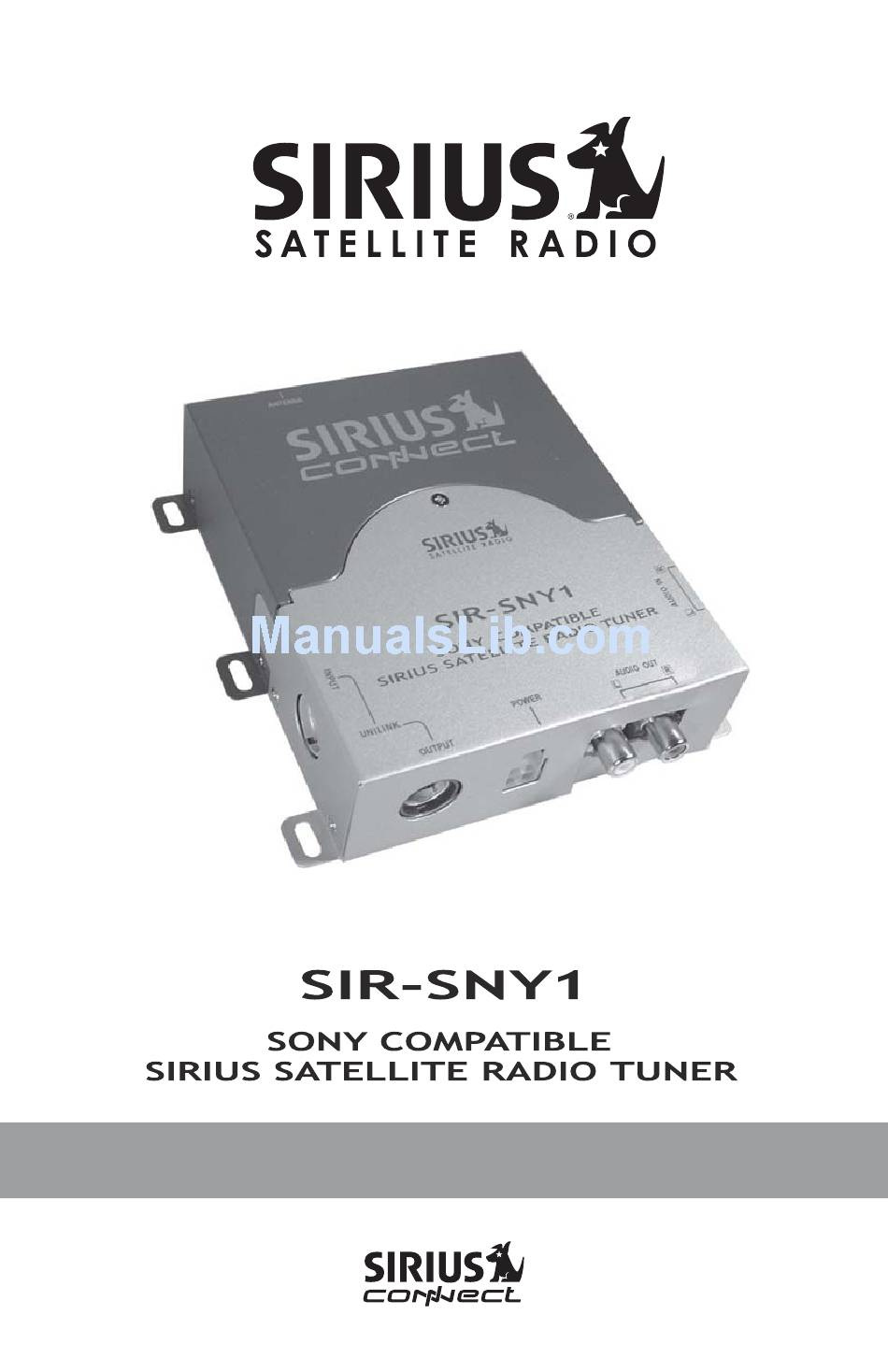

  • Page 1 Installation Guide...
  • Page 2 Congratulations on your purchase of the SIR-SNY1– the Sony Compatible SIRIUS Satellite Radio Tuner! Your new SIRIUS Tuner is designed to work designated to be “SATELLITE RADIO READY”. Contact Sony or SIRIUS for model compatibility. What is SIRIUS Satellite Radio?

  • Page 3: Table Of Contents

    Mounting the Tuner ... 6 Installing the Antenna ... 6 Optimum Antenna Mounting Locations ... 7 Wiring and Cable Connections ... 8 System Connection Examples ... 10 Activating Your SIRIUS Subscription ... 12 Specifications ... 13 Package Contents SIR-SNY1 Tuner Magnetic Micro Antenna...

  • Page 4: Warnings And Cautions

    • Relocate the receiving antenna. • Consult the dealer or an experienced technician for help. SIR-SNY1 Installation Guide harmful...
  • Page 5 SIR-SNY1 Operation and Installation Guide SIR-SNY1 Installation Guide...

  • Page 6: Installation

    • Any location that would interfere with moving parts on the vehicle or hamper driving. Mounting the SIR-SNY1 Tuner Be sure that you find a location that is flat and has clearance above the unit to prevent any damage as well as allow for ventilation.

  • Page 7: Optimum Antenna Mounting Locations

    • Route the cable from the lowest point of the rear window into the trunk. Take advantage of any existing cable channels or wiring conduits. SIR-SNY1 Operation and Installation Guide SIR-SNY1 Installation Guide • For SUVs, minivans and five-door vehicles, bring the cable into the...

  • Page 8: Wiring And Cable Connections

    Use the supplied RCA cables to connect to the bus-in audio inputs of the Sony headunit. F. Audio In Connect to audio output of optional Sony audio equipment like CD Changers. Open Battery (+) Chassis Ground (–) Open SIR-SNY1 Installation Guide...
  • Page 9 Connector Yellow - Connect to Battery Positive Black - Connect to Chassis Ground SIR-SNY1 Installation Guide SIR-SNY1 Operation and Installation Guide Antenna (21’ cable) - Mount on Roof of Vehicle 2.5-meter RCA Cable (Connect to Sony Satellite Radio READY Headunit) 2.5-meter UniLink Cable...

  • Page 10: System Connection Examples

    System Connection Examples System 1: Sony Headunit and SIR-SNY1 SIR-SNY1 Installation Guide...
  • Page 11 System 2: Sony Headunit, DVD/CD Changer and SIR-SNY1 Note: The UniLink pass-through connector can accommodate most optional audio equipment, including CD changers. However, it can not be used to add a second satellite radio tuner. SIR-SNY1 Operation and Installation Guide...

  • Page 12: Activating Your Sirius Subscription

    Preview Channel (Channel 184). You should be able to hear the SIRIUS Preview channel’s Audio. 6. Find the SIRIUS ID (SID) of your unit. The SID can be found on a sticker on the bottom of the SIR-SNY1 or by tuning to channel 255.

  • Page 13: Basic Operation

    Basic Operation Listening to a program The Sirius receiver is controlled by the master unit. Button locations vary with different master unit models. Please refer to the master unit instruction manuals. 1. To select Sirius a. Press the Source button until “Sirius”...
  • Page 14 SEEK + or SEEK - button to start. Using category search to locate channels Each Sirius channel is associated with a category that describes the type of music or programming that is played. Some example categories include rock, country, news, etc.

  • Page 15: Specifications

    Connector Type ... SMB (Right-angle) Audio Output ... 1.4V rms (Fixed) Included Cable ... 2.5 Meter Bus (Male/Male) Please write down your SIRIUS ID in the space provided below: SIRIUS ID: SIRIUS Customer Service: 1-888-539-7474 SIR-SNY1 Operation and Installation Guide...
  • Page 16 SIRIUS Satellite Radio 1221 Avenue of the Americas New York, NY 10020 (888) 539-7474 www.sirius.com © 2005 SIRIUS Satellite Radio Inc. SIR-SNY1-Install-Manual-(v061805) “SIRIUS” and the SIRIUS dog logo are trademarks of Sirius Satellite Radio Inc.
