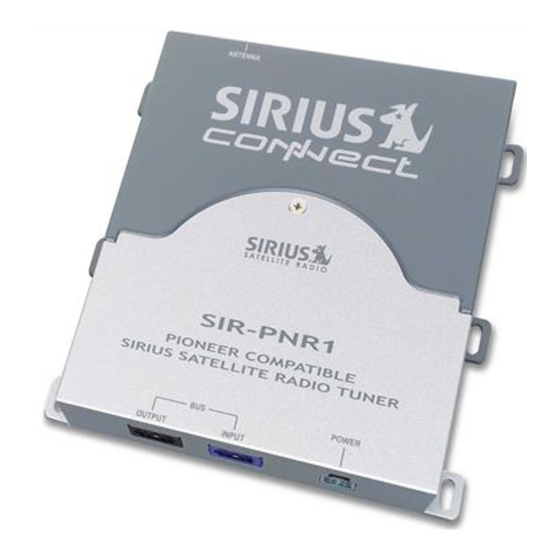

Pioneer compatible sirius satellite radio tuner

Advertisement

Quick Links

SIR-PNR1
SIR-PNR1
PIONEER COMPATIBLE
SIRIUS SATELLITE RADIO TUNER
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIR-PNR1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sirius Satellite Radio SIR-PNR1

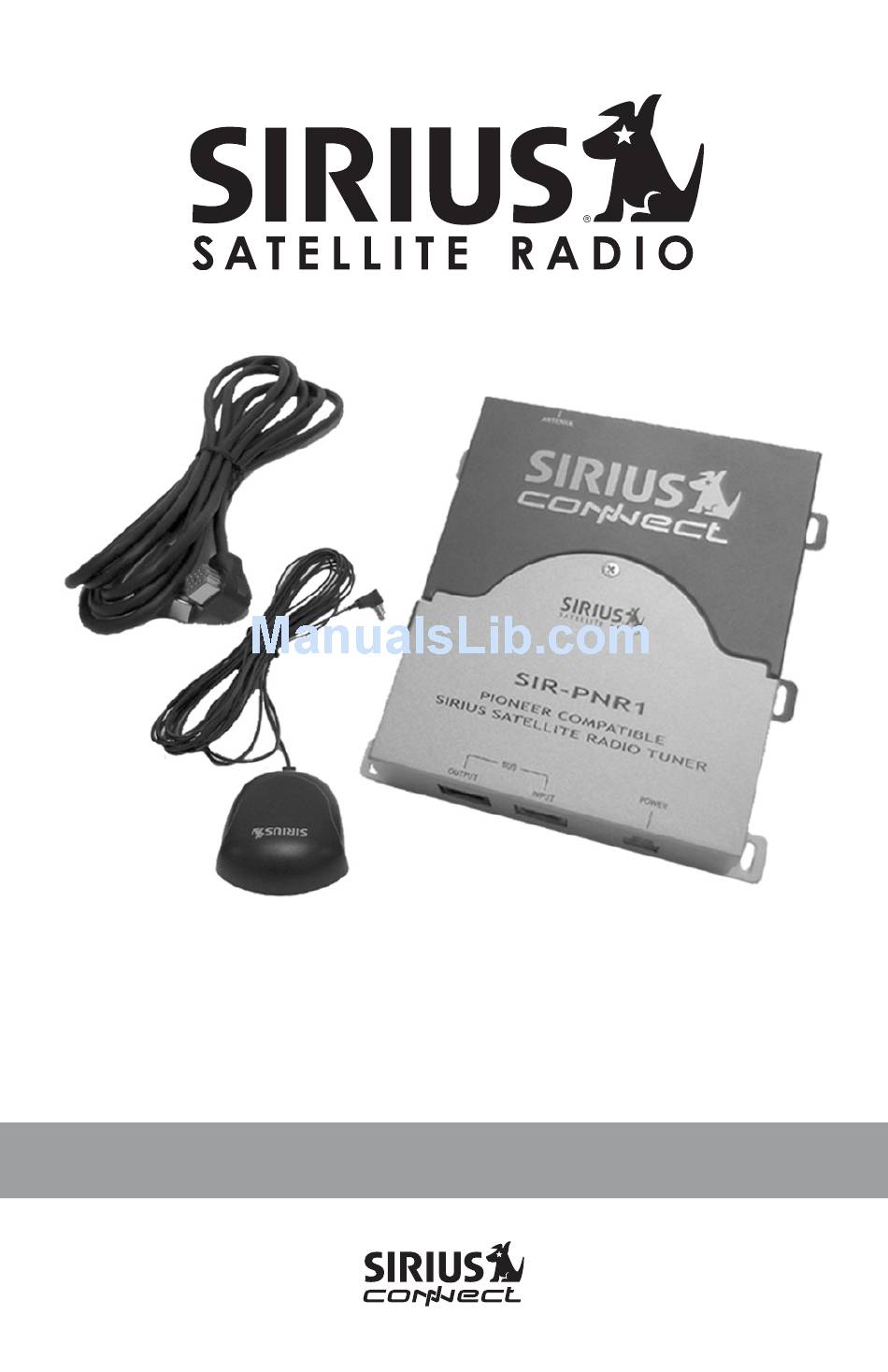

  • Page 1 SIR-PNR1 SIR-PNR1 PIONEER COMPATIBLE SIRIUS SATELLITE RADIO TUNER Installation Guide...
  • Page 2 Congratulations on your purchase of the SIR-PNR1– the Pioneer Compatible SIRIUS Satellite Radio Tuner! Your new SIRIUS Tuner is designed to work designated to be “SAT RADIO READY” for any Satellite Radio provider. Contact Pioneer or SIRIUS for model compatibility.
  • Page 3: Table Of Contents

    PIONEER COMPATIBLE SIRIUS SATELLITE RADIO TUNER IP BUS SIR-PNR1 Tuner Magnetic Micro Antenna Antenna Cable Cover/Tail Alcohol Swab Power Harness With In-Line Fuse 2.5-Meter IP-Bus Cable 6 Mounting Screws SIR-PNR1 Installation Guide SIR-PNR1 Operation and Installation Guide FILTER & FUSE BOX...
  • Page 4: Warnings And Cautions

    • Relocate the receiving antenna. • Consult the dealer or an experienced technician for help. SIR-PNR1 Installation Guide harmful...
  • Page 5 SIR-PNR1 Operation and Installation Guide SIR-PNR1 Installation Guide...
  • Page 6: Installation

    • Any location that would interfere with moving parts on the vehicle or hamper driving. Mounting the SIR-PNR1 Tuner Be sure that you find a location that is flat and has clearance above the unit to prevent any damage as well as allow for ventilation.
  • Page 7: Optimum Antenna Mounting Locations

    • Route the cable from the lowest point of the rear window into the trunk. Take advantage of any existing cable channels or wiring conduits. SIR-PNR1 Operation and Installation Guide SIR-PNR1 Installation Guide • For SUVs, minivans and five-door vehicles, bring the cable into the...
  • Page 8: Wiring And Cable Connections

    Wiring and Cable Connections SIR-PNR1 SIR-PNR1 PIONEER COMPATIBLE SIRIUS SATELLITE RADIO TUNER IP BUS Antenna Input (SMB) IP-Bus Output Connector (BLACK) IP-Bus Input Connector (BLUE) Power Connector FILTER & FUSE BOX Power harness with serviceable fuse box Antenna Input Connect the right-angle SMB connector from the antenna.
  • Page 9 Connector To access the fuse, remove the top cover of the in-line filter/fuse box SIR-PNR1 Installation Guide SIR-PNR1 Operation and Installation Guide Antenna (21’ cable) - Mount on Roof of Vehicle Black – Connect to Chassis Ground FILTER & FUSE BOX 2.5-meter IP-Bus Cable...
  • Page 10: System Connection Examples

    System 1: Pioneer Headunit and SIR-PNR1 Optional Pioneer SAT RADIO READY Headunit (IP-Bus CD Player or Mobile Multimedia Station) System 2: Pioneer Headunit, DVD/CD Changer and SIR-PNR1 Optional Pioneer SAT RADIO READY Headunit (IP-Bus CD Player or Mobile Multimedia Station)
  • Page 11 System 3: Pioneer Headunit, DVD Player and SIR-PNR1 Optional Pioneer SAT RADIO READY Headunit (IP-Bus CD Player or Mobile Multimedia Station) Optional Pioneer DVD Player Optional Pioneer CD Changer SIR-PNR1 Operation and Installation Guide SIR-PNR1 Installation Guide SIR-PNR1 SIR-PNR1 PIONEER COMPATIBLE...
  • Page 12: Activating Your Sirius Subscription

    Activating Your SIRIUS Subscription You must activate SIR-PNR1 before you can start to receive the SIRIUS Satellite Radio broadcast. 1. Make sure that the SIR-PNR1 is properly connected and that its antenna is oriented to receive the SIRIUS satellite signal.
  • Page 13: Specifications

    Audio Interface ... 2 IP-Bus Connectors (Input/Output) Audio Output ... 1V (Fixed) Included Cable ...2.5 Meter IP-Bus (Male/Male) Please write down your SIRIUS ID in the space provided below: SIRIUS ID: SIRIUS Customer Service: 1-888-539-7474 SIR-PNR1 Operation and Installation Guide SIR-PNR1 Installation Guide...
  • Page 14 SIRIUS Satellite Radio 1221 Avenue of the Americas New York, NY 10020 (888) 539-7474 www.sirius.com © Pioneer-SIR-PNR1-Install-Manual-(v012405) 2004 SIRIUS Satellite Radio Inc.
