- Page 1 SIR-JVC1 JVC COMPATIBLE SIRIUS SATELLITE RADIO TUNER Installation Guide...
- Page 2 Congratulations on your purchase of the SIR-JVC1– the JVC Compatible SIRIUS Satellite Radio Tuner! Your new SIRIUS Tuner is designed to work designated to be “SIRIUS READY”. Contact JVC or SIRIUS for model compatibility. What is SIRIUS Satellite Radio? Over 120 channels of the best...
-
Page 3: Table Of Contents

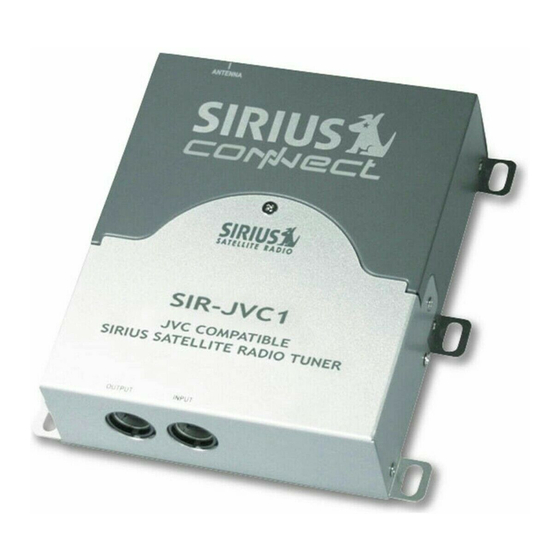

Activating Your SIRIUS Subscription ... 12 Specifications ... 13 Package Contents SIR-JVC1 JVC COMPATIBLE SIRIUS SATELLITE RADIO TUNER HEADUNIT CD CHANGER SIR-JVC1 Tuner Magnetic Micro Antenna Antenna Cable Cover/Tail Alcohol Swab 2.5-Meter Bus Cable 6 Mounting Screws SIR-JVC1 Installation Guide SIR-JVC1 Operation and Installation Guide... -
Page 4: Warnings And Cautions
• Relocate the receiving antenna. • Consult the dealer or an experienced technician for help. SIR-JVC1 Installation Guide harmful... - Page 5 SIR-JVC1 Operation and Installation Guide SIR-JVC1 Installation Guide...
-
Page 6: Installation
• Any location that would interfere with moving parts on the vehicle or hamper driving. Mounting the SIR-JVC1 Tuner Be sure that you find a location that is flat and has clearance above the unit to prevent any damage as well as allow for ventilation. -
Page 7: Optimum Antenna Mounting Locations
• Route the cable from the lowest point of the rear window into the trunk. Take advantage of any existing cable channels or wiring conduits. SIR-JVC1 Operation and Installation Guide SIR-JVC1 Installation Guide • For SUVs, minivans and five-door vehicles, bring the cable into the... -
Page 8: Wiring And Cable Connections
Wiring and Cable Connections SIR-JVC1 JVC COMPATIBLE SIRIUS SATELLITE RADIO TUNER HEADUNIT CD CHANGER Antenna Input (SMB) J-Bus Output Connector (Headunit) J-Bus Input Connector (CD Changer) Power Connector Antenna Input Connect the right-angle SMB connector from the antenna. Push firmly to attach. - Page 9 Right-angle SMB Connector SIR-JVC1 JVC COMPATIBLE SIRIUS SATELLITE RADIO TUNER HEADUNIT CD CHANGER Right-angle J-Bus Connector SIR-JVC1 Installation Guide SIR-JVC1 Operation and Installation Guide Antenna (21’ cable) - Mount on Roof of Vehicle 2.5-meter J-Bus Cable (Connect to JVC SIRIUSREADY Headunit)
-
Page 10: System Connection Examples
System Connection Examples System 1: JVC Headunit and SIR-JVC1 SIR-JVC1 JVC COMPATIBLE SIRIUS SATELLITE RADIO TUNER HEADUNIT CD CHANGER SIR-JVC1 Installation Guide... - Page 11 System 2: JVC Headunit, DVD/CD Changer and SIR-JVC1 SIR-JVC1 JVC COMPATIBLE SIRIUS SATELLITE RADIO TUNER HEADUNIT CD CHANGER SIR-JVC1 Operation and Installation Guide SIR-JVC1 Installation Guide...
-
Page 12: Activating Your Sirius Subscription
Activating Your SIRIUS Subscription You must activate SIR-JVC1 before you can start to receive the SIRIUS Satellite Radio broadcast. 1. Make sure that the SIR-JVC1 is properly connected and that its antenna is oriented to receive the SIRIUS satellite signal. -
Page 13: Specifications
Audio Interface ... 2 IP-Bus Connectors (Input/Output) Audio Output ... 1.4V rms (Fixed) Included Cable ... 2.5 Meter Bus (Male/Male) Please write down your SIRIUS ID in the space provided below: SIRIUS ID: SIRIUS Customer Service: 1-888-539-7474 SIR-JVC1 Operation and Installation Guide SIR-JVC1 Installation Guide... - Page 14 SIRIUS Satellite Radio 1221 Avenue of the Americas New York, NY 10020 (888) 539-7474 www.sirius.com © JVC-SIR-JVC1-Install-Manual-(v111004) 2004 SIRIUS Satellite Radio Inc.
