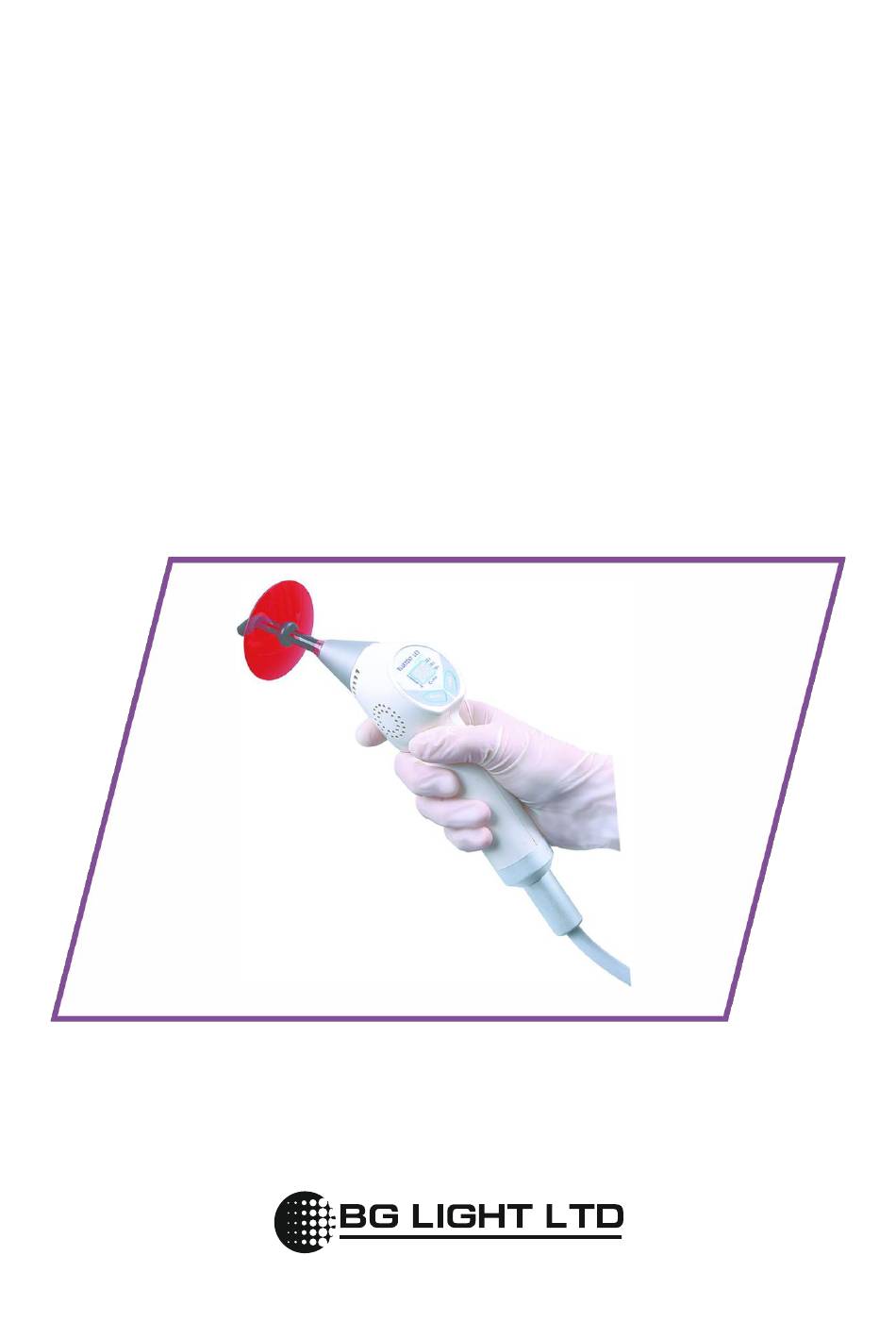

- Page 1 OPERATING INSTRUCTIONS MANUAL BLUEDENT SMART built-in 24V / 12V / 220V Dental LED curing light .#200-005b, #200-005m...
- Page 2 BLUEDENT SMART built-in LED curing light...
-
Page 3: Table Of Contents
XII. BLUEDENT DATA I. UNIT DESCRIPTION AND FUNCTION Dental LED curing light BLUEDENT SMART built-in is an accessory to a medical device - specialized light source for intraoral polymerization of dental materials, sensitive to the blue part of the light spectrum. -
Page 4: Symbols
BLUEDENT SMART built-in LED curing light II. SYMBOLS Caution! Indicates the need for the user to consult the instructions for use for important cautionary information such as warnings and precautions that cannot, for a variety of reasons, be presented on the medical device itself. - Page 5 BLUEDENT SMART built-in LED curing light Batch code Indicates the manufacturer's batch code so that the batch or lot can be identified. Applied part type B according to electric safety classification Temperature limit Indicates the temperature limits to which the medical device can be safely exposed.
-
Page 6: Safety Precautions
BLUEDENT SMART built-in LED curing light III. SAFETY PRECAUTIONS GENERAL WARNINGS: BLUEDENT is a Class I accessory to a medical device and it meets the strict requirements of the Medical Devices Regulation - MDR (EU) 2017/745. In order to be used safely for staff and patients, the following rules must be observed: - Do not allow unauthorized and untrained personnel to use the device to avoid risks. - Page 7 BLUEDENT SMART built-in LED curing light - In accordance with the requirements of MDR (EU) 2017/745, user and / or the patient must report any serious accident that have occurred during us of the device to the manufacturer and the competent authority of the Member State in which the user/patient is established.
- Page 8 BLUEDENT SMART built-in LED curing light 2. Light radiation BLUEDENT is a source of extremely intense light in the blue range, to which the human eye has a high sensitivity. This results in serious measures to be taken for patients, medical staff and accidentally nearby people, animals and plants.
- Page 9 BLUEDENT SMART built-in LED curing light 4. Fire safety - Keep the device away from solvents, flammable liquids and powerful heat sources. - Do not expose to direct sunlight. - Do not allow liquids and detergents to enter the device, as this may cause a short circuit and fire or cause potentially dangerous damage.
-
Page 10: Technical Data
BLUEDENT SMART built-in LED curing light IV. TECHNICAL DATA 1. Operating voltage: – 24V AC/DC or 110-240V / 50-60Hz (depending on specification of device) 2. Power consumption: - 24V AC/DC – 0,35А - 110-240V / 50-60Hz – 0,115А 3. Dimensions (approx.) - Cordless handpiece - diameter - 32mm;... -
Page 11: Complete Set
BLUEDENT SMART built-in LED curing light V. COMPLETE SET 1. Charging adapter 100-240V AC / 24V DC - 1 pc. (for 220V model with adapter) 2. Emitting handpiece - 1 pc. 3. Holder - 1 pc. 4. Protection filter and cap – 1 pc. -
Page 12: Preparation And Sequence Of Operation
1. Take the curing light out of the packing. The holder is fixed on a suitable vertical surface with the included fasteners. 2. By turning off the power to the dental chair, the power to the BLUEDENT SMART built-in (version 24V) is also turned off. - Page 13 For polymerization of anterior teeth / general application 4. BLUEDENT SMART has 4 work modes, which guarantee fast polymerization and complete hardening of the photocomposite material. The selection of the mode is done by pressing the MODE button located below the left side of the display:...
- Page 14 BLUEDENT SMART built-in LED curing light F - FAST mode (10 - 20 - 30 sec) The emitted light has a high intensity - 100% without a soft start to achieve complete polymerization. P - PULSE mode (10 - 20 - 30 sec) It emits pulsating light, which helps reduce shrinkage in the photocomposite.
- Page 15 BLUEDENT SMART built-in LED curing light 6. The handpiece is aimed at the place designated for irradiation, the tip of the lighguide is brought as close as possible to the object of irradiation (4 - 7 mm) and after a few seconds when the surface layer has hardened enough, it can be irradiated contact.
-
Page 16: Routine Care And Maintenance
BLUEDENT SMART built-in LED curing light VII. ROUTINE CARE AND MAINTENANCE 1. Examining of lightguide / protection cap. Lightguide is mounted / dismounted by pulling (360 degrees rotatable). Every day the lightguide tip should be examined for: - stuck restorative material (it should be removed very carefully with blunt non-metal object);... -
Page 17: Warranty Conditions
BLUEDENT SMART built-in LED curing light VIII. WARRANTY CONDITIONS 1. Warranty period of BLUEDENT dental curing light is 24 (twenty four) months from the date of purchase. If date of purchase is not written, warranty starts at date of production. - Page 18 BLUEDENT SMART built-in LED curing light 4. The manufacturer provides its customers once a year (and in case of a situation - immediately) to check in the company service whether the performance of the devices is within the acceptable limits.
-
Page 19: Service Data
BLUEDENT SMART built-in LED curing light SERVICE DATA... -
Page 20: Faq
BLUEDENT SMART built-in LED curing light X. FAQ Problem Solution Weak polymerization effect It is necessary to clean the tip of the fiberoptic lightguide with a non-metallic object and to clean the adhered composite or other with alcohol. If the result is poor - send the device to the service. - Page 21 BLUEDENT SMART built-in LED curing light...
-
Page 22: Declaration Of Conformity
155, Vasil Aprilov blvd., 4027 Plovdiv, Bulgaria Tel.: +359 32 644089, +359 888 809256, email: office@bglight.com BULSTAT UIC 115841960, VAT N: BG115841960 Product: Product code: Name: BLUEDENT SMART – built-in Dental LED curing light 200-005 Basic UDI: 3800501374200000VX EMDN code:... - Page 23 MD/1971/4047/2020 from TUV NORD Polska Sp. z o.o. (NB 2274). BG LIGHT LTD maintains data on the provision, evaluation and maintenance of compliance of the medical device, according to the requirements of Annex II "Technical documentation" of MDR (EU) 2017/745.
-
Page 24: Bluedent Data
BLUEDENT SMART built-in LED curing light XII. BLUEDENT DATA LOT: DATE OF PRODUCTION: DATE OF PURCHASE: Last revision: 01.01.2023 Follow www.bglight.com for updated revision of this Operating instructions manual.
