BEGA 7263LED Installation And Technical Information

BEGA
Installation and Technical Information
Tools Required:
3mm hex key
Standard small slotted screwdriver
Digging tool
CSA certifi ed to U.S. and Canadian standards. Suitable
for wet locations.
Protection Class: IP64
Weight: 6.3 lbs.

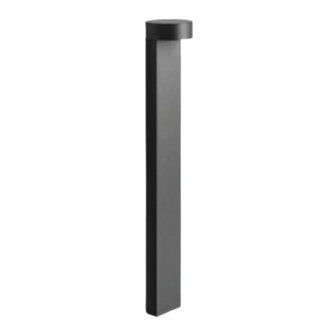

Luminaire 7263LED:
Housings: Garden bollard housing made of aluminum alloy with
matte safety glass. Anchorage post (supplied) made of galvanized
steel.
Electrical: 3.4W LED luminaire, 5 total system watts, -30°C start
temperature. Integral 12V AC driver provided. Standard LED color
temperature is 3000K with an 85 CRI.
Warranty: 3 year manufacturer warranty
Notice to Installer for 7263LED:
WARNING: LEDs are high-quality electrical components. Please
avoid opening upper electrical compartment and do NOT touch LED
module.
1. Compatible for use with 12-24V AC input voltage.
2. Voltage must NOT drop below 10V.
3. Turn main power OFF before start of installation.

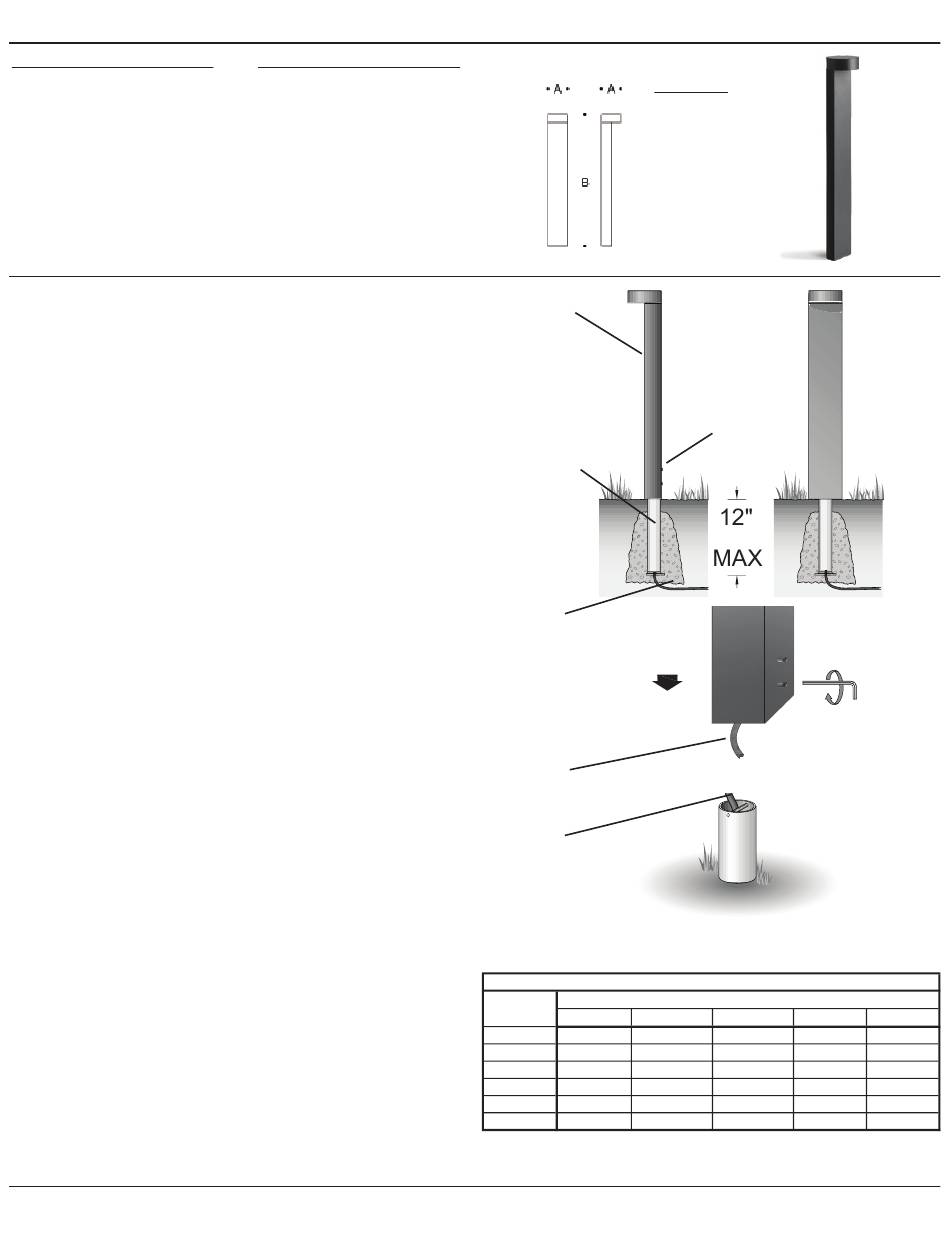

7263LED installation:
1. Establish area for fi xture placement and prepare soil for
anchorage by digging a hole (12" maximum depth).
2. Dig a trench from the anchorage hole to the power source. Depth
of the trench will be determined by national, state, and local
codes.
3. Install at least 3" of pea gravel or similar in the bottom of the
anchorage hole for drainage.
4. Loosen (2) set screws on garden bollard to release anchorage
post.
5. Bring 12V-24V supply wiring into the bottom of the anchorage post
and feed through to the top until there is 12" of cable coming up
through the top of the anchorage post.
6. Bury supply wiring cable in trench.
7. Place anchorage post into hole and fi ll in hole with packed soil,
making sure that the post is vertical and secure.
8. Make wire splices from supply wiring coming out of anchorage
post to bollard wiring coming down from bollard shaft. For
maximum wire run lengths, see table to the right.
9. Push splices into bollard shaft.
10. Mount bollard onto anchorage post until the bottom of the
bollard hits the ground. Tighten (2) set screws to secure bollard to
anchorage shaft.
11. Connect supply wiring to main power. Turn main power on.
Lamp: Integral 3.2W LED Module
(No replacement necessary)
In the interest of product improvement, BEGA reserves the right to make technical changes without notice.
© Copyright BEGA-US 2012
Replacement Parts:
LED Module LED-0234/830
LED Driver 75946
Garden luminaire - low voltage
Dimensions
A: 4 3/8"
B: 27 1/2"
Garden bollard
Anchorage post
Supply wiring
Bollard wiring
Supply wiring
Max. Run Length (ft) Per Wire Size: 2 Volt drop
Connected
LED Watts
18
40 46
30 61
20 92
15 122
10 183
5 366
7263LED
Set screws
Wire Size (AWG)
16 14 12
73 116 185
97 155 246
146 232 369
195 309 492
292 464 738
585 928 1477
10
294
392
588
784
1176
2353
7263LED
10/8/2012
