Lorex VANTAGE LBC7183 Quick Start Manual

Contents

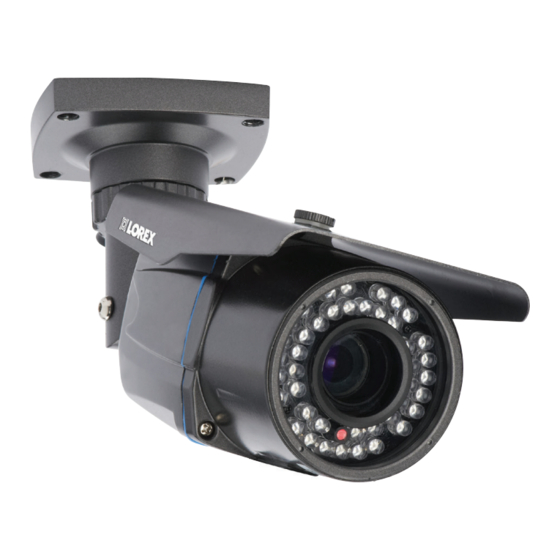

• Weatherproof varifocal IR bullet camera
• 4x screws / 1x mounting template / 1x allen key
• 60ft BNC / power extension cable
• 12V DC power adapter
• BNC female / RCA male adapter
WARNING
- A REGULATED UL / CSA APPROVED 12V DC power supply is
REQUIRED for use with this camera. Use of a non-regulated, non-conforming
power supply can damage this product and voids the warranty.

Features

• Advanced 960H Sony EXview™ II image sensor.
• Video image processor delivers up to 700TV lines of resolution.
• 960H capable image sensor delivers up to 34% more resolution than
D1 and 5x more than CIF*.
• Offers a true to life non-streched aspect ratio that provides sharper,
more detailed images.
• 2.8 12mm manual zoom lens to customize viewing angle (
–
diagonal field of view).
• ClearNight Imaging for enhanced low light performance improving
recording efficiency up to 30%.
• Night Vision up to 165ft away in ambient lighting conditions and up
to 110ft away in total darkness**.
• Split glass design minimizes IR reflection.
• Weatherproof rated housing for indoor and outdoor installation***.
• Robust vandal resistant housing with cable pass through bracket.

Disclaimers:

* When connected to a 960H capable DVR.
** Stated IR illumination range is based on ideal conditions in typical outdoor night time
ambient lighting and total darkness. Actual range and image clarity depends on installation
location, viewing area, and light reflection/absorption level of object.
*** Not intended for submersion in water. Installation in a sheltered location recommended.

Warning/Caution

• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use of the product and handle with
care.
• Use the camera within given temperature, humidity, and voltage
levels noted in 'Camera Specifications'.
• Do not disassemble the camera.
• Do not point the camera directly towards the sun or a source of
intense light.
• Use only the supplied regulated power supply. Use of a
non-regulated, non-conforming power supply can damage this
product and voids the warranty.
• Periodic cleaning may be required. Use a damp cloth only. Do
not use harsh cleaners or aerosol cleaners.
• The supplied extension cable is rated for surface mounting only.
• Cables for in-wall / floor-to-floor installations are sold separately.

Installation Tips

• Point the camera where there is the least amount of obstructions
(i.e. tree branches).
• Install the camera in a location that is difficult for vandals to reach.
• Secure cabling so that it is not exposed or easily cut.
• Camera rated for outdoor use. Installation in a sheltered location
recommended.

Camera Specifications

Image Sensor
Video Format
Effective Pixels
Resolution
Scan System
Sync System
S / N Ratio
Iris
AES Shutter Speed
Min. Illumination
Video Output
33–104°
Lens / Lens Type
FOV (Diagonal)
Termination
IR LED Qty. / Type
Night Vision Range*
Power Requirement
Power Consumption
Operating Temp. Range
Operating Humidity Range
Indoor / Outdoor**
Weight (including stand)
* Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient
lighting and total darkness. Actual range and image clarity depends on installation location, viewing
area, and light reflection / absorption level of object.
** Not intended for submersion in water. Installation in a sheltered location recommended.
Dimensions
235mm / 9.3"
130mm
5.1"
FOR SUPPORT AND INFORMATION,
VISIT WWW.LOREXTECHNOLOGY.COM
Product Information
User Manuals
Quick Start Guides
Copyright © 2013 Lorex Technologies Inc.
As our products are subject to continuous improvement, Lorex reserves the right to modify product
design, specifications and prices, without notice and without incurring any obligation. E&OE
1/3" Sony EXview HAD™ II 960H
NTSC
H: 976 V: 494
Up to 700 TV Lines
2:1 Interlace
Internal
> 48dB
AES
1/60 ~ 1/100,000 sec.
0.1 Lux without IR LED
0 Lux with IR LED
Composite 1.0Vpp @ 75ohm
2.8–12mm F1.4 / Varifocal
33–104°
BNC Type
36 pieces / 850nm
165ft (50m) / 110ft (34m)
12V DC ±10%
Max. 420mA (w/IR)
14° ~ 12 2°F / –10° ~ 50°C
< 80% RH
Both (IP66)
1.7lbs / 0.8kg
95mm / 3.7"
Specification Sheets
Software Upgrades
Firmware Upgrades
960H WEATHERPROOF
IR NIGHT VISION CAMERA
Quick Start Guide
English Version 2.0
LBC7183
