Lorex VANTAGE LBC6651 Quick Start Manual

Contents
• Super+ Resolution Color Camera with cable pass-
through stand
• Mounting screws x 3 / Allen key x 1
• 60ft BNC / power extension cable
• BNC female / RCA male adapter
• Power adapter
WARNING - A REGULATED UL / CSA APPROVED power supply is
REQUIRED for use with this camera. Use of a non-regulated, non-conforming
power supply can damage this product and voids the warranty.
Features
• Super+ Resolution with megapixel optics delivering crystal clear video at
660TV lines
• BrightNight viewing with enhanced low light image sensor
• Close-up recognition at night with auto-light compensation prevents wash-
out effect
• Anti-glare feature ensures clear images under strong lighting conditions
• Accurate colors with Lorex's automatic light filtering technology
• Reliable camera operation coupled with patented ImageCool™
technology ensures optimal performance in extreme temperatures
(–22° ~ 122°F / –30° ~ 50°C)
• Long range night vision up to 100ft (30m) away in total darkness*
• 6mm lens captures far away objects (50° FOV)**
• Split glass design and coated sunshade minimize IR reflection
• Vandal-resistant design: cable pass-through bracket protects connection
cables
• IP66 rated aluminum housing for indoor / outdoor installations***
Disclaimers:
* IR Illumination Range under ideal conditions. Objects at or beyond this range may be partially
or completely obscured, depending on the camera application.
** Field of View, Diagonal
*** Not intended for submersion in water. Installation in a sheltered location recommended.
Warning/Caution
• Read this guide carefully and keep it for future reference
• Follow all instructions for safe use of the product and handle with care
• Use the camera within given temperature, humidity and voltage levels
noted in Camera Specifications
• Do not disassemble the camera
• Do not point the camera directly towards the sun or a source of intense
light
• Use only the supplied regulated power supply. Use of a non-regulated,
non-conforming power supply can damage this product and voids the
warranty
• Periodic cleaning may be required. Use a damp cloth only. Do not use
harsh cleaners or aerosol cleaners.
• The supplied extension cable is rated for surface mounting only
• Cables for in-wall / floor-to-floor installations are sold separately
Installation Tips
• Point the camera where there is the least amount of obstructions (i.e. tree
branches)
• Install the camera in a location that is difficult for vandals to reach
• Secure cabling so that it is not exposed or easily cut
• Camera rated for outdoor use. Installation in a sheltered location
recommended
Camera Specifications
Image Sensor 1/3" Color Image Sensor
Video Format NTSC
Effective Pixels H: 720 V: 480
Resolution 660 TV Lines
Scan System 2:1 Interlace
Sync System Internal
S / N Ratio 48dB (AGC Off)
Iris AES
AES Shutter Speed 1/60 ~ 1/25,000 sec.
Min. Illumination 0.1 Lux without IR LED
0 Lux with IR LED
Video Output Composite 1.0Vpp @ 75ohm
Lens / Lens Type 6mm F2.0 / Fixed
FOV (Diagonal) 50°
Termination BNC Type
IR LED Qty. / Type 30 pieces / 850nm
Night Vision Range* 100ft / 30m
Power Requirement 12V DC ±10%
Power Consumption Max. 330mA (w / IR)
Operating Temp. Range –22° ~ 122°F / –30° ~ 50°C
Operating Humidity Range < 90% RH
Environmental Rating** IP66
Weight (including stand) 1.0lbs / 0.5kg
* IR Illumination Range under ideal conditions. Objects at or beyond this range may be partially or
completely obscured, depending on the camera application.
** Not intended for submersion in water. Installation in a sheltered location recommended.
Dimensions
84mm / 3.3"
70mm / 2.7"
FOR SUPPORT AND INFORMATION,
VISIT WWW.LOREXTECHNOLOGY.COM
Product Information
User Manuals
Quick Start Guides
Copyright © 2012 Lorex Technologies Inc.
As our products are subject to continuous improvement, Lorex reserves the right to modify product
design, specifications and prices, without notice and without incurring any obligation. E&OE
Quick Start Guide
English Version 1.0
210mm / 8.2"
Specification Sheets
Software Upgrades
Firmware Upgrades

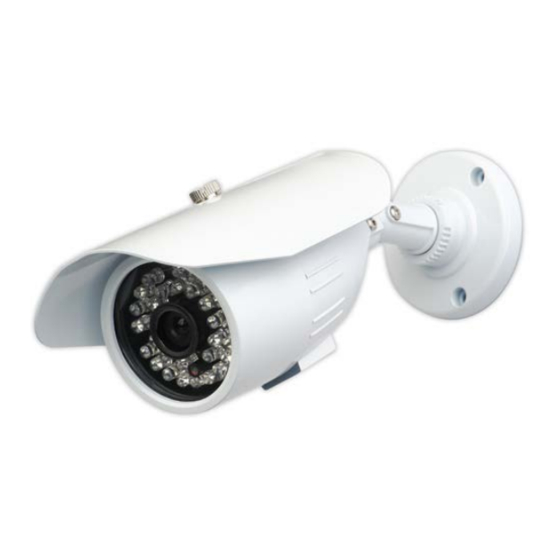

SUPER+ RESOLUTION
IR NIGHT VISION CAMERA
LBC6651
