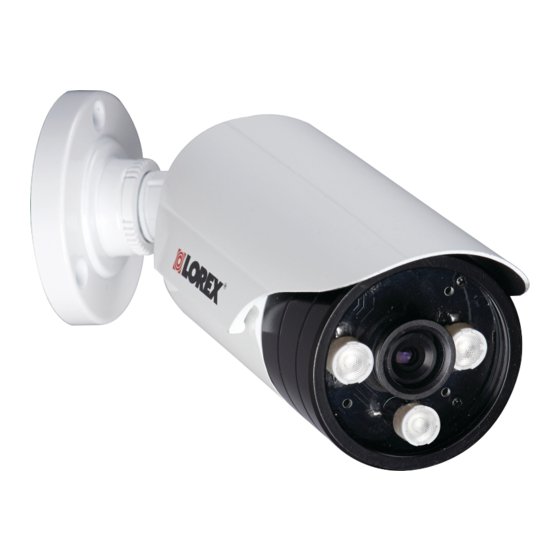

Lorex VANTAGE LBC7032 Quick Start Manual

Contents
• IR Night Vision Camera
• Mounting Kit / Allen Key
• 60ft BNC / Power Extension Cable
• BNC female / RCA male adapter
• Power Adapter
WARNING
- A REGULATED UL / CSA APPROVED power supply is
REQUIRED for use with this camera. Use of a non-regulated, non-conforming
power supply can damage this product and voids the warranty.
Features
• Advanced 960H Image Sensor*
• Video image processor delivers up to 700TV lines of resolution
• 960H (960x480) image sensor delivers up to 34% more resolution than
D1 and 5x more than CIF
• True-to-life non-stretched aspect ratio provides sharper, more detailed
images
• 6mm fixed lens offers a close up view (53° diagonal field of view)
• ProLux IR LED's provide longer night vision range, longer lifespan, and
illuminate more evenly
• Night vision up to 185ft (55m) away in ambient lighting conditions and
up to 120ft (35m) away in total darkness**
• Split glass design minimizes IR reflection
• Weatherproof rated housing for indoors & outdoor installation (IP66)***
• Robust vandal resistant housing with cable pass through bracket
Disclaimers:
* When connected to a 960H capable DVR.
** Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient
lighting and in total darkness. Actual range and image clarity depends on installation location,
viewing area and light reflection / absorption level of object.
*** Not intended for submersion in water. Installation in a sheltered location recommended.
Warning/Caution
• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use of the product and handle with care.
• Use the cameras within given temperature, humidity and voltage levels
noted in 'Camera Specifications'.
• Do not disassemble the cameras.
• Do not point the cameras directly towards the sun or a source of intense
light.
• Use only the supplied regulated power supply. Use of a non-regulated,
non-conforming power supply can damage this product and voids the
warranty.
• Periodic cleaning may be required. Use a damp cloth only. Do not use
harsh cleaners or aerosol cleaners.
• The supplied extension cable is rated for surface mounting only.
• Cables for in-wall / floor-to-floor installations are sold separately.
Installation Tips
• Point the cameras where there is the least amount of obstructions (i.e. tree
branches).
• Install the cameras where they are difficult for vandals to reach.
• Secure cabling so that it is not exposed or easily cut.
• Cameras rated for outdoor use. Installation in a sheltered location
recommended.
Camera Specifications
Image Sensor 1/3" 960H Advanced Image Sensor
Video Format NTSC
Effective Pixels H: 976 V: 496
Resolution 700 TVL
Scan System 2:1 Interlace
Sync System Internal
S / N Ratio 46dB (AGC Off)
Iris AES
AES Shutter Speed 1/60 ~ 1/100,000 Sec.
Min. Illumination 0.1 Lux without IR LED
0 Lux with IR LED
Video Output Composite 1.0Vpp @ 75ohm
Lens / Lens Type 6mm F2.0 / Fixed
FOV (Diagonal) 53°
Termination BNC Type
IR LED Qty. / Type 3 Super LED / 850nm
Night Vision Range* 185ft (55m) / 120ft (35m)
Power Requirement 12V DC ±10%
Power Consumption Max. 460mA (w / IR)
Operating Temp. Range 14° ~ 122°F / –10° ~ 50°C
Operating Humidity Range < 80% RH
Indoor/Outdoor** Both (IP66)
Weight (including stand) 0.9lbs / 0.4kg
* Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient
lighting and in total darkness. Actual range and image clarity depends on installation location,
viewing area and light reflection / absorption level of object.
** Not intended for submersion in water. Installation in a sheltered location recommended.
Dimensions
64mm / 2.5"
209mm / 8.2"
68mm / 2.7"
FOR SUPPORT AND INFORMATION,
VISIT WWW.LOREXTECHNOLOGY.COM
Product Information Specification Sheets
User Manuals
Software Upgrades
Quick Start Guides
Firmware Upgrades
Copyright © 2013 Lorex Technologies Inc.
As our products are subject to continuous improvement, Lorex reserves the right to modify product
design, specifications and prices, without notice and without incurring any obligation. E&OE
960H WEATHERPROOF
NIGHT VISION SECURITY CAMERA
Quick Start Guide
English Version 1.0
LBC7032
