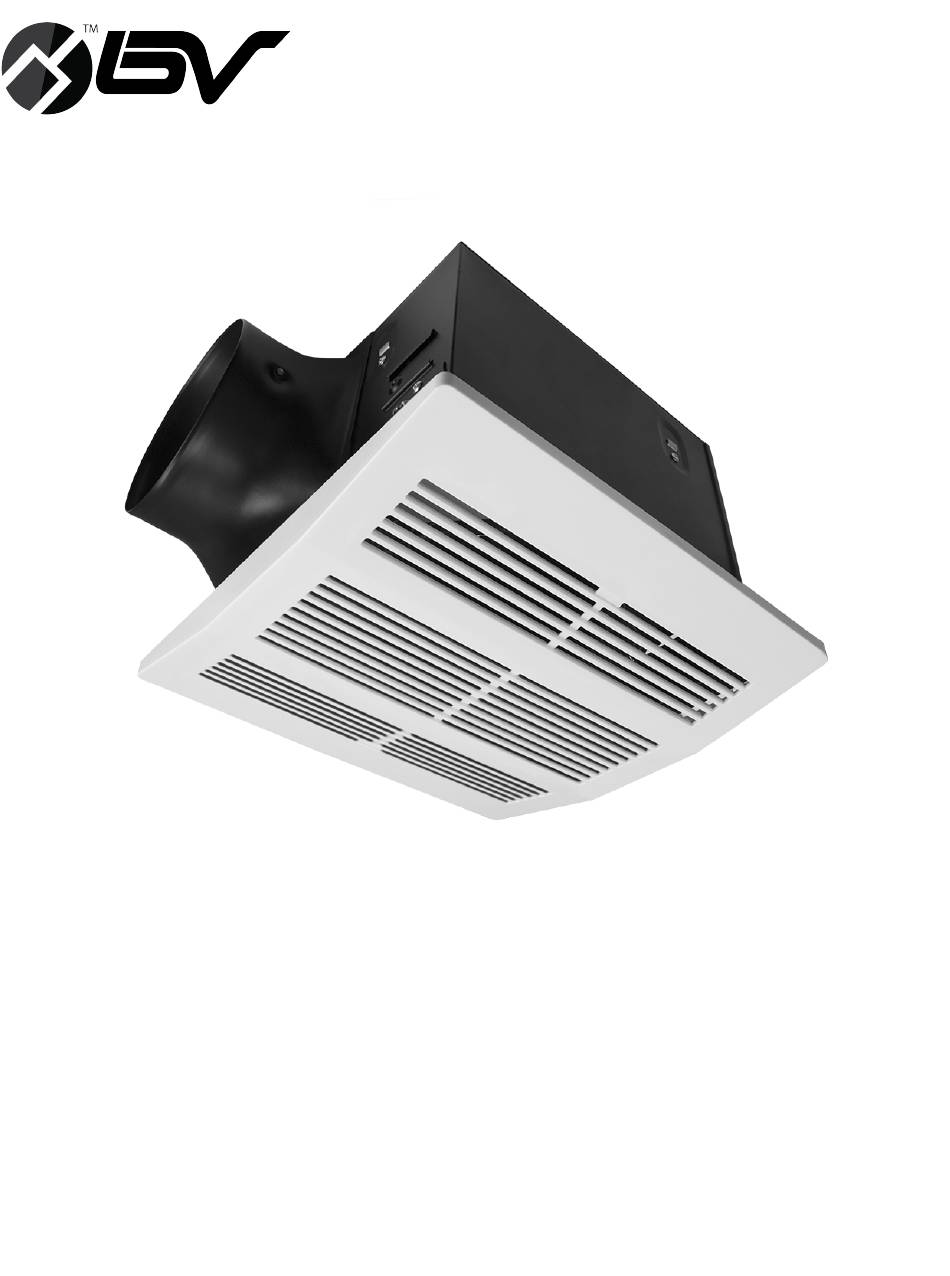

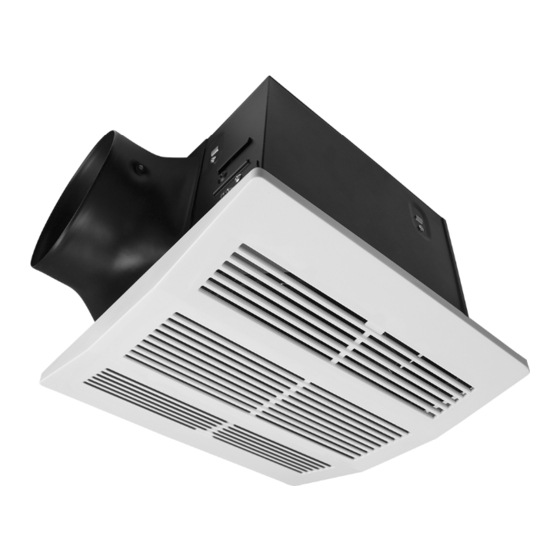

  • Page 1 VENTILAtion fan MODEL: BV-BF-04 INSTALLatiON MANUAL and USER GUIDE...

  • Page 2: Table Of Contents

    CONTENTS General Safety Information and Warnings ................Included Parts and Accessories ....................Additional Tools/Supplies Required for Installation ............Planning Installation ........................Specifications ............................. Dimensions ............................Wiring Diagram ..........................Fan Housing Installation (Direct Joist or Suspension Bracket Joist Mounting) ..Cleaning The Ventilation Fan .......................

  • Page 3: General Safety Information And Warnings

    General safety information and warning READ and SAVE THESE INSTRUCTIONS This commercial series bathroom fan uses state-of-the-art technology providing superior, long-life performance for your room ventilation needs. GENERAL SAFETY INFORMATION AND WARNINGS For your safety and to ensure proper performance of the unit, it is very important to read these instructions carefully before installation.
  • Page 4 General safety information and warning Ducted fans must always be vented to the outdoors. If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be connected to a GFCI (Ground Fault Circuit Interrupter) - protected branch circuit.? The ceiling shall only be installed if the insulation is greater than the value specified in section 6.4.9.

  • Page 5: Included Parts And Accessories

    INCLUDED PARTS And accessories Part # Part # Part Name/Photo Part Name/Photo M4*30 M4*12 M4*10 Bath fan housing 12” Suspension bracket 6” Suspension bracket Bath fan grille 14” Suspension bracket ADDITIONAL TOOL/SUPPLIES LIST OF ADDITIONAL TOOLS/SUPPLIES REQUIRED FOR INSTALLATION Safety glasses 6-in.

  • Page 6: Planning Installation

    PLANNING INSTALLation When installing the ventilation fan in a new construction site, install the main body of the fan and ductwork during the rough-in construction of the building. The grille should be installed after the finished ceiling is in place. Use the dimensions provided in this manual to determine the required hole size for the ceiling.

  • Page 7: Specifications

    Model No. Air CFM Duct Diameter Noise (Sones) BV-BF-04 200CFM 6 in. (15.25 cm) DIMENSIONS Housing Housing Ceiling Ceiling Ceiling Dimension – W x L Dimension - D Opening - W x L Opening - D Opening - W x L 8 in.
  • Page 8 Fan housing installation FAN HOUSING INSTALLATION (DIRECT JOIST MOUNTING OR SUSPENSION BRACKET JOIST MOUNTING) Check the area above installation location to be sure that: a. Ductwork can be run and there is sufficient area for proper ventilation; b. Wiring can be run to the planned location (wires from the power supply to the unit should not be smaller than size 14 AWG);...

  • Page 9: Fan Housing Installation (Direct Joist Or Suspension Bracket Joist Mounting)

    Fan housing installation Step 2: Direct Joist-Mount: Slide suspension brackets (Part Suspension Bracket-Mount: Slide suspension #5 (back) and Part #6 (front)) into slots in fan brackets (Part #5 (back) and Part #6 (front)) into housing. Using wood screws (Part #3), secure slots in fan housing.
  • Page 10 fan housing installation Step 3: Step 4: To secure brackets to fan housing, insert Install a 6-in. circular duct and secure to machine screws (Part #4) in each. Tighten machine housing with foil duct tape or clamp. screws to prevent housing vibration while fan is in operation.

  • Page 11: Cleaning The Ventilation Fan

    CLEANING THE VENTILation fan Cleaning the unit periodically is advisable since dust, molds, grease, and other dirt particles can affect the conductivity of the air in the unit. Clean the unit as follows: 1) Remove the plastic grille. 2) Wash the cover with lukewarm water and use mild detergent such as liquid soap (avoid harsh detergent or boiling water).
