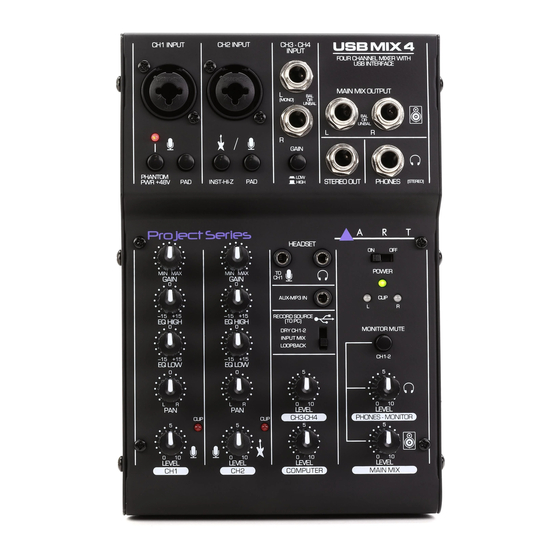

USBMIX4
FOUR CHANNEL MIXER WITH USB INTERFACE
Project Series
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USBMix4 and is the answer not in the manual?

Questions and answers

Related Manuals for Art USBMix4

Summary of Contents for Art USBMix4

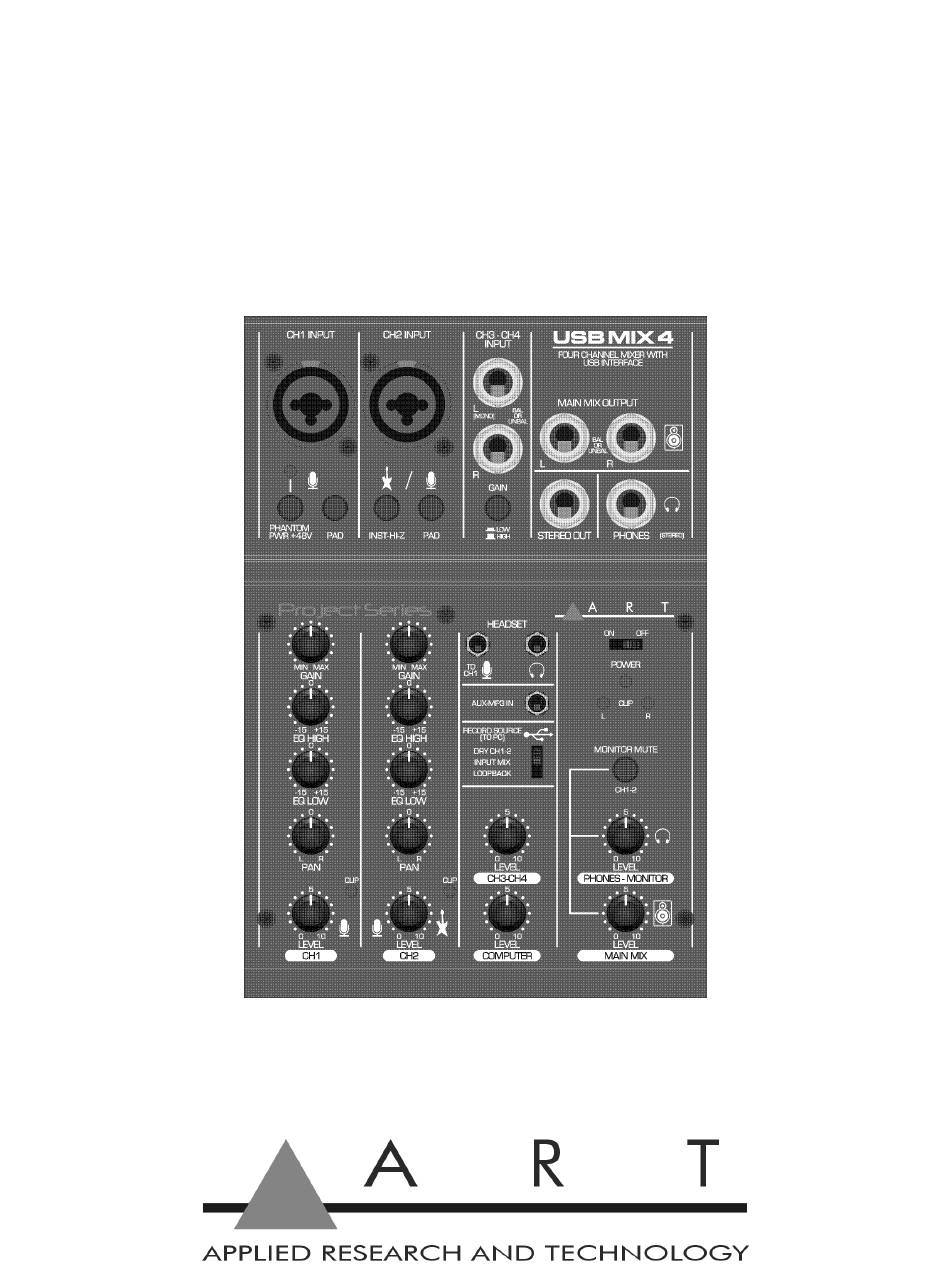

  • Page 1 USBMIX4 FOUR CHANNEL MIXER WITH USB INTERFACE Project Series User's Manual...

  • Page 2: Important Safety Instructions - Read First

    IMPORTANT SAFETY INSTRUCTIONS - READ FIRST This symbol, wherever it appears, This symbol, wherever it appears, alerts you alerts you to the presence of uninsulated to important operating and maintenance dangerous voltages inside the enclosure that instructions in the accompanying literature. may be sufficient to constitute a risk of shock.
  • Page 3 The USBMIX4 provides a great starting point for personal home studio recording or for anyone wants to do mobile location recording. Use the USBMIX4 to record pod casts, capture your latest idea for a song, make voiceovers for your home movies, or record a jam with a...

  • Page 4: Installation

    INSTALLATION Prior to power up or power down, the output controls PHONES MONITOR and MAIN MIX should be turned back to “0”. 1. As audio sources, microphones and/or audio sources with line signal level (e.g. effect units, musical instruments, players) can be connected to the four input channels. 2.

  • Page 5: Controls And Indicators

    CONTROLS AND INDICATORS...
  • Page 6 USB jack (type B): For connecting to a computer using the included USB 2.0 cable. When connected to a computer, the computer supplies power to the mixer and audio data can be sent between the mixer and computer. Note: Please do not connect any device to this USB jack other than a personal computer or tablet devices.
  • Page 7 Gain switch Determines the basic volume for each channel 3/4. Turn this switch on if you hear distortion. Note: Turn the level knob to minimum before toggling the [GAIN] switch on and off Otherwise, noise may be produced. Stereo output (Phone jack, unbalanced) for connection of an amplifier or another unit, e.g. a second mixer.
  • Page 8 TO PC slide switch Select the audio to send to the computer [DRY CH 1-2]: This switch enables the audio to be sent from channel 1 and 2 directly to the computer. The audio levels sent to the computer from CH1 and CH2 can be adjusted by the Gain and Level pots for those channels.

  • Page 9: Operation With A Computer

    OPERATION WITH A COMPUTER 1. When operating the mixer with a computer, either use the audio software supplied with the operating system or audio software installed additionally. Various programs for audio reproduction/ recording are available on the Internet free of charge. 2.

  • Page 10: Mixing Audio Sources

    MIXING AUDIO SOURCES The following steps merely serve as an aid, for basic setup, other methods are also possible. As a basic setting first: 1. Set all controls GAIN, EQ and PAN to mid-position. 2. Turn all control LEVEL back to the left stop. 3.
  • Page 11 APPLICATIONS This compact 4-channel audio mixer with USB interface is suited for universal applications, e.g. for audio recording on the computer. The mono input channel allows connecting a (phantom-powered) microphone; the stereo input channel allows connecting an audio source with line signal level. In addition, the mixer is provided with connections for a recorder and headphones.

  • Page 12: Warranty Information

    This warranty is void if the serial number is altered, defaced, or removed. ART reserves the right to make changes in design or make additions to or improvements upon this product without any obligation to install the same on products previously manufactured.
  • Page 13 2. If you believe that the ART unit is at fault, go to www.artproaudio.com. 3. Select “Support”, then “Return Authorization Request” to request a return authorization number.

  • Page 14: Specifications

    45mm x 130mm x 191mm Weight 1.56 lbs. (.71 kg) Note: 0 dBu = 0.775Vrms ART maintains a policy of constant product improvement. Therefore, specifications are subject to change without notice. www.artproaudio.com Go to for the latest information and support.
  • Page 16 www.artproaudio.com E-mail: support@artproaudio.com © 2016 Applied Research & Technology USB MIX4 185-5004-101 FOUR CHANNEL MIXER WITH USB INTERFACE...
