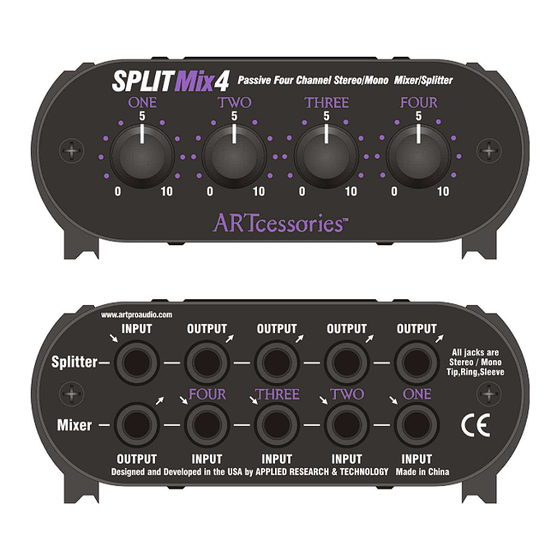

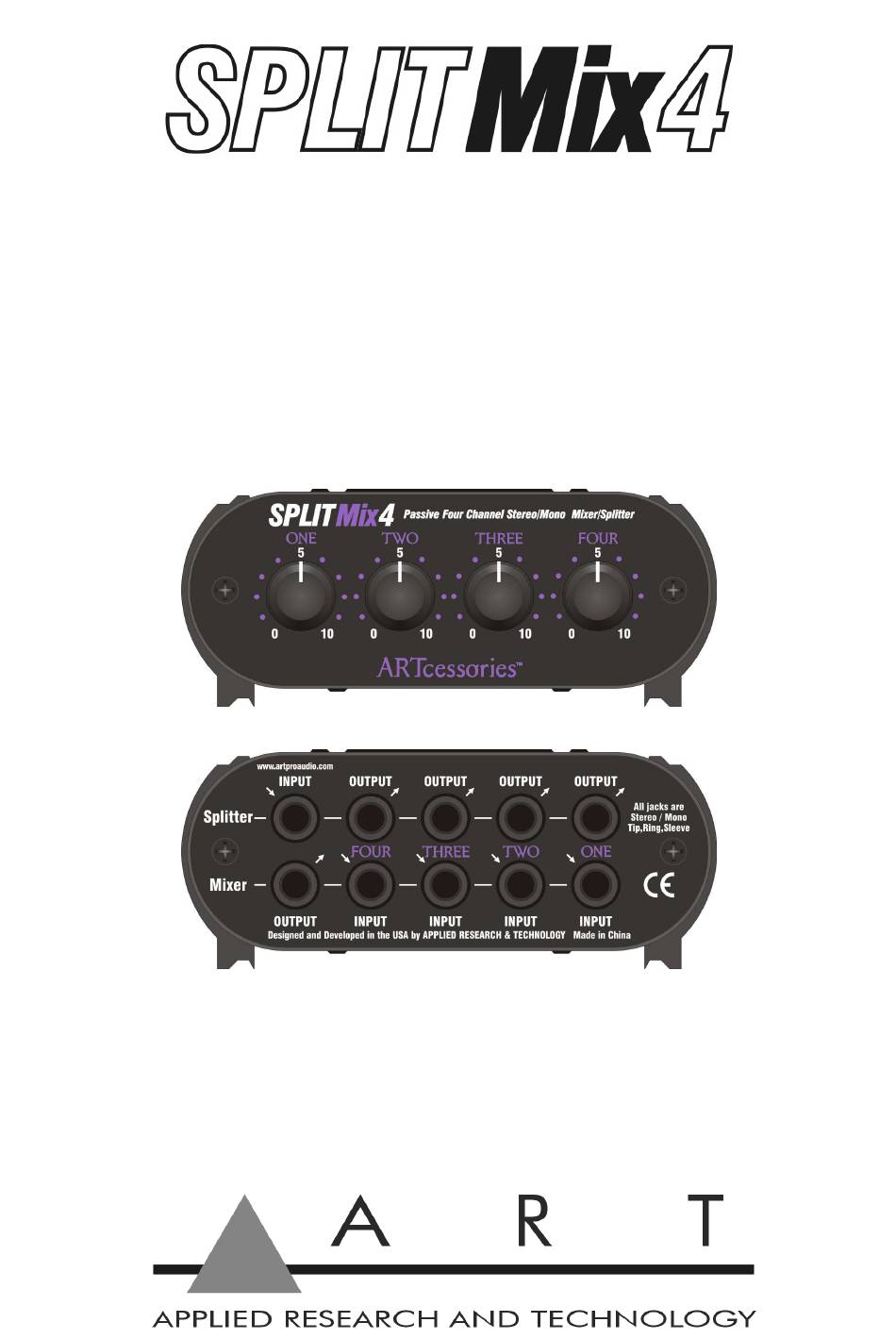

- Page 1 Passive Four Channel Stereo/Mono Mixer/Splitter Artcessories User's Manual...
- Page 2 IMPORTANT SAFETY INSTRUCTION – READ FIRST This symbol, whenever it appears, This symbol, whenever it appears, alerts you to important operating alerts you to the presence of and maintenance instructions in uninsulated dangerous voltage the accompanying literature. inside enclosure-voltage that may be Please read the manual.
- Page 3 Stereo or mono operation is determined by the type of ¼-inch plug and cabling that you use. The fully passive design of the SPLITMix4 has no active circuitry to add noise or distortion, and virtually any signal level can be handled. The Level attenuators cover a wide range and offer over 90dB of attenuation and channel isolation.
- Page 4 APPLICATIONS: The following chart shows 9 ways to configure the SPLITMix4 for a wide range of applications. Stereo keyboards are shown as the source but any line level signal will work. Stereo powered speakers are shown as the load but the outputs will work just fine into a mixer, HiFi system, computer, or instrument amplifier.
- Page 5 Application Chart Descriptions Figure 1. Traditional 4-in 1-out mixer with separate level control for each channel. Figure 2. 1-in 4-out “distribution mixer” configuration, where each output channel can control different audio zones. Figure 3. Ch3 and 4 mix 2 sources into 1 output, while Ch1 and 2 provide 2 outputs from the splitter input source.
- Page 6 FRONT AND REAR UNIT LAYOUT...
-
Page 7: Specifications
SPECIFICATIONS: Frequency Response: 20Hz – 20kHz, +/-1dB THD: <.005% @ 1kHz (typical) Phase Response: <10 degrees @ 20kHz Input/Output Connections: ¼-inch TRS stereo Input Impedance: 25k - 100k Ohms Output Impedance: 1k - 4k Ohms Insertion Loss: 12dB (typical) Maximum Attenuation: >90dB (typical) Channel Isolation: >90dB (typical) -
Page 8: Warranty Information
This warranty is void if the serial number is altered, defaced, or removed. ART reserves the right to make changes in design or make additions to or improvements upon this product without any obligation to install the same on products previously manufactured. - Page 9 vary, from state to state. The warranty terms listed above are only valid within the United States of America. For units purchased outside the United States, an authorized distributor Applied Research Technology will provide service. For information on warranty and service policies outside of the U.S., please contact your local distributor.
- Page 10 You may want to consult with your dealer for assistance in troubleshooting or testing your particular configuration. If you believe that the ART unit is at fault, go to www.artproaudio.com. Select "Support", then "Return Authorization Request"...
- Page 12 E-mail: support@artproaudio.com © 2014 Applied Research & Technology SPLITMix4 SM4-5004-101 V1.3...
