- Page 1 Personal Monitor / Mixer Artcessories User's Manual...
- Page 2 IMPORTANT SAFETY INSTRUCTION – READ FIRST This symbol, whenever it appears, This symbol, whenever it appears, alerts you to the presence of alerts you to important operating uninsulated dangerous voltage and maintenance instructions in inside enclosure-voltage that may be the accompanying literature. sufficient to constitute risk of shock.

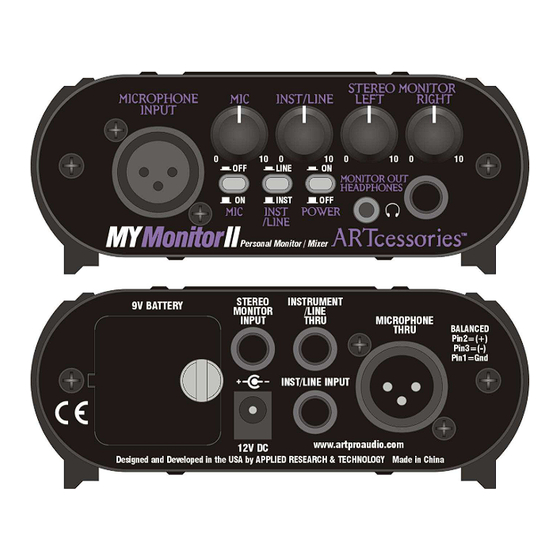

- Page 3 INTRODUCTION: The MYMonitorII lets a performer hear them self through headphones exclusively or mixed with the output of a mixer or other stereo source. The microphone thru provides a direct connection to your mixer and allows for phantom powering of condenser microphones from the board.
- Page 4 FEATURES: • High performance low noise circuitry • Microphone input and thru with pop-less on/off mute • Instrument/Line input and thru jacks • Stereo Monitor input • Monitor Out / Headphone output section has 1/8- inch and 1/4-inch jacks • 9V battery and 12V DC power operation •...
-
Page 5: Installation And Operation
INSTRUMENT/LINE THRU and the other end to where your signal was going to, The MYMonitorII is then inline with the feed to your amplifier or other device. Connect your mixers monitor output or other stereo source to the STEREO MONITOR INPUT. - Page 6 The INST/LINE switch, when in the out position, gives you enough gain for instrument level signals. If you have a higher line or speaker level signal then push the switch in and the signal will be attenuated at the input to prevent clipping. Once connections have been made and switches set you can adjust the front panel level controls for the desired signal levels at the headphone/monitor outputs.
-
Page 8: Specifications
SPECIFICATIONS: Frequency Response: 10 Hz - 50 kHz, ±1.0 dB @ +0 dBu THD: <.05% (typical) Maximum Gain: 44 dB (mic) 38 dB (instrument) 17 dB (line) 14 dB (stereo monitor) Signal to Noise Ratio: >96 dB Maximum Input Level: +6 dBu (mic) +12 dBu (instrument) +32 dBu (line) -
Page 9: Warranty Information
This warranty is void if the serial number is altered, defaced, or removed. ART reserves the right to make changes in design or make additions to or improvements upon this product without any obligation to install the same on products previously manufactured. - Page 10 vary, from state to state. The warranty terms listed above are only valid within the United States of America. For units purchased outside the United States, an authorized distributor Applied Research Technology will provide service. For information on warranty and service policies outside of the U.S., please contact your local distributor.
- Page 11 You may want to consult with your dealer for assistance in troubleshooting or testing your particular configuration. If you believe that the ART unit is at fault, go to www.artproaudio.com. Select "Support", then "Return Authorization Request"...
- Page 12 E-mail: support@artproaudio.com © 2016 Applied Research & Technology MYMonitorII MM2-5004-100 V1.0...
