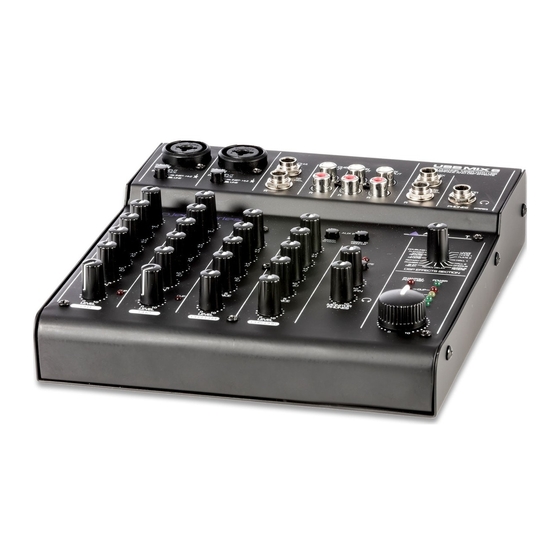

- Page 1 USBMIX6 SIX CHANNEL MIXER WITH USB INTERFACE AND DSP EFFECTS Project Series User’s Manual...
-
Page 2: Important Safety Instructions - Read First
IMPORTANT SAFETY INSTRUCTIONS - READ FIRST This symbol, wherever it appears, This symbol, wherever it appears, alerts you alerts you to the presence of uninsulated to important operating and maintenance dangerous voltages inside the enclosure that instructions in the accompanying literature. may be sufficient to constitute a risk of shock. - Page 3 INTRODUCTION The ART USBMIX6 Microphone, Instrument, and Line Mixer / Computer Interface is a compact versatile audio interface for your computer that converts analog signals from a variety of audio sources to a digital audio. The built-in low latency stereo digital effects add to the versatility. It can also be used as a stand-alone mixer through the main mix outputs.
-
Page 4: Installation
INSTALLATION This compact audio mixer with USB interface and DSP effect unit is suitable for universal applications, e.g. for audio recording with a the computer. It has four input channels, i.e. 2 x mono, 2 x stereo, for connecting microphones (also phantom-powered) and other audio sources with line signal level ( e.g. musical instruments, players). - Page 5 2. The RCA jacks Aux can be used for connection of a stereo recording device. 3. Connect the replay output of the stereo recording device to the input AUX IN; 4. Connect the recording input of the recording device to the output AUX OUT; the output receives the sum signal adjusted with the control MASTER MIX 5.
-
Page 6: Controls And Indicators
CONTROLS AND INDICATORS... - Page 7 Phantom Power Switch (+48 V) for the XLR jack of channels CH 1 and CH 2. Power Mains switch of the mixer. Power supply jack It is used for connecting the power supply adapter, provided. USB jack (type B) for the connection to a computer: it can be used both as an audio output (output of the sum signal) and as an audio input (feed-thru audio data for reproduction via channel CH 5/6).
- Page 8 USB Playback Switch assigns signal of USB jack to channels CH5/6 or to MONITOR PHONES. Assign to Main Used to switch the input signal of the input AUX INPUT to the Main Mix output. Assign to Monitor Used to switch the input signal of the input AUX INPUT to the headphone output. GAIN Control to adjust the input amplification, for channel CH 1 and channel CH 2.
-
Page 9: Operation With A Computer
OPERATION WITH A COMPUTER When operating the mixer with a computer, either use the audio software supplied with the operating system or audio software installed additionally. Various programs for audio reproduction/ recording are available on the Internet free of charge. 1. - Page 10 a. set all control GAIN, EQ, PAN /BAL to mid-position. b. Turn all control LEVEL back to "0". 2. To adjust a mono channel to an optimum level, feed an audio signal to the channel and turn up its control LEVEL approximately to mid-position. Adjust the control GAIN of the channel so that the 0 dB LED's of the level indication shortly light up at passages of highest volume.
- Page 11 6. To switch the signal of the input AUX IN, e.g. reproductions of MP3's or CD, to the sum signal, press the button ASSIGN TO MAIN. To feed the AUX IN signal only to the sum, turn the LEVEL controls of the input channels back to the stop.
-
Page 12: Warranty Information
This warranty is void if the serial number is altered, defaced, or removed. ART reserves the right to make changes in design or make additions to or improvements upon this product without any obligation to install the same on products previously manufactured. - Page 13 2. If you believe that the ART unit is at fault, go to www.artproaudio.com. 3. Select “Support”, then “Return Authorization Request” to request a return authorization number.
-
Page 14: Specifications
Weight 2.75 lbs. (1.25 kg) with power supply and USB cable Note: 0 dBu = 0.775Vrms ART maintains a policy of constant product improvement. Therefore, specifications are subject to change without notice. www.artproaudio.com Go to for the latest information and support... - Page 15 www.artproaudio.com E-mail: support@artproaudio.com © 2021 Applied Research & Technology/ Yorkville Sound USB MIX6 184-5004-102 SIX CHANNEL MIXER WITH USB INTERFACE ANS DSP EFFECTS...
