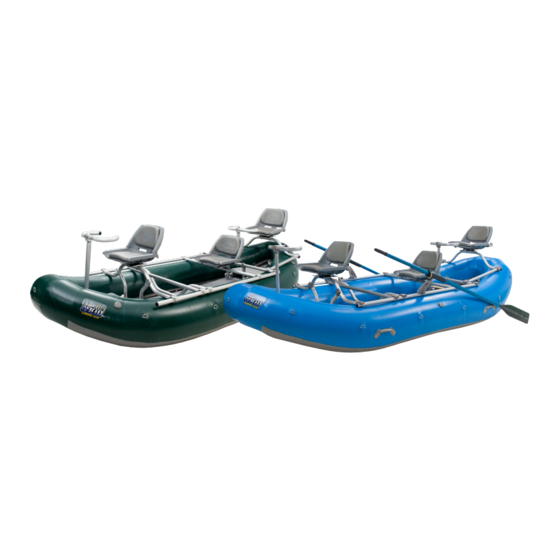

PAC 1300/1400 OWNER'S MANUAL
ALWAYS WEAR A COAST GUARD APPROVED FLOTATION DEVICE
WHEN OPERATING THE PAC 1300/1400.
Know the limits of your abilities and the limits of your equipment.
Changes in air temperature and elevation may cause the air inside the PAC
1300/1400 to expand which could cause a tube to burst. Always release some
air when these conditions occur.
Never leave your boat sitting in direct sunlight when it is out of the water.
This owner's manual will help you with initial set-up of your new
PAC 1300/1400, provide basic maintenance tips, and covers simple field repair.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAC 1300 and is the answer not in the manual?

Questions and answers

Related Manuals for Outcast Sporting Gear PAC 1300

Summary of Contents for Outcast Sporting Gear PAC 1300

  • Page 1 Never leave your boat sitting in direct sunlight when it is out of the water. This owner’s manual will help you with initial set-up of your new PAC 1300/1400, provide basic maintenance tips, and covers simple field repair.
  • Page 2 BEFORE YOU BEGIN, Check for damaged or missing parts. 1 - PAC 1300/ or 1400 raft collar 1 - PAC 1300 or 1400 raft floor 2 - Seat bottoms with swivels 3 - Seat backs 1 - Regular seat bottom...
  • Page 3 Step 1: Soft Pressure Inflation Items needed: 1 - PAC 1300 or 1400 raft collar 1 - PAC 1300 or 1400 raft floor To prepare to lace in the floor, inflate the raft collar and floor to soft pressure using a hand, foot or electric pump designed for inflatable boats.
  • Page 4 3. The bow of the raft collar has a built-in splash guard. The valve in the floor should be at the stern of the raft. 1 - PAC 1300 or 1400 raft collar 4. Place the floor in the cam strap cradle. Be sure the drain holes in the floor are facing up toward the bottom of the raft.
  • Page 5 Step 2 Continued: Raft Floor Installation Diagram After the floor is laced in you can inflate the raft to full pressure. Full pressure is reached when you can depress about 1/4” from the top surface of the tube. If you hear a humming sound in the floor valve, it’s the pressure release valve indicating the floor has reached maximum pressure (2.5 psi) and you can stop pumping.

  • Page 6: Step 3: Seat Assembly

    Step 3: Seat Assembly Items needed: 3 - Seat backs 2 - Seat bottoms with swivels 1 - Regular seat bottom Standard screwdriver 1. Attach the seat backs to the seat bottoms with the seat hinge pins. 2. Tighten the hinge pin screws with a flathead screwdriver. Step 4: Seat Mount Installation Items needed: 1 - Bow raised seat bar...

  • Page 7: Step 5: Main Frame Assembly

    2 - Stern seat bars 2 - Oar mounts 1 - Cross bar with seat mount 1. Assemble the main frame in the inflated PAC 1300 or 1400 as pictured above using 16 1 - Bow raised seat bar with seat mount U-bolts, 32 washer, and 32 Nylock nuts.
  • Page 8 Step 6: Bow Casting Platform Items needed: 1 - Thigh hook 1 - Bow thigh hook bar 1 - Bow casting platform 2 - Bow platform hanger bars 1 - NRS 1/2” ratchet wrench 1. Assemble the bow casting platform and thigh hook to the bow seat bar as pictured above 6 - U-Bolt using 6 U-bolts, 12 washers, and 12 Nylock nuts.
  • Page 9 PAC 1300 or 1400. Line up the holes, insert the 2.5” bolt, with a washer on both ends, and tighten. This fastens the bracket in front and to the side of the rower.
  • Page 10 Step 9: Seats to Frame Installation Items needed: 2 - Swivel seats 1 - Standard seat 8 - Carriage bolts 8 - Large washers 8 - 1/4” Nylock nuts 4 - Hex bolts 1. Attach the seats with swivels to the bow and stern seat mounts with the 1/4” wrench. The carriage bolts go down through the swivel and seat mount, and are locked into place with the large washers and 1/4”...
  • Page 11 2 - 4’ Cam straps 2 - 6’ Can straps 1. Strap the frame to side D-rings of the PAC 1300 or 1400 with 4, 3’ cam straps. 2. Strap the stern seat bars to the stern D-rings with 2, 4’ cam straps.

  • Page 12: Storage Tips

    Storage Tips • It is best to store your PAC 1300 or 1400 to soft pressure under a cover or car port that provides protection from environmental elements. This will help prevent weather and UV damage and will keep your AIREcells aligned.
  • Page 13 Leafield valve wrench - Used to tighten or loosen the inflation valve and pressure release valve of your boat. Repair needle and thread - Used to stitch tears in the PVC outer shell of the PAC 1300 or 1400 5/32” hex key - Used to tighten or loosen the bolts on the handles or zipper bridge.

  • Page 14: Warranty

    The Period of Coverage: The boat is covered from the original purchase date for a period of ten years. When original proof of purchase is not available or if a warranty registration was never submitted, the date of manufacturing will be used. Outcast Sporting Gear ~ 844-243-2473 ~ 2021 E Wilson Lane. Meridian, ID 83642 ~ info@outcastboats.com...

This manual is also suitable for:

Pac 1400
