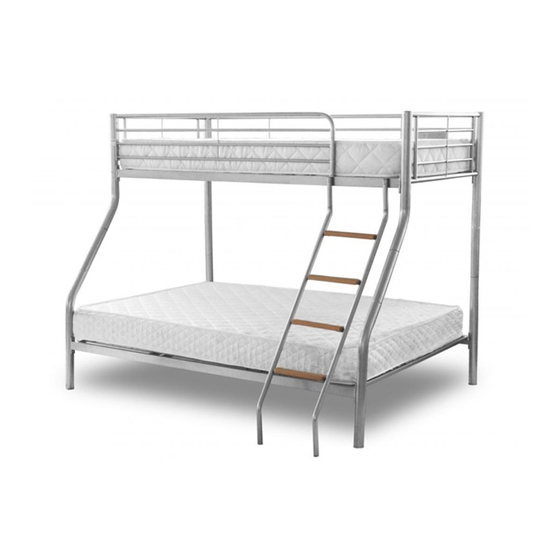

TANDI TRIPLE SLEEPER BUNK BED
ASSEMBLY INSTRUCTIONS
100KG
TOP BUNK
MAX WEIGHT
180KG
BOTTOM BUNK
MAX WEIGHT
SAFETY WARNING
-All bunk beds and high beds intended to be assembled by someone other that the
manufacturer or their representative shall contain assembly instructions a
list of the parts supplied and details of any tools required to assemble the bed.
-We recommend that you use the mattress at size: 1900x900x160mm.
-All assembly fastenings should always be tightened properly and that care should be
taken that no fittings are loose.
-Instructions regarding positioning and connection of the means of access.
-The ladder is not for playing on, only use to climb onto the top bunk.
-We recommend only one person on the upper bunk at one time.
-Warning:- The bunk bed or high bed should not be used if any structural part is
broken or missing.
-The top of the mattress shall be at least 160mm below the upper edge of the safety
barriers.
-Warning:- Children can become trapped between the bed and the wall to avoid risk of
serious injury the distance between the top safety barrier and the wall shall not
exceed 75mm or shall be more than 230mm.
-Warning: Bunk beds and high beds can present a serious risk of injury from
strangulation if not used correctly. Never attach or hang items to any part of the
bunk bed that are not designed to be used with the bed, for example, but not limited
to ropes, strings, cords, hooks, belts and bags.
-The ventilation of the room is necessary in order to keep the humidity low and to
prevent mold in and around the bed.
-The manufacturer's instruction must be always followed.
-EN 747-1&2:2012+A1:2015 TEST version.
BLACK
SEC/SH/10/22/RJ1
