SafeLine MX3+
MANUAL
88
Lift emergency telephone
MX3+ v1.06 EN
01.2018
52
www.safeline-group.com
11
13
Table of
Contents
Previous
Page
Next
Page
1
2
3
4
5
Advertisement
Table of Contents
Need help?
Do you have a question about the MX3+ and is the answer not in the manual?
Ask a question
Questions and answers
Subscribe to Our Youtube Channel
Related Manuals for Safeline MX3+
Intercom System Safeline MX3+ Quick Manual
(76 pages)
Telephone Safeline MX3+ Manual
Lift emergency telephone (24 pages)
GSM/GPRS Modules Safeline GL6 Manual
Line emulator (17 pages)
GSM/GPRS Modules Safeline GL2 Installation Manual
(8 pages)
GSM/GPRS Modules Safeline LYRA Manual
(44 pages)
Summary of Contents for Safeline MX3+
Page 1

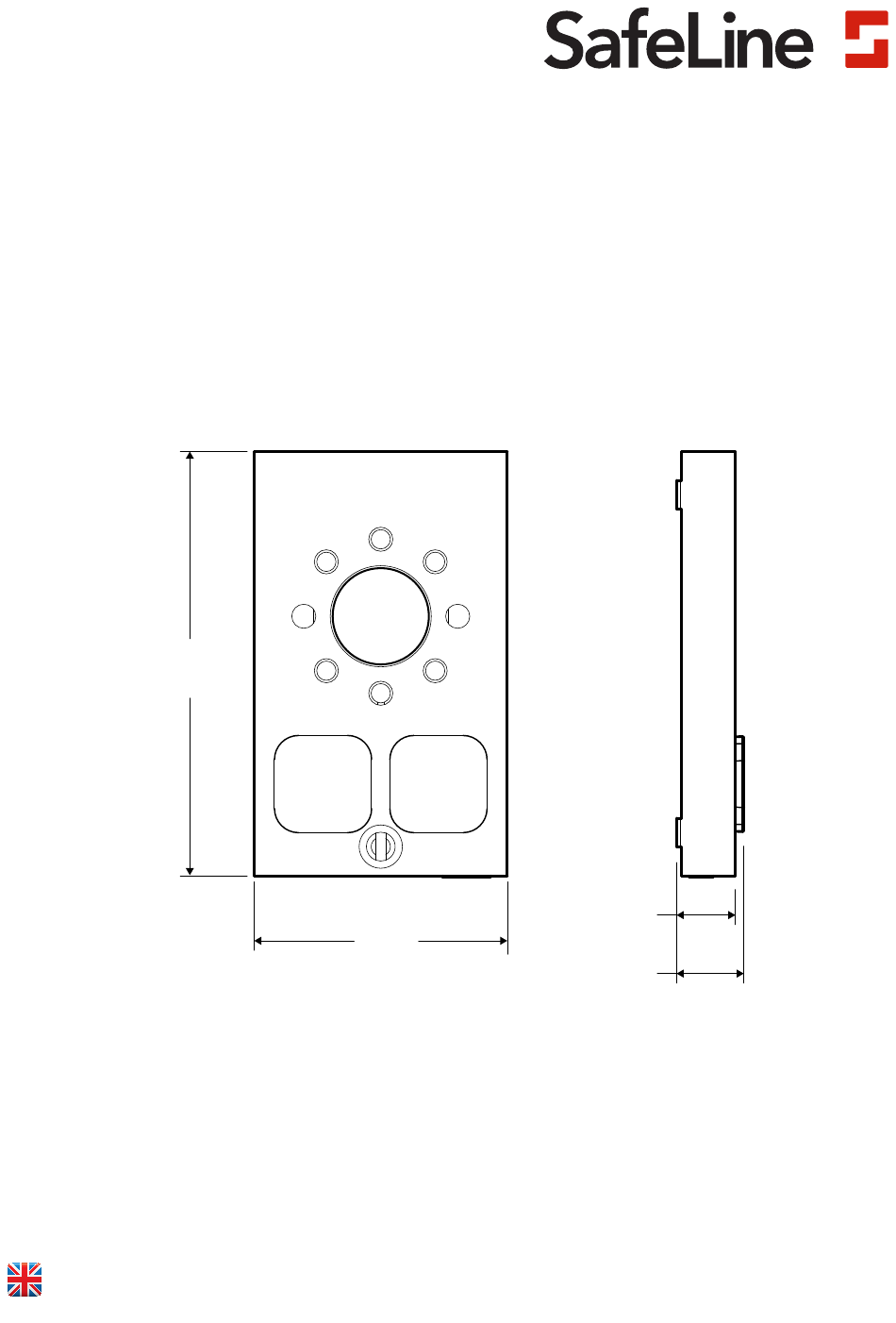

SafeLine MX3+ MANUAL Lift emergency telephone MX3+ v1.06 EN www.safeline-group.com 01.2018...
Page 2
Surface mounted with button: 155 x 90 x 31 mm Car Operating Panel: 88 x 53 x 14 mm IP class: IP 43 Bluetooth: Bluetooth 4.0 BLE 2,4 GHz MX3+ v1.06 EN © 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Page 3: Table Of Contents
Wiring diagram, when updating to MX3+ CONFIGURATION CONNECT Outputs Configuration interfaces Configuration method Configuration examples Parameter list OPERATING Led indication Testing Emergency calling process SERVICE Troubleshooting MX3+ v1.06 EN © 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Page 4: General Information
(WEEE = Waste of Electrical & Electronic Equipment). MX3+ v1.06 EN © 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Page 5: Installation
It is also possible to adjust the volume in the SafeLine CONNECT app (available on both Google Play and Apple App Store). 4. Output for additional voice unit 5. Keyboard MX3+ v1.06 EN © 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Page 6: Measurements And Components List
4 x Ø6 12,1 52,5 13,6 Flush mount SafeLine MX3+ with pictograms and emergency alarm button Article number: *SLMX3-REC-PICB 4 x Ø6 52,6 27,5 MX3+ v1.06 EN © 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Page 7
2 x Ø4,5 136,2 102,2 43,6 16,2 77,6 Surface mount SafeLine MX3+ with pictograms and emergency alarm button Article number: *SLMX3-SM-PICB 2 x Ø4 30,7 MX3+ v1.06 EN © 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Page 8
Installation MEASUREMENTS AND COMPONENTS LIST SafeLine MX3+ COP Article number: *SLMX3-COP SafeLine MX3+ COP 3mm ledpictogram Article number: *SLMX3-COP2 MX3+ v1.06 EN © 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Page 9: Wiring Diagram
In order to access the unit remotely, it needs to be assigned a unit number. Please refere to the Parameter list (*82*) for more information. MX3+ v1.06 EN © 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Page 10: Wiring Diagram, Output 1 And 2
*88*22# *88*20# Requires that the output is confi gured for the corresponding function. Please refere to the Parameter list (*88*) for more information. MX3+ v1.06 EN © 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Page 11: Wiring Diagram, External Button
Installation WIRING DIAGRAM, EXTERNAL BUTTON Use CABLE13 to connect SafeLine MX3+ with external accessories. CABLE13 MX3+ MX3+ v1.06 EN © 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Page 12: Wiring Diagram, Hl1/Hl2
WIRING DIAGRAM, HL1/HL2 Use CABLE15 to connect SafeLine MX3+ with a hearing loop. 12-15 VDC BLACK 0 VDC SPEAKER B MX3+ SPEAKER A HL1/HL2 CABLE15 MX3+ v1.06 EN © 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Page 13: Wiring Diagram, When Updating To Mx3
Additional input BLACK (fi lter) Alarm button Telephone BLUE line in BROWN Unconnected cables must be isolated in order to avoid short circuiting. MX3+ v1.06 EN © 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Page 14: Configuration
(or tablet) with the free app installed. No computer will be needed to make any confi guration or settings changes. App Store, iPhone Google play, Android MX3+ v1.06 EN © 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Page 15: Outputs
The output is deactivated at the following events: - Distress input deactivated before set time. - Active alarm ended. - Reset button (#) is pressed. MX3+ v1.06 EN © 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Page 16
The configuration is performed via SafeLine Pro or with the configuration code *92*X#, where X specifies the time: The function is off. 30 seconds. 60 seconds (default). 90 seconds. MX3+ v1.06 EN © 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Page 17: Configuration Interfaces
The unit has to be connected to a power source before the confi guration begins! SafeLine Pro can be downloaded on our website: http://www.safeline-group.com/en/downloads/ SafeLine Pro 4.42 or later is required. MX3+ v1.06 EN © 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Page 18: Configuration Method
One long beep. Invalid input. Last code Call disconnected or end of confi guration. has to be re-entered. MX3+ will restart with the new settings. MX3+ v1.06 EN © 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Page 19: Configuration Examples
If at any time you need to start over, use the factory reset command *99*1#. Please refer to the full confi guration setup in the “Parameter list” as these are merely examples. MX3+ v1.06 EN © 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Page 20: Parameter List
Call type LMS number *30* LMS (Lift Monitoring System) call type: 0 = P100 3 = CPC (Only battery alarm) MX3+ v1.06 EN © 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Page 21
Alarm type LMS *45* - - # LMS (Lift Monitoring System) (Battery alarm) Normally 17 Alarm type Test alarm *46* - - # Normally 26 MX3+ v1.06 EN © 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Page 22
#. *61* Options for the recorded *62* 0 = Disable recorded message. message from Lift Car 1 = Enables recorded message. *62* MX3+ v1.06 EN © 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Page 23
Phone connects directly to a fi xed receipient without phone number 0 = Standard phone line (default) 1 = Hotline Volume control *76* Adjustabel volume, between 1-6. (Default = 4) MX3+ v1.06 EN © 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Page 24
Unit number [1-9] is used when the units are sharing the same phone line. When the unit number is assigned, the specified unit is accessible for configuration. MX3+ v1.06 EN © 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Page 25
*88*11# - Output 1, Activate with DTMF 8 *88*23# - Output 2, Alarm Alarm button type *89* 0 = Normally-open contact, N/O (Default) 1 = Normally-closed contact, N/C MX3+ v1.06 EN © 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Page 26
*21*3#, *22*3#, *27*03#, *76*4#, *80*1#, *84*1#, *88*1# 4 = Default VOICE (The following codes will be set): *21*1#, *22*1#, *27*03#, **76*4#, 80*1#, *84*1#, *88*1# MX3+ v1.06 EN © 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Page 27: Operating
Activated alarm. Remains lit until reset. Strictly single (*78*2#) As strictly EN81-28 except that the LEDs will not be lit simultaneously, but one at a time. MX3+ v1.06 EN © 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Page 28: Testing
5 sec? Check telephone line. Press on keypad: No connection. Phone line dial tone? Check PSTN-line, Dial out on keypad. Go to Troubleshoot tables. MX3+ v1.06 EN © 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Page 29: Emergency Calling Process
To restart the dialling process, another push of the alarm button is needed. Answer? Calling 4th phone number. Answer? Alarm operator made connection. MX3+ v1.06 EN © 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Page 30: Service
Change the antenna position when a call is connected until you find the optimal antenna position. Do not install the antenna near the unit or close to the cabelling. MX3+ v1.06 EN © 2018 SafeLine and all the SafeLine products and accessories are copyrighted by law.
Page 32
SafeLine Deutschland GmbH Kurzgewannstraße 3 · D-68526 Ladenburg · Germany Tel.: +49 (0) 6203 - 840 60 03 · sld@safeline.eu SafeLine Elevator Parts UK 3 Evegate Park Barn · Station Road · Smeeth · Ashford · Kent · TN25 6SX · United Kingdom Tel.: +44 (0)1303 813414 ·...
