  • Page 1 Manual Innovation brought to you from Tyresö Sweden Lift Emergency Telephone www.safeline-group.com © 2018 SafeLine and all the SafeLine products and 11.2018 GL6+ v.2.01 EN accessories are copyrighted by law.
  • Page 2 - Supports 2G, 3G and 4G - Requires SW 1.20 or later SIM card size: Micro SIM Communication: GSM-module, dual-band 900/1800 MHz Operating temperature: +5 - 40C Air humidity: 30 - 90 % RH Software version: SW 1.10 or later Introduction GL6+ v.2.01 EN...

  • Page 3: General Information

    - This quality product is dedicated for the lift industry. It has been designed and manufactured to be used for its specifi ed purpose only. If it is to be used for any other purpose, SafeLine must be contacted in advance.

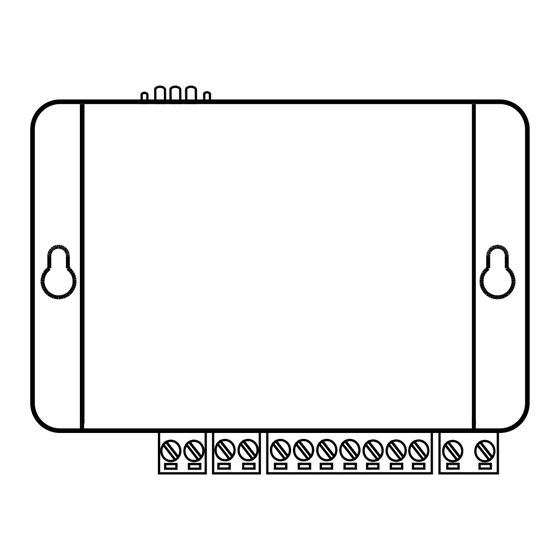

  • Page 4: Introduction And Overview

    • Telephone line for up to nine SafeLine units. • Connect any analogue telephone. • Integrated 12V UPS for up to four SafeLine MX3/MX2/SL2 or SL1. • Automatic battery condition check every 7 days. • 1 input for monitoring an event with the possibility to send an SMS alert.
  • Page 5 LMS to send SMS messages to up to 3 different 2. System failure numbers. Relay is active when GL6 has GSM network coverage. Relay deactivates when GSM network is missing for more than 15 seconds or when mains power has been off for more than 15 minutes.
  • Page 6 12 VDC output and intercom indication output (fig.4). Use of intercom When an intercom call is generated the GL6 rings up to 16 times, waiting for a phone that is connected to the GL6 to answer. LED3 indicates when a ringing call expires, and when the call time counter is activated.

  • Page 7: Using The Sim Card

    Using the The GL6 can only recognize the PIN code if the code is set to “1234”, “0000”, “1111” or if it is deactivated. If set to anything else, the GL6 SIM card cannot use the SIM card. Disconnect both mains and If the PIN code is set to “1234”, “0000”or deactivated, the SIM card...

  • Page 8: Led Indication

    GSM field strength will be displayed for 5 seconds. GSM SIGNAL STRENGTH 1 2 3 = 100 % = 85 % = 70 % = 55 % = 30 %* = 15 % = 0 % * Minimum signal strength for using GSM Interface Configuration GL6+ v.2.01 EN...
  • Page 9 SafeLine Pro SafeLine Pro 4.45 or later is required. Maximum call time for intercom is 5 minutes (not adjustable). 1. Call settings • Max call time Here you can choose the maximun call time between 1-99 minutes. 0 = Unlimited call time.
  • Page 10 • System failure: • The output relay is activated when the GL6 has a GSM network. • The output relay is deactivated when the GSM network has been lost for more than 15 seconds, or when the power has been off for more than 15 minutes.
  • Page 11 • SMS destination: you can enter up to 3 mobile phone numbers. • Message: the limit for the message text is 128 characters maximum. 5. Miscellaneous Resets all input fields to their default value. Puts SafeLine Pro in basic mode execution, empties phone fields etc. Configuration GL6+ v.2.01 EN...
  • Page 12 • Hardware ver: here you can find information about the GL6 hardware version. • Serial number: here you can find the serial number of the GL6. • IMEI number (International Mobile Equipment Identity): the IMEI is used by the GSM and UMTS mobile phones. The IMEI...
  • Page 13 When the connected equipment is using the modem function, the GL6 goes into “modem mode”. When an incoming call is detected, the GL6 automatically identifies if it is a voice call or a modem call. With a vocie call, the GL6 generates a dial tone and waits for the GL6 wired phone to answer.

  • Page 14: Troubleshooting

    Call cannot be connected. Error message from telephone operator. • To make a call, area code must always be used. Interference/ • Bear in mind that the wiring between GL6 and the lift telephone/ poor sound quality phone is basically a “standard” PSTN-line and can therefore not be placed within the lift travelling cable together with high voltage.

  • Page 15: Eu Declaration Of Conformity

    EN 301 908-1v11.1.1 /-2v11.1.1 /-13v11.1.1 Firmware used during assessment GL865-Dual V3: 16.00.152 / 16.01.150 / 16.01.153 LE910-EU V2: 20.00.402 SafeLine GL6: 1.00 Tyresö, 2017-04-07 Lars Gustafsson, Technical Manager, R&D , SafeLine Group Antennvägen 10, 13548 Tyresö, Sweden +46 (0)8-447 79 32, www.safeline-group.com...
  • Page 16 Support: +32 (0)4 85 89 08 95 SafeLine Deutschland GmbH Kurzgewannstraße 3 · D-68526 Ladenburg · Germany Tel.: +49 (0) 6203 - 840 60 03 · sld@safeline.eu SafeLine Group UK Unit 47 · Acorn Industrial Park · Crayford · Kent · DA1 4AL · United Kingdom info@safeline-group.uk...
