Summary of Contents for Safeline GL2

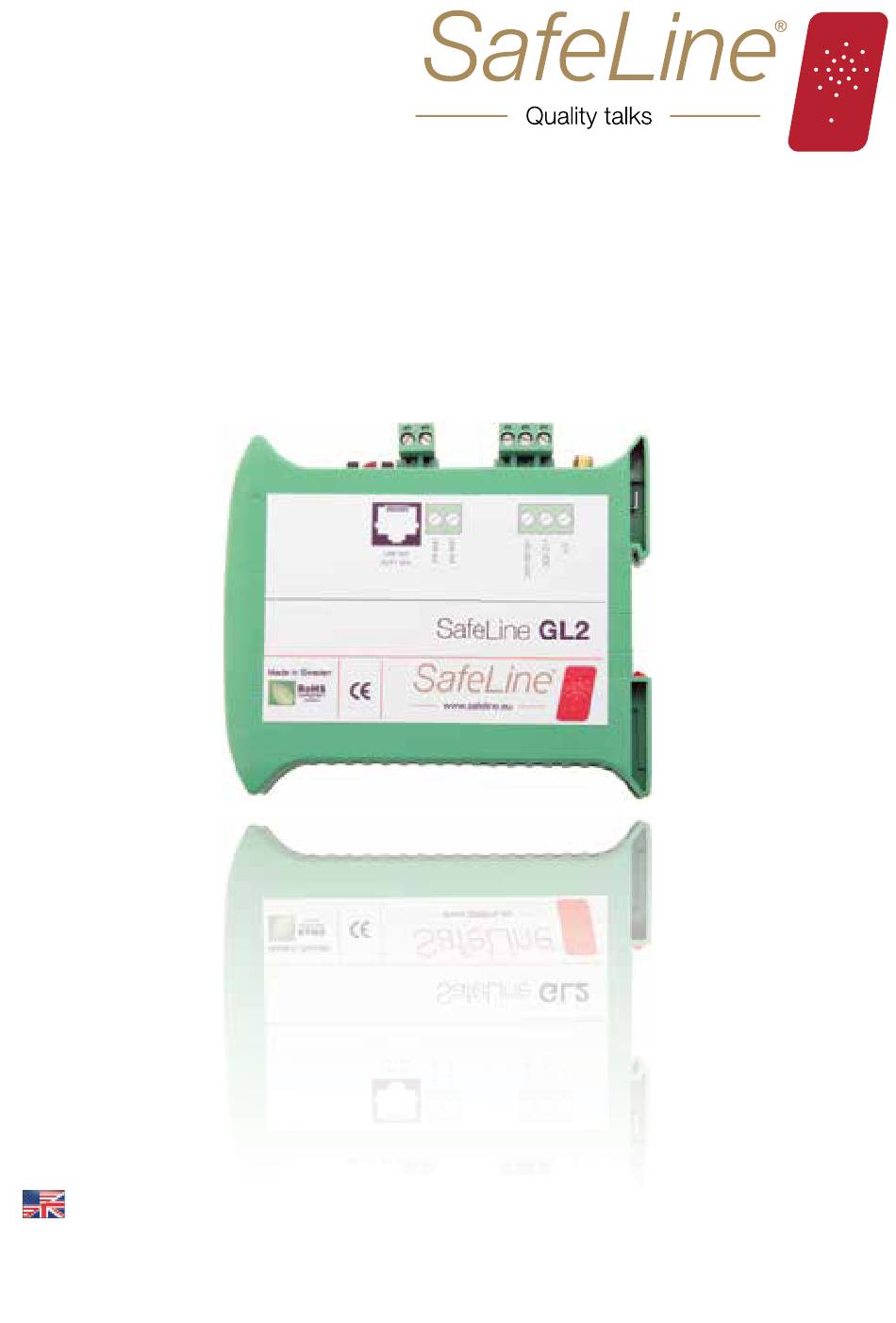

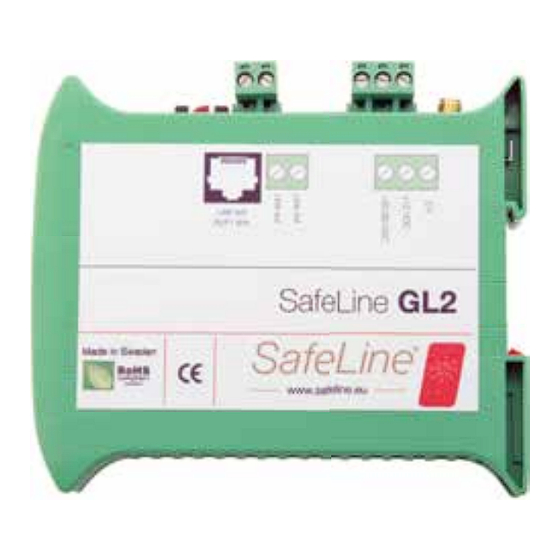

- Page 1 SafeLine Installation manual A GSM alternative for all of our lift telephones. ENGLISH V. 2.61 07.2012...
- Page 2 SafeLine Installation manual Technical daTa GSM-module Quad band 900/1800, 850/1900 MHz. communication: antenna connector type current consumption: At 12V max. 0.25A momentarily when connecting a call, at rest: 0,05 A. 120 x 105 x 30mm Size hxWxd: Unit is beeing delivered with a 2,5m antenna cable, SMa contact (female)
-
Page 3: Table Of Contents
Table of contents Installation Components Using the SIM-card Connecting the unit Menu LED indication RX Audio level Service Troubleshooting Interference/Poor sound quality ENGLISH V. 2.61 © 2012 SafeLine and all the SafeLine products and accessories are copyrighted by law. -
Page 4: Connecting The Unit
To avoid GSM interference: Place the GL2, the telephone(and stations) and the GSM antenna more than 1,5 m apart. >> 1,5m >> 1,5m >> 1,5m ENGLISH V. 2.61 © 2012 SafeLine and all the SafeLine products and accessories are copyrighted by law. -
Page 5: Components 4 Using The Sim-Card
3g will not function. The GL2 can only recognize the PIN code if the code is set to “0000”, “1234”, “1111” . In some cases the code can also be deactivated. If the PIN code is set to “0000” or if it is deactivated the SIM card can be moved from the GL2 to any of SafeLine GSM products. -
Page 6: Menu
+75% or +100% may only be used in uniqe installations where it’s difficult to get the telephone to switch from the receiving part. ENGLISH V. 2.61 © 2012 SafeLine and all the SafeLine products and accessories are copyrighted by law. -
Page 7: Service
• To make a call, area code must always be used. inTerference / poor SoUnd qUaliTy. • Bear in mind that the wiring between GL2 and the lift telephone/phone is basically a “standard” PSTN-line and can therefore not be placed in the lifts travelling cable together with high voltage. - Page 8 BELGIUM Tel: +46(0)84477932 Tel: +32(0)2 762 98 10 Fax: +46(0)84477931 Fax: +32(0)2 762 97 10 E-mail: order@safeline.eu E-mail: order@safeline.eu SafeLine-Deutschland SafeLine Elevator Parts UK Westfalenstraße 22a 3 Evegate Park Barn D-51688 Wipperfürth Smeeth DEUTSCHLAND Ashford Kent Tel: +49 (0) 2267 - 8 67 96 63 TN25 6SX E-mail: order@safeline.eu...
