S

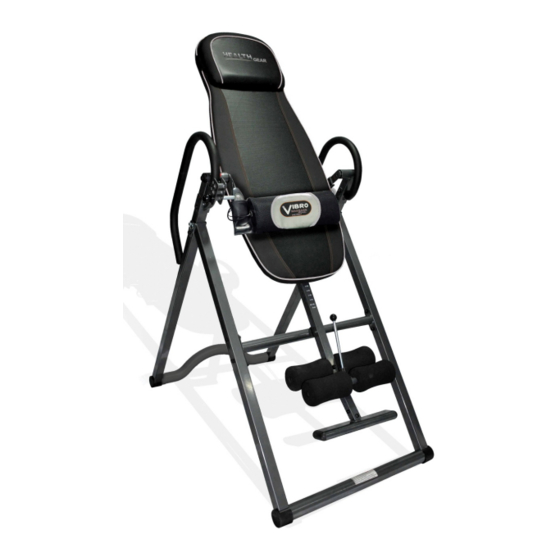

Deluxe Heat & Massage Inversion Table
Model ITM 4800-A
Ver 101514
CAUTION:
WARNING: DO NOT USE THIS
INVERSION TABLE WITHOUT A
PHYSICIAN'S APPROVAL
It is recommended that Inverting
upside down be supervised.
Do not let children use the
inversion table unsupervised.
Read all instructions carefully
before using.
Tighten all bolts before using
equipment.
Leave adequate space to
properly invert.
Questions/ Comments
PLEASE DO NOT CONTACT THE
STORE FOR PARTS OR
SERVICE QUESTIONS
Extreme Products Group is committed to
providing the very best of quality and
customer satisfaction for all of the
products we distribute. If for any reason ,
you are dissatisfied with the product you
have purchased or need assistance in any
way, please do not hesitate to contact our
knowledgeable support staff as follows:
Phone:623-888-6379
Email: service@extremeproductsgroup.com
Web: www.extremeproductsgroup.com
Photo may differ from actual product
1
Mon.-Fri 9:00 am – 5:00 pm Phoenix Time
Advertisement
Table of Contents
Related Manuals for Health GEAR Deluxe ITM 4800-A
Summary of Contents for Health GEAR Deluxe ITM 4800-A
- Page 1 Deluxe Heat & Massage Inversion Table Model ITM 4800-A Ver 101514 CAUTION: WARNING: DO NOT USE THIS INVERSION TABLE WITHOUT A PHYSICIAN’S APPROVAL It is recommended that Inverting upside down be supervised. Do not let children use the inversion table unsupervised. Read all instructions carefully before using.
- Page 2 BEFORE BEGINNING ASSEMBLY… Take a few moments to familiarize yourself with the specific parts and hardware included with your product. Make sure all the parts and hardware are included in the carton and examine them for any damage that may have occurred in transport. Some parts may be pre-assembled and pre-installed. CAUTION WARNING: BEFORE STARTING ANY INVERSION PROGRAM, CONSULT YOUR PHYSICIAN.
-
Page 3: Parts Listing
Parts Listing Part# Description QTY Part# Description Base-frame-FRONT Ball Pin- Φ8*64 Base-frame-REAR Ball Pin-ø8 Backrest Support Tube Spring Body Height Adjustment Tube Incline Adjustment Bolt Adjustable Leg Hold Tube Height Adjustment Knob Foot Rest Plate Leg Tube Adjustment Knob Leg Tube-REAR Square End Cap Handlebar-RIGHT Round End Cap-for handlebars... -
Page 4: Exploded View
Exploded View * For Any Parts Required, DO NOT CALL TECHNICAL SUPPORT. Please visit our web site: www.extremeproductsgroup.com * For Any Parts Required, DO NOT CALL TECHNICAL SUPPORT. Please visit our web site: www.extremeproductsgroup.com... -
Page 5: Step 1- Unfold Frame
Step 1- Unfold Frame Carefully remove Base Frame from carton, and unfold. Insert safety pin(26) into right side of frame Note Front, Rear, Right and Left Sides for further assembly Insert safety pin(26) * For Any Parts Required, DO NOT CALL TECHNICAL SUPPORT. Please visit our web site: www.extremeproductsgroup.com... -
Page 6: Step 2- Handlebar Assembly
Step 2- Handlebar Assembly STEP 2 ( Cont) Attach the Handlebar Right (08) to the Base frame Rear(01) using 2 Bolts (13), 2 Washers (20), and 2 Nuts (22). Use Bolt (11) and Flat Washer (20) to fix the Base frame Rear(01) .Repeat for Handlebar Left (02) except there will not be a part 11 or 20 for this side. - Page 7 Step 3- Backrest Assembly to Base Frame Note: Rotational Side Brackets must face DOWN toward floor Lift Entire Bed Assembly UP into Rotational Brackets And Secure with Bolts, Nuts, and Washers STEP 3 Connecting Backrest Pad & Assembly to Frame Attach the Completed Backrest Pad Assembly to the Base frame Unit using Bolts (15), Flat Washers (20) and Lock Nuts (22) as shown NOTE: TIGHTEN ALL BOLTS AT THIS TIME...
- Page 8 STEP 4 -Body Height Adjustment Tube and Rollers A- Install Foot Rest Plate (6) into Height Adjustment Tube (4) using Hexagonal Bolts (17), & Flat Washers (20) B- Lift out front roller tube (31) from Height Adjustment Selector Tube (5) and position as shown.
-
Page 9: Step 5 -Final Assembly
STEP 5 -Final Assembly Slide Completed Height Adjustment Tube and Foot Rest Assembly (4) into Backrest Support Tube (3) and lock into place using Height Adjustment Knob (30) and Safety Pin (27) Note: This product is designed with a Maximum User Weight of 300 LBS. - Page 10 Heat / Massage Pad and Head Pad Assembly to Backrest Pad Step 6 Connecting Head Pad and Heat/Massage Lumbar Pad Attach the Heat / Massage Lumbar Pad(48)and the Head Pad(45) to Backrest Pad(47) in Desired Position using Velcro. Controller(46) can be stored in Right Side Pocket of Backrest Pad(44) for easy access.
- Page 11 PRECAUTIONS WARNING: 300 LB WEIGHT CAPACITY To reduce the risk of serious injury, read all important precautions instructions and warnings in this manual before using the Inversion System. Extreme Products Group assumes no responsibility for personal injury or property damage sustained by or through the use of the Inversion System.
-
Page 12: Controller Instruction
Controller Instruction * For Any Parts Required, DO NOT CALL TECHNICAL SUPPORT. Please visit our web site: www.extremeproductsgroup.com... -
Page 13: Usage Guidelines
USAGE GUIDELINES INVERSION SELECTOR PIN Familiarize yourself with the Inversion Selector Pin located on the Right Side of the Inversion Table. The positioning of the pin will determine the degree of Inversion that you are comfortable with. The 3 selections are: 20- Slight Inversion 40-Moderate Inversion 60- Enhanced Inversion... - Page 14 USAGE GUIDELINES- Securing Feet and Ankles WARNING: ALWAYS WEAR ATHLETIC SHOES WITH LACES TIGHT TO HELP SECURE YOUR FEET IN THE INVERSION SYSTEM, AND FOR FOOT PROTECTION WHILE EXERCISING. ALWAYS MAKE SURE THAT THE ANKLE LOCK IS SECURED SNUGLY AGAINST YOUR ANKLES AND THAT THE LONG KNOB IS FULLY TIGHTENED BEFORE YOU USE THE INVERSION SYSTEM Step 1- Expand the front rollers by pulling up on the...
- Page 15 USAGE GUIDELINES Finding the Proper Height and Weight Adjustment With head flat on back pad, slowly raise one arm up toward the ceiling. If the bed starts to invert backward, the height adjustment should be correct. If the bed does not start to invert, adjust the center slider arm upward one position at a time, until the bed starts to invert backward.
- Page 16 Health Gear is a licensed Trademark and Distributed By: Extreme Products Group 6635 W. Happy Valley Rd Suite A-104, #213 Phoenix, AZ 85310 Technical Support: 623-888-6379 Fax: 623-434-9100 Email: service@extremeproductsgroup.com For All parts requests, please do not call our Technical service number but visit our web site at www.extremeproductsgroup.com...
