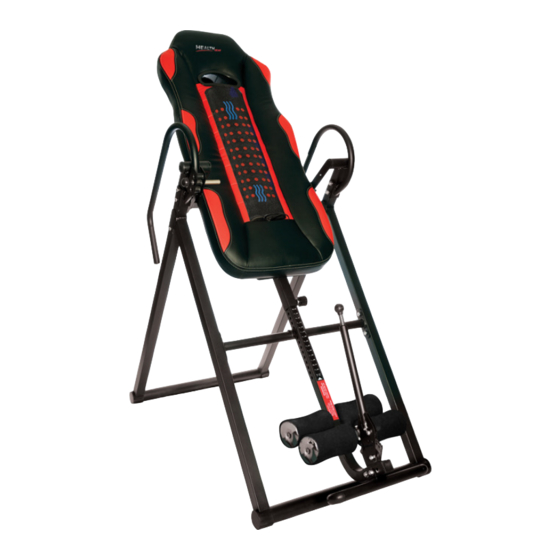

Health GEAR ITM 6000 Manual

Deluxe heat & massage inversion table
Hide thumbs
Table of Contents

Advertisement

Quick Links

S
Deluxe Heat & Massage Inversion Table
Model ITM 6000
012315
CAUTION:
WARNING: DO NOT USE THIS
INVERSION TABLE WITHOUT A
PHYSICIAN'S APPROVAL
It is recommended that Inverting
upside down be supervised.
Keep children away
Read all instructions carefully
before using.
Tighten all bolts before using
equipment.
Leave adequate space to
properly invert.
Questions/ Comments
PLEASE DO NOT CONTACT THE
STORE FOR PARTS OR
SERVICE QUESTIONS
Extreme Products Group is committed to
providing the very best of quality and
customer satisfaction for all of the products
we distribute. If for any reason , you are
dissatisfied with the product you have
purchased or need assistance in any way,
please do not hesitate to contact our
knowledgeable support staff as follows:
Phone:623-888-6379
Mon.-Fri 9:00 am – 5:00 pm Phoenix Time
Photo may differ from actual product
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ITM 6000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Health GEAR ITM 6000

Summary of Contents for Health GEAR ITM 6000

  • Page 1 Deluxe Heat & Massage Inversion Table Model ITM 6000 012315 CAUTION: WARNING: DO NOT USE THIS INVERSION TABLE WITHOUT A PHYSICIAN’S APPROVAL It is recommended that Inverting upside down be supervised. Keep children away Read all instructions carefully before using.
  • Page 2 BEFORE BEGINNING ASSEMBLY… Take a few moments to familiarize yourself with the specific parts and hardware included with your product. Make sure all the parts and hardware are included in the carton and examine them for any damage that may have occurred in transport. Some parts may be pre-assembled and pre-installed. CAUTION WARNING: BEFORE STARTING ANY INVERSION PROGRAM, CONSULT YOUR PHYSICIAN.

  • Page 3: Parts Listing

    Parts Listing Part# Description QTY Part# Description Base-frame-FRONT Ball Pin-ø8 Base-frame-REAR Incline Adjustment Bolt Backrest Support Tube Height Adjustment Knob Body Height Adjustment Tube Square End Cap Adjustable Leg Hold Tube Round End Cap-for handlebars Foot Rest Plate Round End Caps Leg Tube Adjustment Knob Plastic Spacer Handlebar-RIGHT...

  • Page 4: Exploded View

    Exploded View * For Any Parts Required, DO NOT CALL TECHNICAL SUPPORT. * For Any Parts Required, DO NOT CALL TECHNICAL SUPPORT. Please visit our web site: www.extremeproductsgroup.com...

  • Page 5: Step 1- Unfold Frame

    Step 1- Unfold Frame To view an assembly video of this product, please visit our web site at: www.extremeproductsgroup.com Step 1-Carefully remove Base Frame from carton, and unfold. Insert safety pin(25) into right side of frame Note Front, Rear, Right and Left Sides for further assembly Insert safety pin() Right...

  • Page 6: Step 2- Handlebar Assembly

    Step 2- Handlebar Assembly Reinforcement Bolt-11 Note: Right Handlebar has Built in Bracket Right Left Rear Front STEP 2 Attach the Right Handlebar (08) to the Right Side Base Frame using 2 Bolts (13), 2 Washers (20), and 2 Nuts (22). Use Bolt (11) and Flat Washer (20) to reinforce the Incline Adjustment Bracket to the Base Frame.
  • Page 7 Step 3- Backrest Assembly to Base Frame Note: Rotational Side Brackets must face DOWN toward floor Lift Entire Bed Assembly UP into Rotational Brackets And Secure with Bolts, Nuts, and Washers STEP 3 Connecting Backrest Pad & Assembly to Frame Attach the Completed Backrest Pad Assembly to the Base frame Unit using Bolts (15), Flat Washers (20) and Lock Nuts (22) as shown.
  • Page 8 STEP 4 -Body Height Adjustment Tube and Rollers A- Install Foot Rest Plate (06) onto Height Adjustment Tube (04) using Hexagonal Bolts (17), Flat Washers (20) and Lock Nuts (22). B- Insert Rear Foam Roller Tube (05) through Height Adjustment Tube (04) and secure with Bolt (16), Washer (20) and nut (22).

  • Page 9: Step 5 -Final Assembly

    STEP 5 -Final Assembly NOTE: It is very important that the side rotational brackets be pointing down in this position otherwise the inversion table will not function properly and may cause injury Slide Completed Height Adjustment Tube and Foot Rest Assembly into Backrest Support Tube and lock into place Using Height Adjustment Knob Use Knob Bolt (28) to additional secure Height Adjustment...
  • Page 10 Step 6-Heat/Massage Pad Backrest Pad Upper Hole Note: Controller Pocket towards bottom Lower Hole Step 6 Connecting Massage/Heat Pad to Backrest Pad Attach the Heat/Massage Pad (21) to Backrest Pad(41) using 2 straps though upper hole and 2 lower straps through lower hole. Once straps are connected, tighten strap to secure heat /massage pad NOTE: Controller(43) can be stored in Velcro Pocket of Backrest Pad ( at Bottom) for easy access.
  • Page 11 PRECAUTIONS WARNING: 300 LB WEIGHT CAPACITY To reduce the risk of serious injury, read all important precautions instructions and warnings in this manual before using the Inversion System. Extreme Products Group assumes no responsibility for personal injury or property damage sustained by or through the use of the Inversion System.

  • Page 12: Controller Instruction

    Controller Instruction Connect the product with power source by 12V adaptor and the indicator light of "POWER" will blink into standby. Press the "POWER" button to start the massage function, the power indicator light will Press "HEAT" button to stop blinking, the massage start the heat function.

  • Page 13: Usage Guidelines

    USAGE GUIDELINES INVERSION SELECTOR PIN Familiarize yourself with the Inversion Selector Pin located on the Right Side of the Inversion Table. The positioning of the pin will determine the degree of Inversion that you are comfortable with. The 3 selections are: 20- Slight Inversion 40-Moderate Inversion 60- Enhanced Inversion...
  • Page 14 USAGE GUIDELINES- Securing Feet and Ankles WARNING: ALWAYS WEAR ATHLETIC SHOES WITH LACES TIGHT TO HELP SECURE YOUR FEET IN THE INVERSION SYSTEM, AND FOR FOOT PROTECTION WHILE EXERCISING. ALWAYS MAKE SURE THAT THE ANKLE LOCK IS SECURED SNUGLY AGAINST YOUR ANKLES AND THAT THE LONG KNOB IS FULLY TIGHTENED BEFORE YOU USE THE INVERSION SYSTEM Step 1- Expand the front rollers by pulling up on the...
  • Page 15 USAGE GUIDELINES Finding the Proper Height and Weight Adjustment With head flat on back pad, slowly raise one arm up toward the ceiling. If the bed starts to invert backward, the height adjustment should be correct. If the bed does not start to invert, adjust the center slider arm upward one position at a time, until the bed starts to invert backward.
  • Page 16 Health Gear is a licensed Trademark and Distributed By: Extreme Products Group 6635 W. Happy Valley Rd Suite A-104, #213 Phoenix, AZ 85310 Technical Support: 623-888-6379 Fax: 623-434-9100 For All parts requests, please do not call our Technical service number but visit our web site.
