Installation Manual - TVH.4501
3/4" Thermostatic Valve With 3-Outputs
Ver. 2.54
www.isenbergfaucets.com
Use With Trims Ending in *4501
BEFORE YOU BEGIN
•
You must observe all local plumbing laws and codes.
•
Do not install this valve if it does not meet local plumbing codes.
•
Shut off the main water supply.
Advertisement
Table of Contents
Related Manuals for Isenberg TVH.4501
Summary of Contents for Isenberg TVH.4501

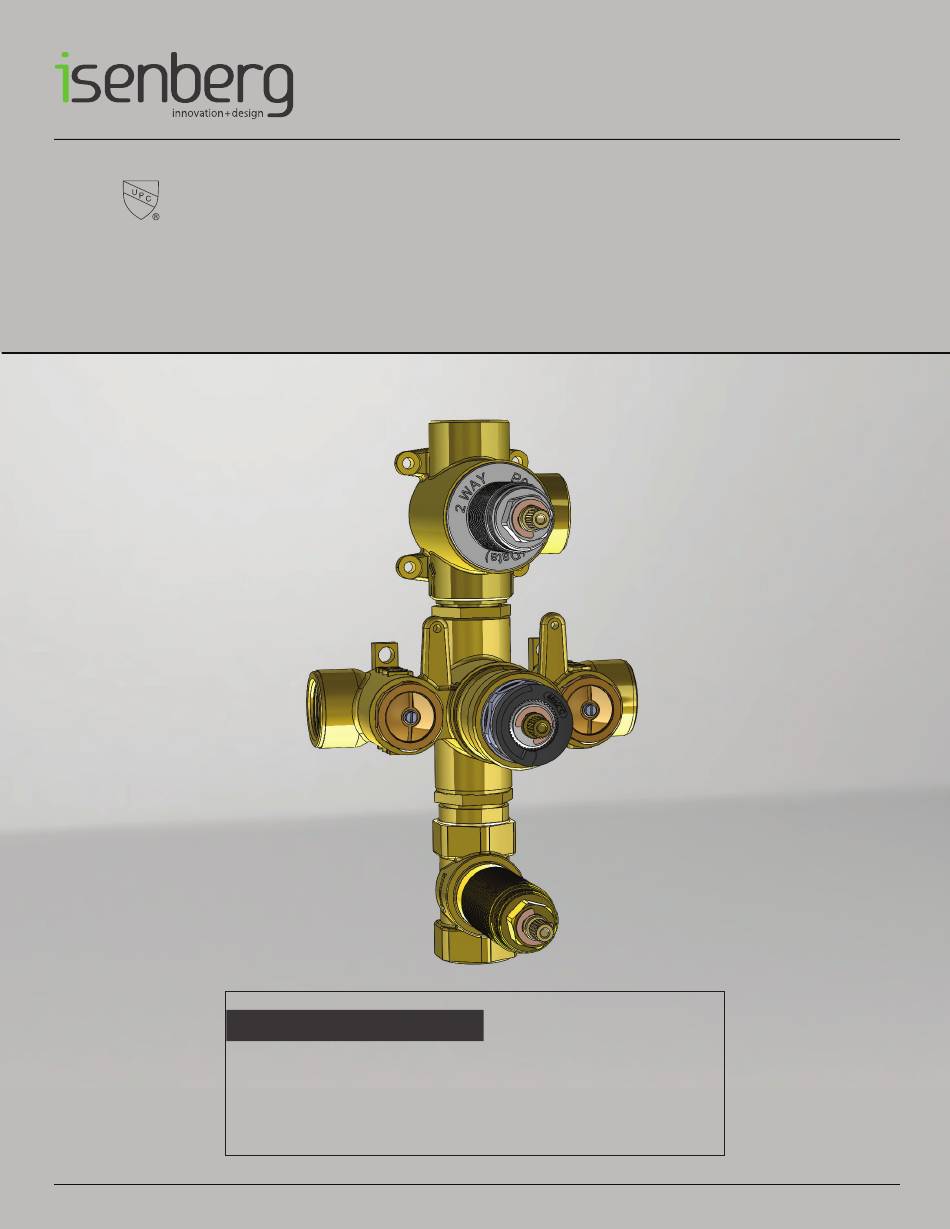

- Page 1 Installation Manual - TVH.4501 3/4” Thermostatic Valve With 3-Outputs Use With Trims Ending in *4501 BEFORE YOU BEGIN • You must observe all local plumbing laws and codes. • Do not install this valve if it does not meet local plumbing codes. • Shut off the main water supply. Ver. 2.54 www.isenbergfaucets.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS • Operating Specifications . . . . . . . 1 • Valve Installation And Tolerance • Cut-Out Dimensions . . . . . . . • Rough In Specification . . . . . . • Connecting The Supply & Output Lines . . . . . ... -
Page 3: Operating Specifications
ONLY! If water pressure is greater than 80 PSI install a pressure reducing valve (PRV) This valve meets or exceeds ANSI A112.18.1 and ASSE 1016 This valve is certified by IAPMO CUT OUT DIMENSIONS Isenbergʼs TVH Series valves comes with a black pre-attached mud-guard. This mud-guard is not to be removed or discarded. Its purpose is to guide the installation professional on the proper cut-out dimensions of the drywall. Wall Cut Out Dimensions From Center Point of Valve: TVH.4501 X = 224mm / 8.81” Y = 113mm / 4.44” www.isenbergfaucets.com... -
Page 4: Rough In Specification
ROUGH IN SPECIFICATION Maximum = 87.5mm [3,44"] Minimum = 70.5mm [2,77"] The distance between back of the valve to the nished tile surface should be between 2.77” and 3.44” inches. Finished tile should fall between Min & Max. If valve is installed too deep ... -
Page 5: Connecting The Supply & Output Lines
CONNECTING THE SUPPLY & OUTPUT LINES Fix Valve on wooden plank Level Valve Attach Hot/Cold Lines Attach Output Lines www.isenbergfaucets.com... -
Page 6: Trim Markings / Water Output
FINISH TILE POSITION Install Drywall and Tile. Ensure finished tile surface is between the min and max marks on the mid guards. TRIM MARKINGS / WATER OUTPUT The below diagram shows the markings on the trim plate and the outputs on the valve. This will help the installation professional to connect the appropriate accessories to the valve output ports www.isenbergfaucets.com... -
Page 7: Using The Supply Stops
USING THE SUPPLY STOPS Turn Clock-wise 7 times to stop water flow. FLUSHING THE VALVE In order to clear dirt in the lines - you must flush the valve before the wall is closed and water is turned on for the first time. 1) Remove the 2 supply stops by turning with a spanner 2) Remove thermostatic cartridge by turning with a spanner 3) Turn on water supply and let water flow removing any dirt in the lines. www.isenbergfaucets.com... -
Page 8: Installing The Trim
INSTALLING THE TRIM - TRIM PLATE SIZE AND SHAPE MAY VARY - ILLUSTRATION ONLY Remove mud guards Install 42mm ring The 42mm ring must be flush. Otherwise the handle A hard push may be required will not fit properly www.isenbergfaucets.com... - Page 9 INSTALLING THE TRIM - TRIM PLATE SIZE AND SHAPE MAY VARY - ILLUSTRATION ONLY Align Trim plate till it is straight Insert trim plate Insert adaptor base and tighten Insert centering knob & screws www.isenbergfaucets.com...
- Page 10 INSTALLING THE TRIM - TRIM PLATE SIZE AND SHAPE MAY VARY - ILLUSTRATION ONLY Insert diverter handle. Tighten hex screw & insert Remove anti-scald temperature ring cover button. Make sure the diverter is set to the “o” marking before your begin Caliberate cartridge before inserting temperature Caliberate cartridge before inserting temperature Correctly re-insert anti-scald temperature ring in the handle. Red marks must align. handle. Red marks must align. right position www.isenbergfaucets.com...
- Page 11 INSTALLING THE TRIM - TRIM PLATE SIZE AND SHAPE MAY VARY - ILLUSTRATION ONLY This photo shows a completely installed trim Insert temperature handle. Tighten hex screw & insert cover button The button on the temperature handle is an anti scald feature. In order to rotate the handle further to “HOT” the button must be pressed www.isenbergfaucets.com...
-
Page 12: Replacing The Thermostatic Cartridge
REPLACING THE THERMOSTATIC CARTRIDGE 1. Remove Anti-Scald Ring 2. The temperature cartridge can be removed easily in one operation by using a spanner. 1. Remove Threaded Rod using a spanner 2. Remove diverter flange 3. Remove cartridge by turning with a span- ner and pulling out with a pair of pliers. REPLACING THE DIVERTER CARTRIDGE www.isenbergfaucets.com... -
Page 13: Replacing Supply Stops
REPLACING THE VOLUME CARTRIDGE 1. Remove Threaded Rod using a spanner 2. Remove cartridge by turning with a span- ner and pulling out with a pair of pliers. REPLACING THE SUPPLY STOPS In order to remove the supply stops do not twist the Use a spanner to twist in the shown position and screw in the middle of the supply stop remove supply stop www.isenbergfaucets.com... -
Page 14: Installing The Extension Kit
INSTALLING EXTENSIONS TO THE VALVE - OPTIONAL Install diverter extension kit - 3 Pieces as shown Remove anti scald temperature ring above. Then install volume extension kit Install temperature extension piece as shown above. Tighten Screw www.isenbergfaucets.com... -
Page 15: Cartridge Maintenance
CARTRIDGE CLEANING & MAINTENANCE Thermostatic Cartridge: Clean Filters Check For Dirt Inspect O-rings Diverter Cartridge: Inspect Rubber Seal Check For Dirt Check For Dirt Volume Control Cartridge: Check For Dirt www.isenbergfaucets.com...
